Description

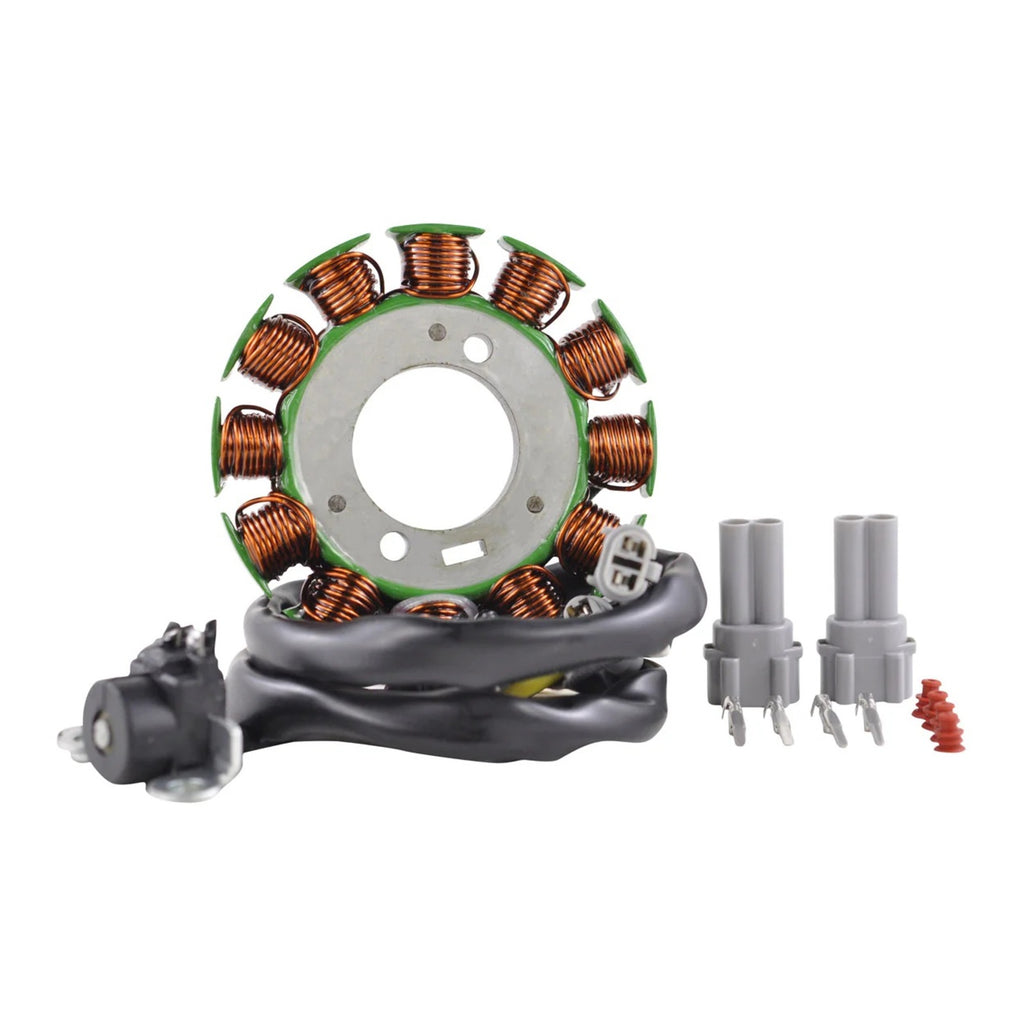

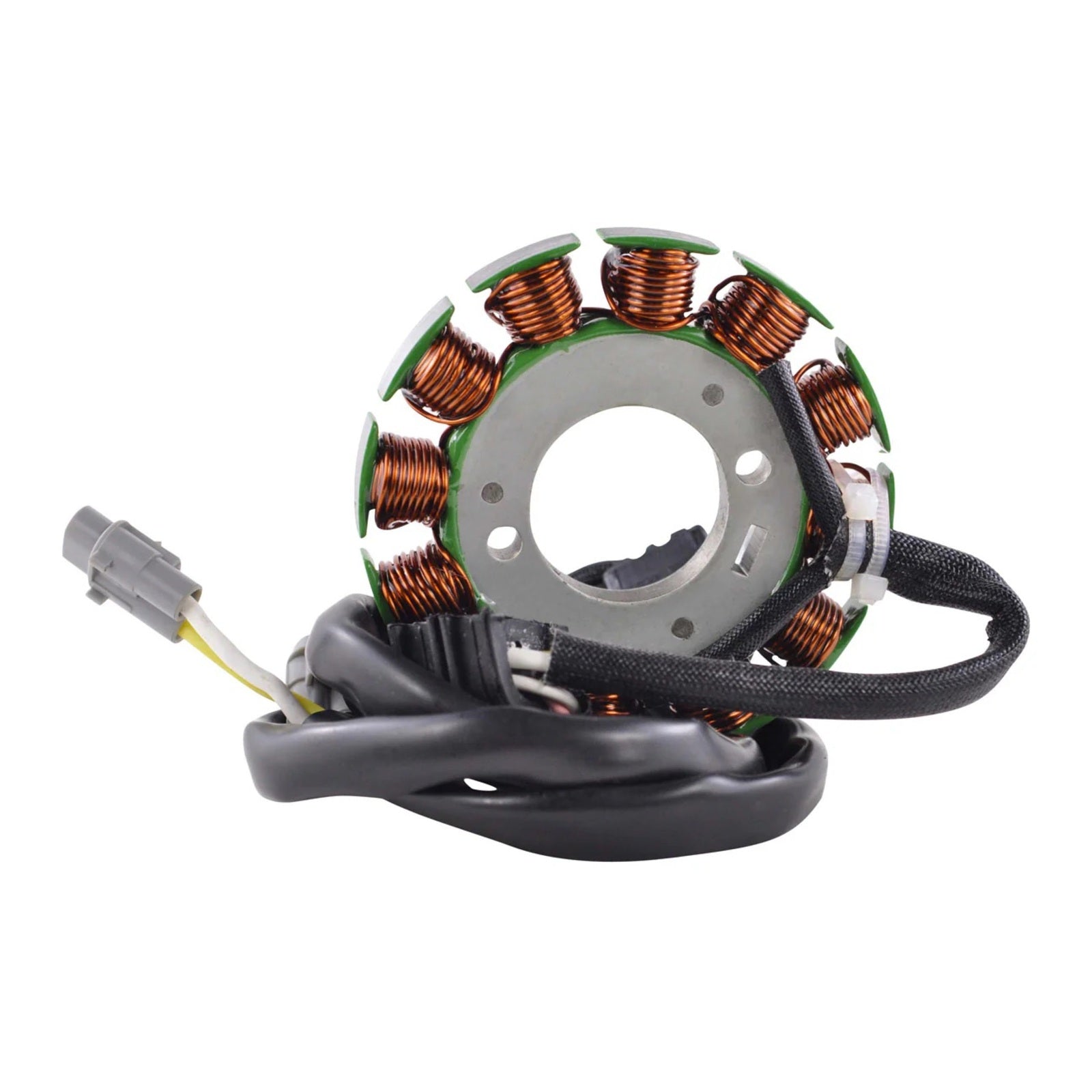

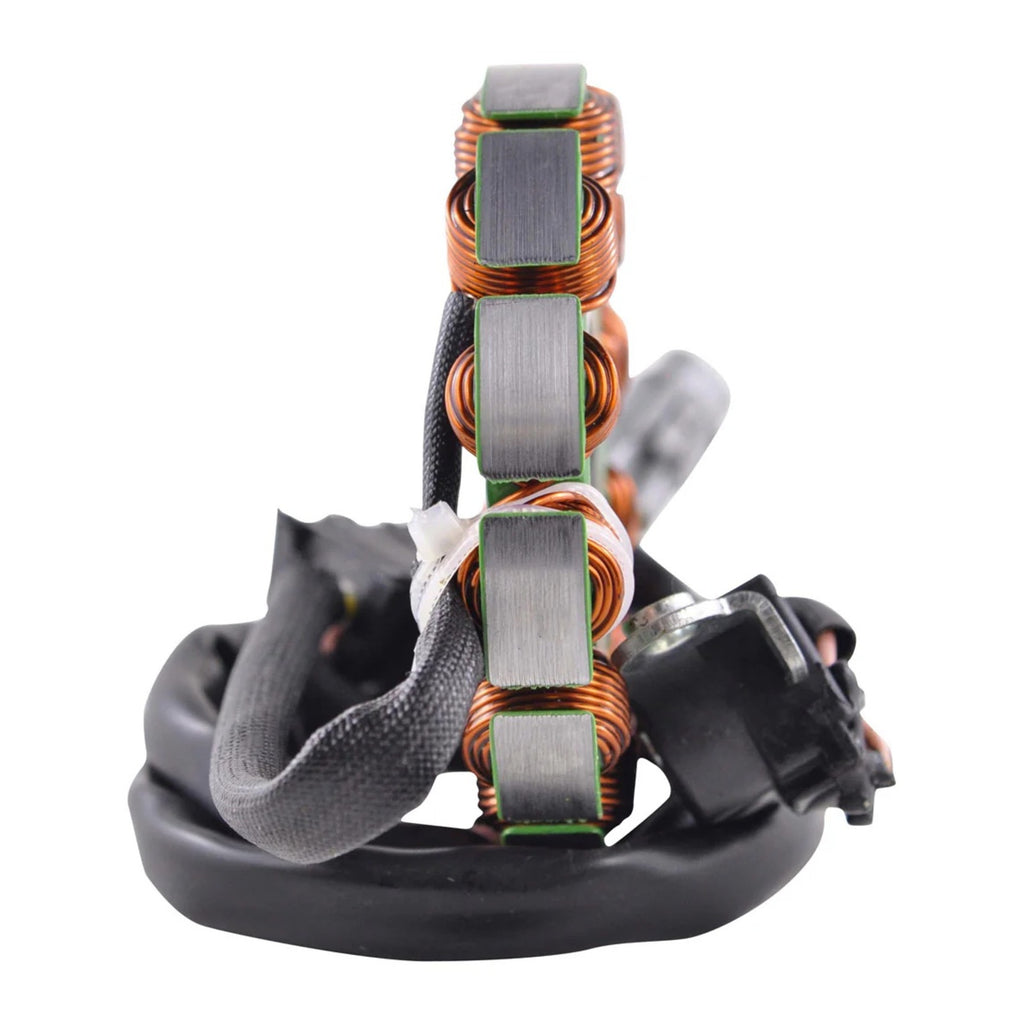

Brand new aftermarket stator.
Features:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials.
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included.

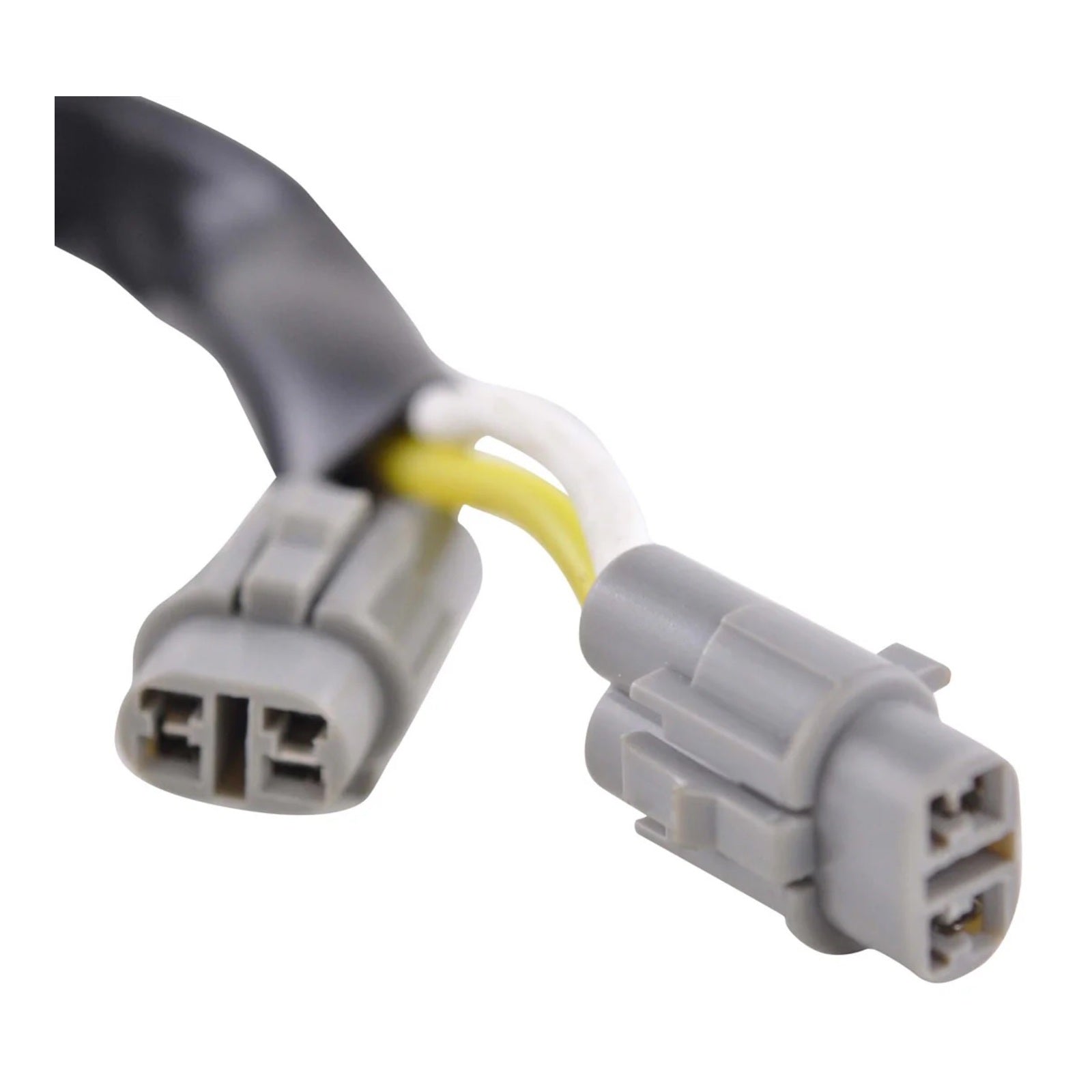

- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Specifications:
- Interior diameter: 30 mm
- Exterior diameter: 84 mm
- Thickness: 9 mm
- Length of wires stator to grommet: 110 mm
- Length of wires grommet to plug: 545 mm
- Length of pickup coil's wire to grommet: 90 mm
Other specifications
- Number of wires: 4
- Number of plugs: 2
Wire-to-wire resistance
- Alternator : Yellow To White = 0.4 ohms +/-20%
- Pickup : Pink To White = 280 ohms +/-20%
