Description

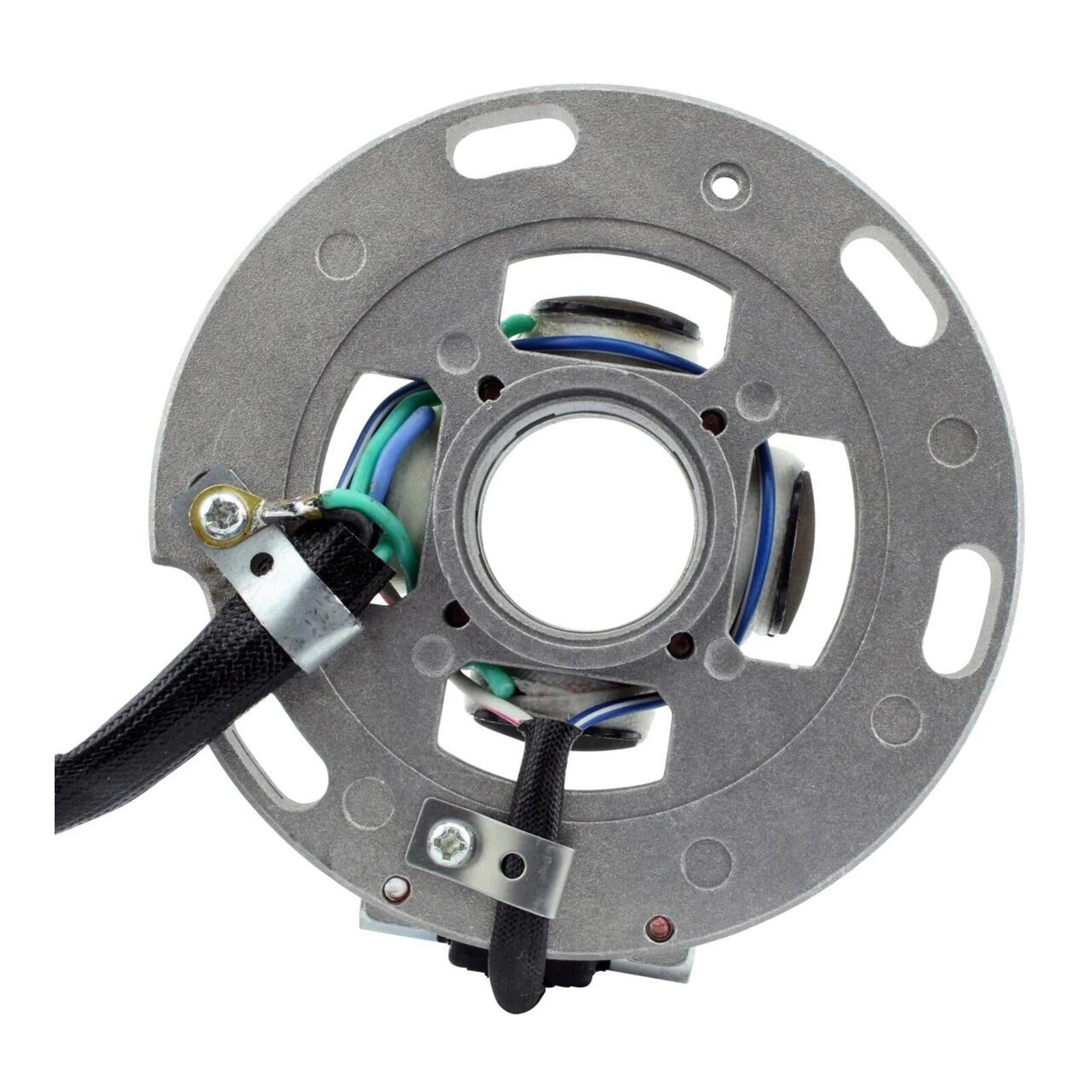

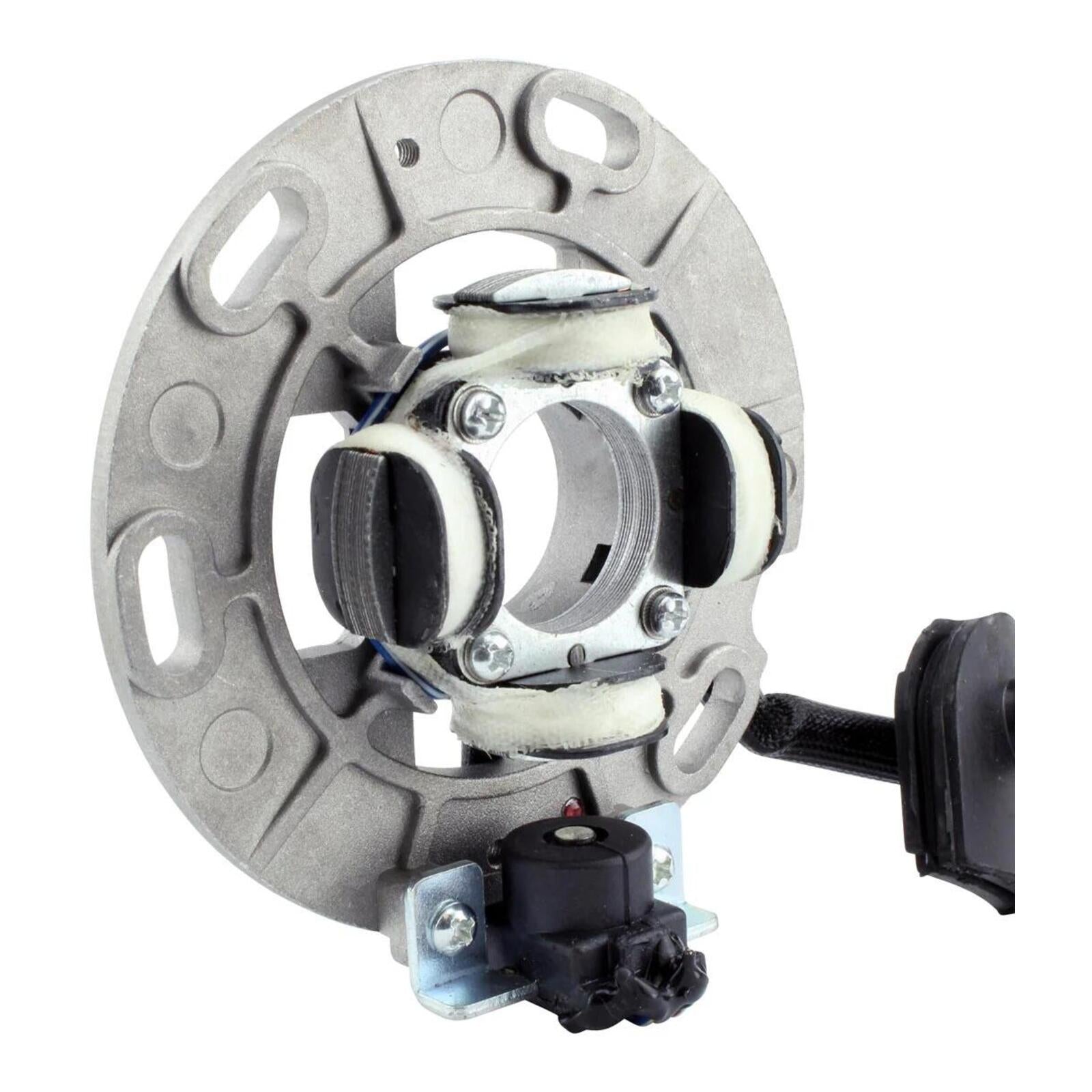

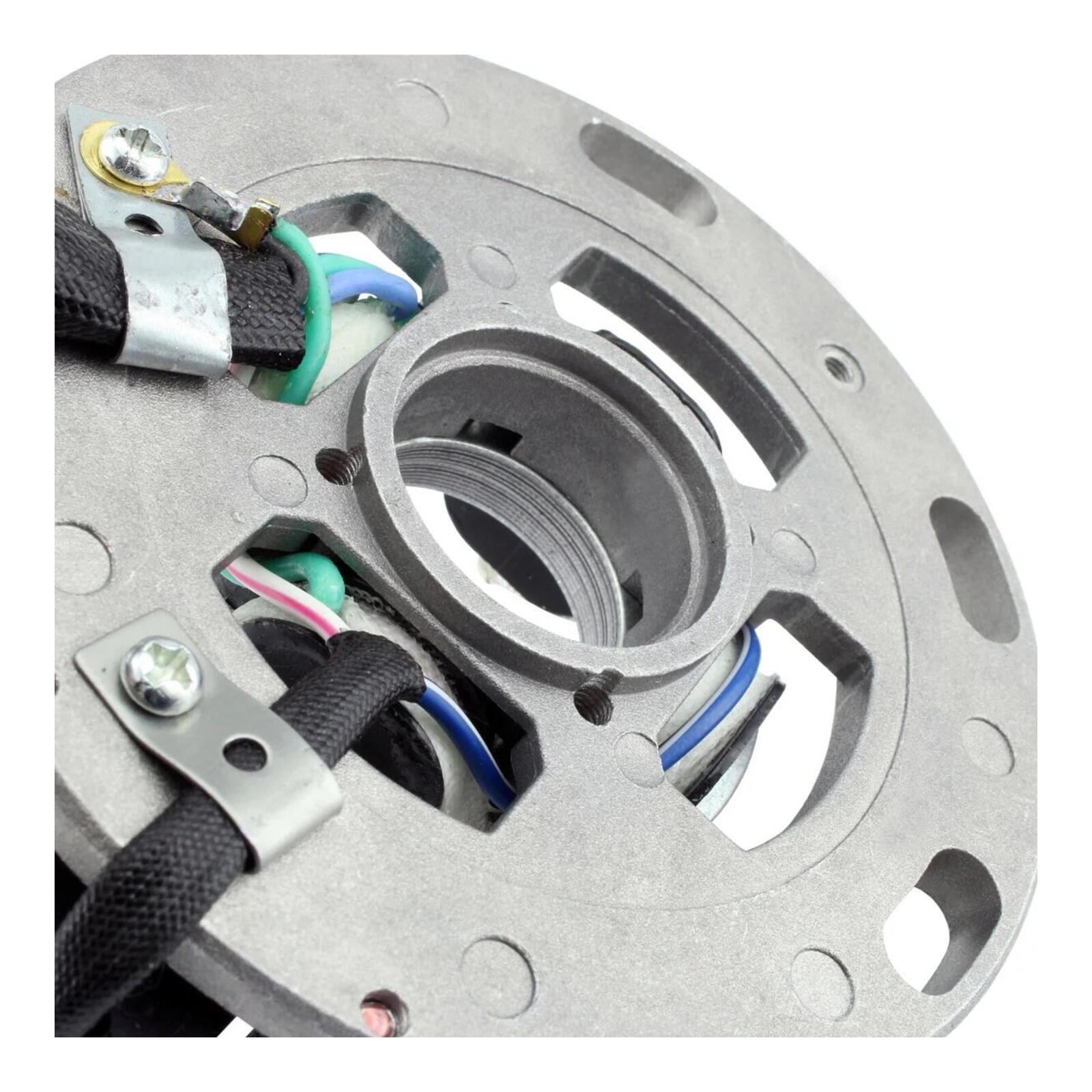

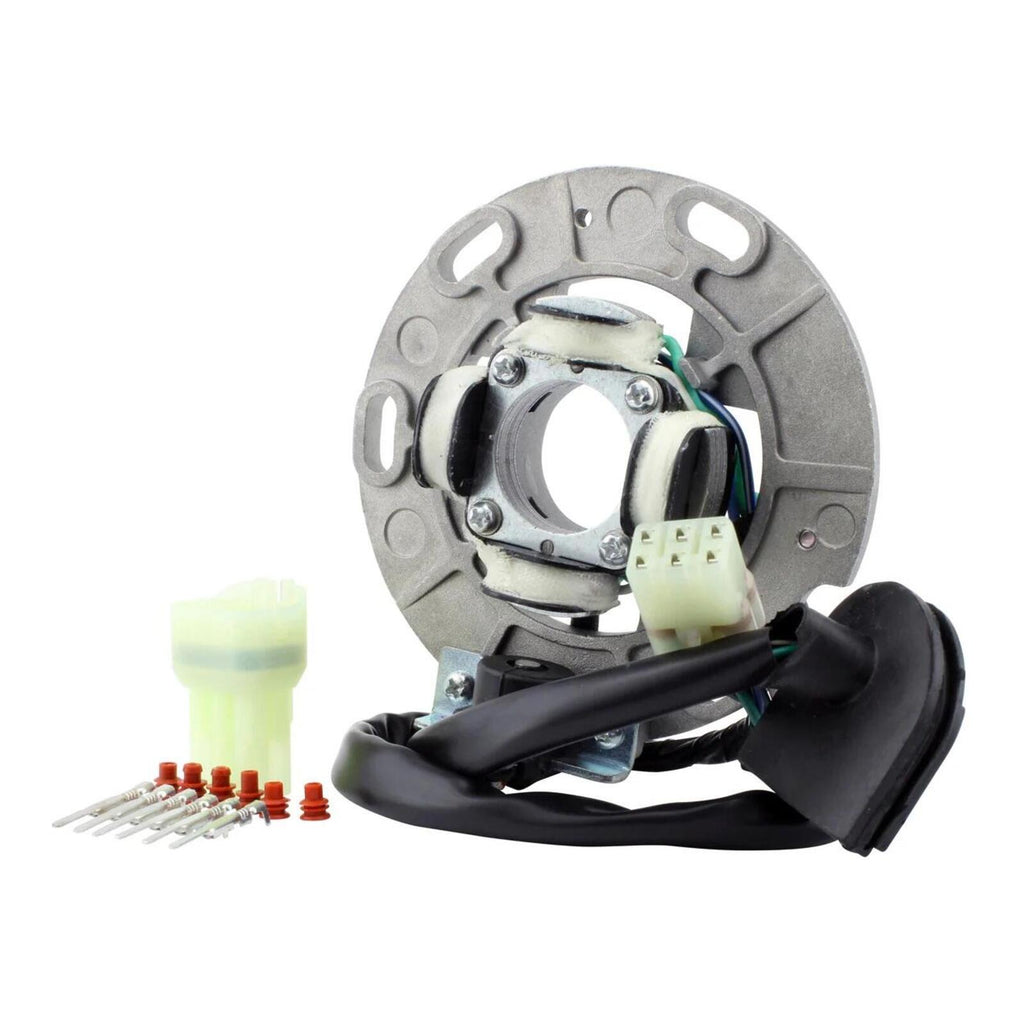

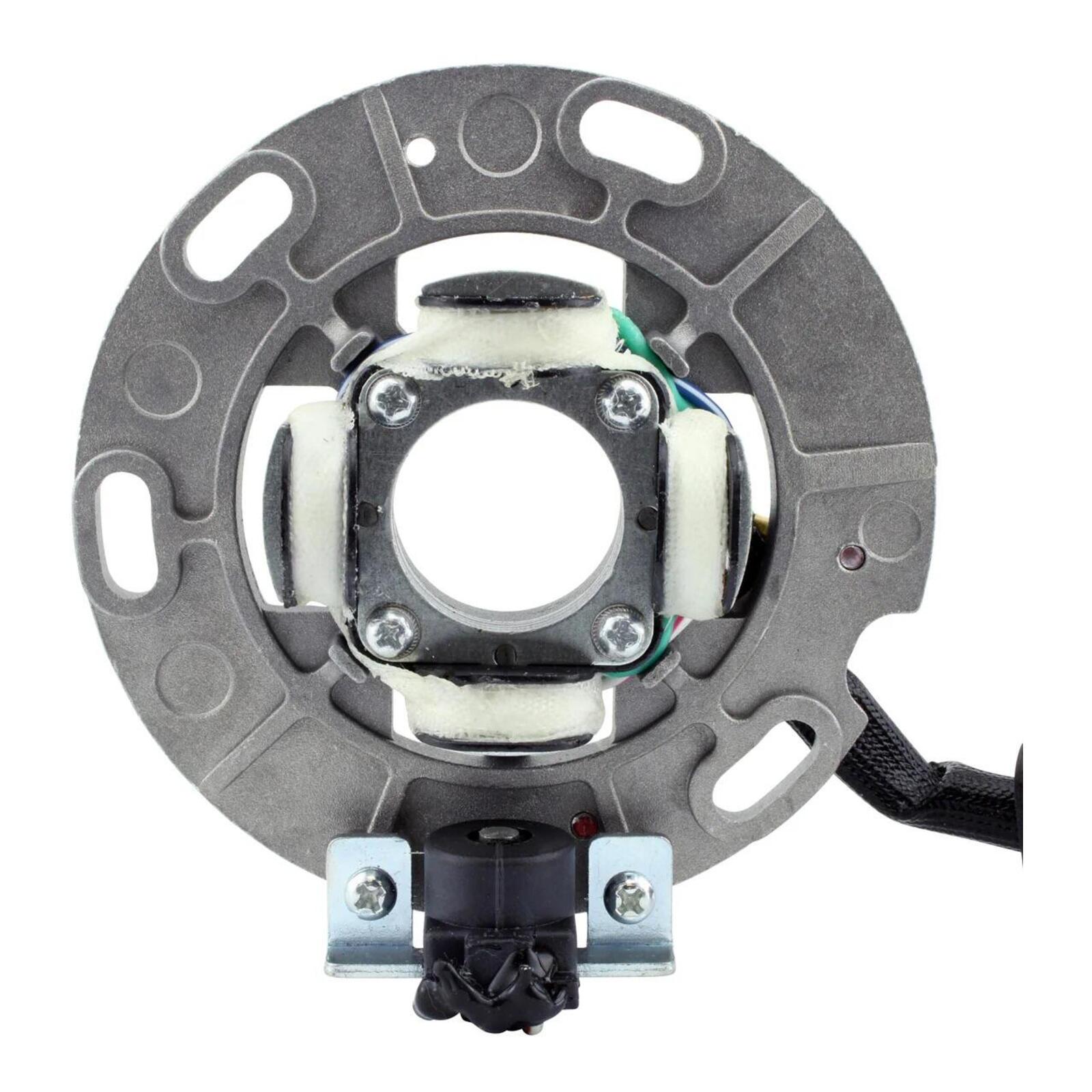

Brand new aftermarket Stator.
Features:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.

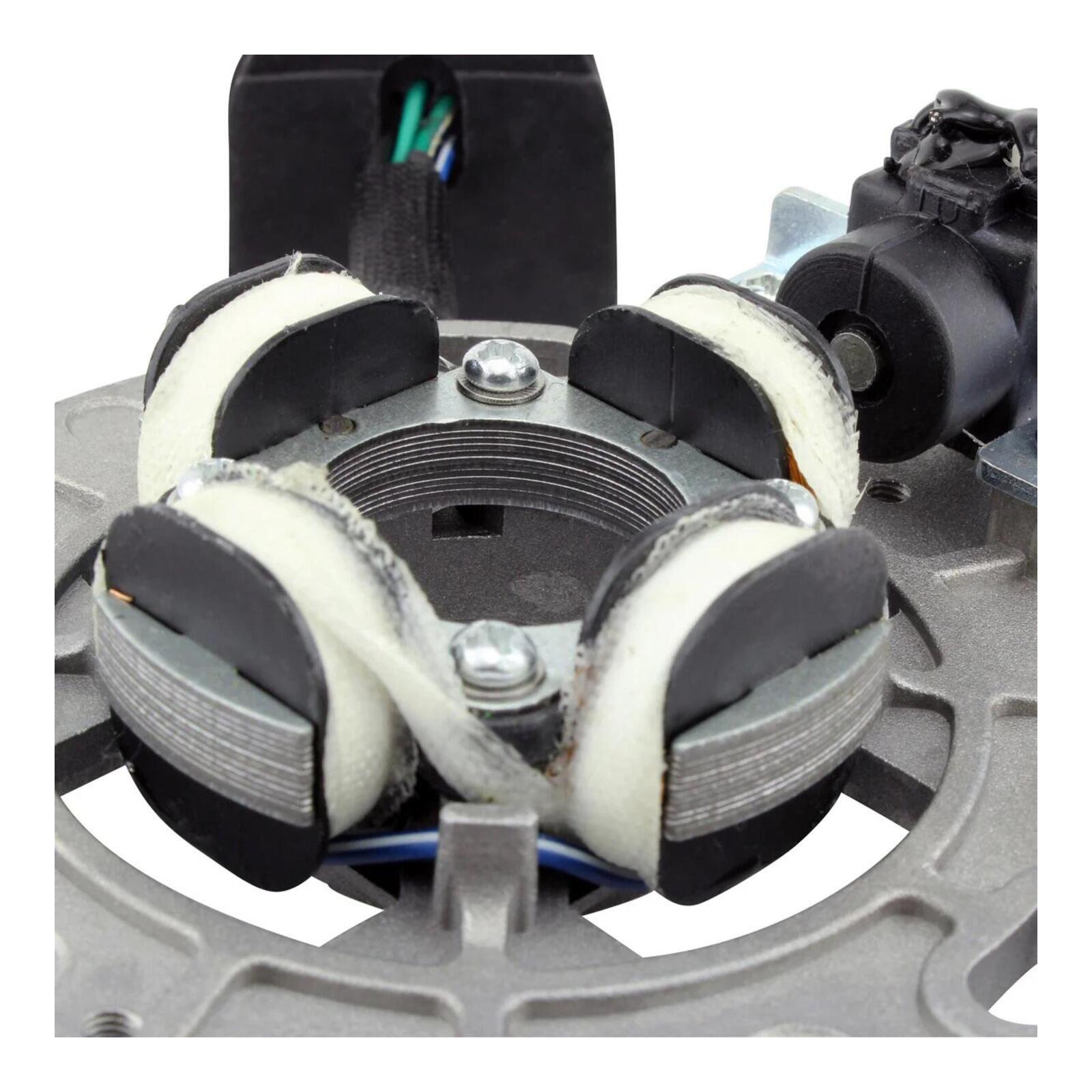

- Highest grade of lamination materials.
- Highest grade of copper windings, resistant to 200 degrees Celsius.

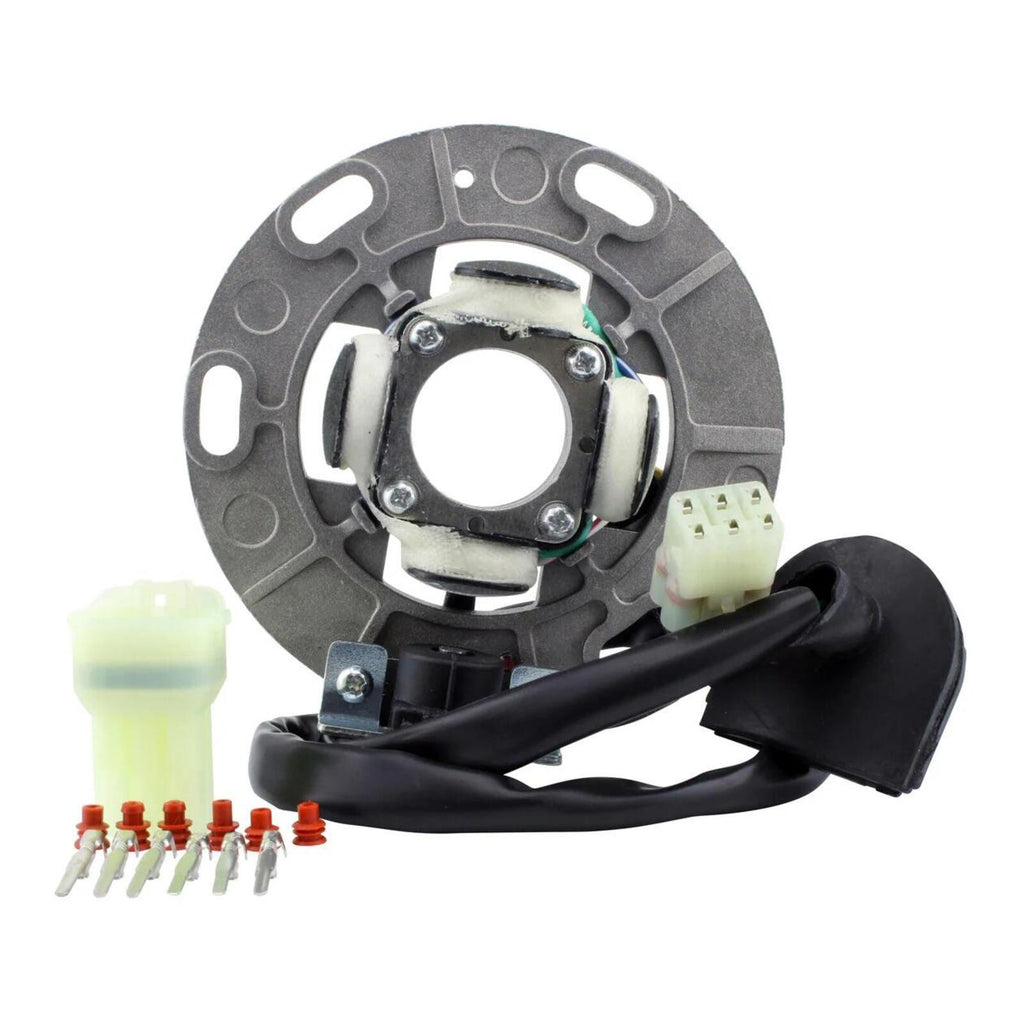

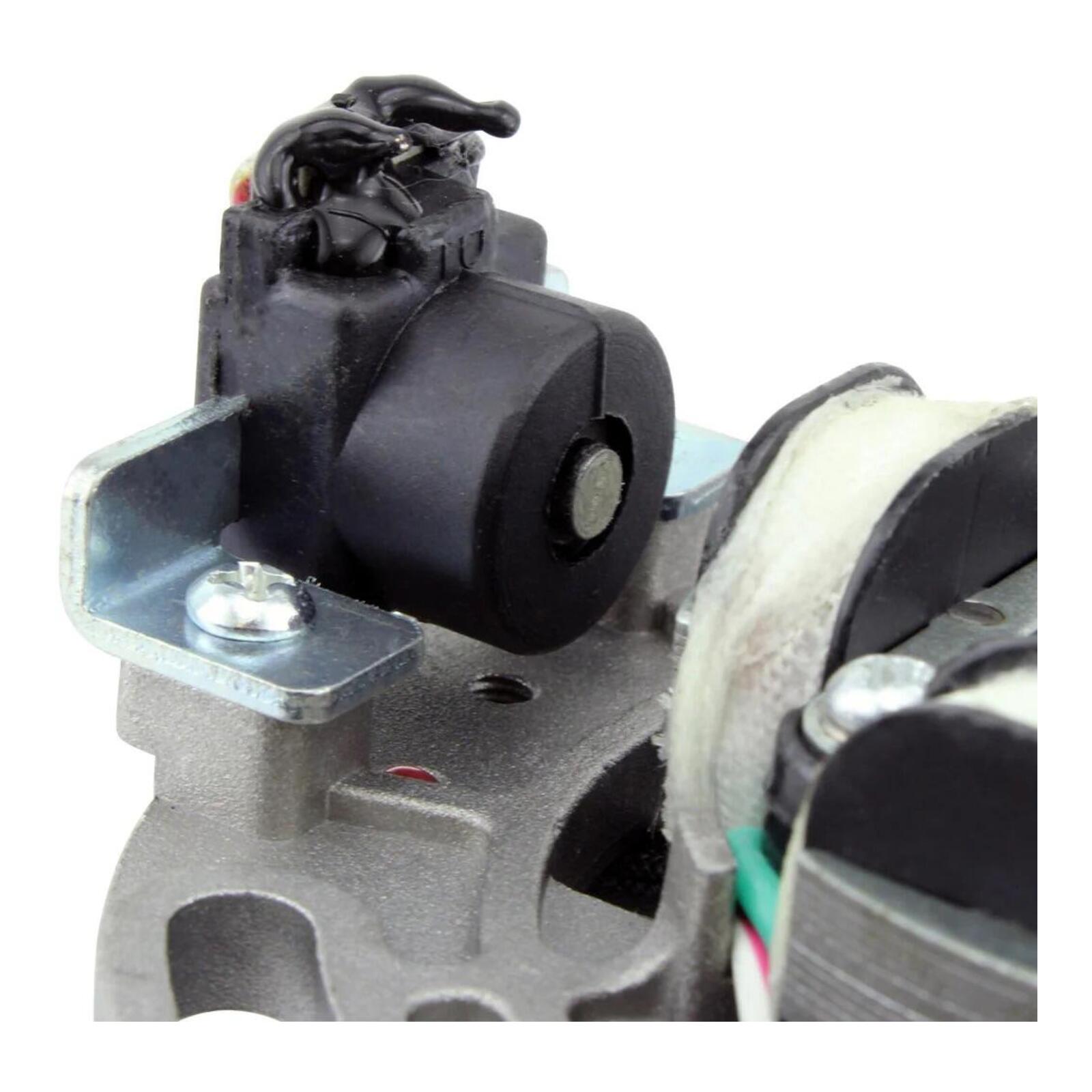

- Pick up pulsar coil included.

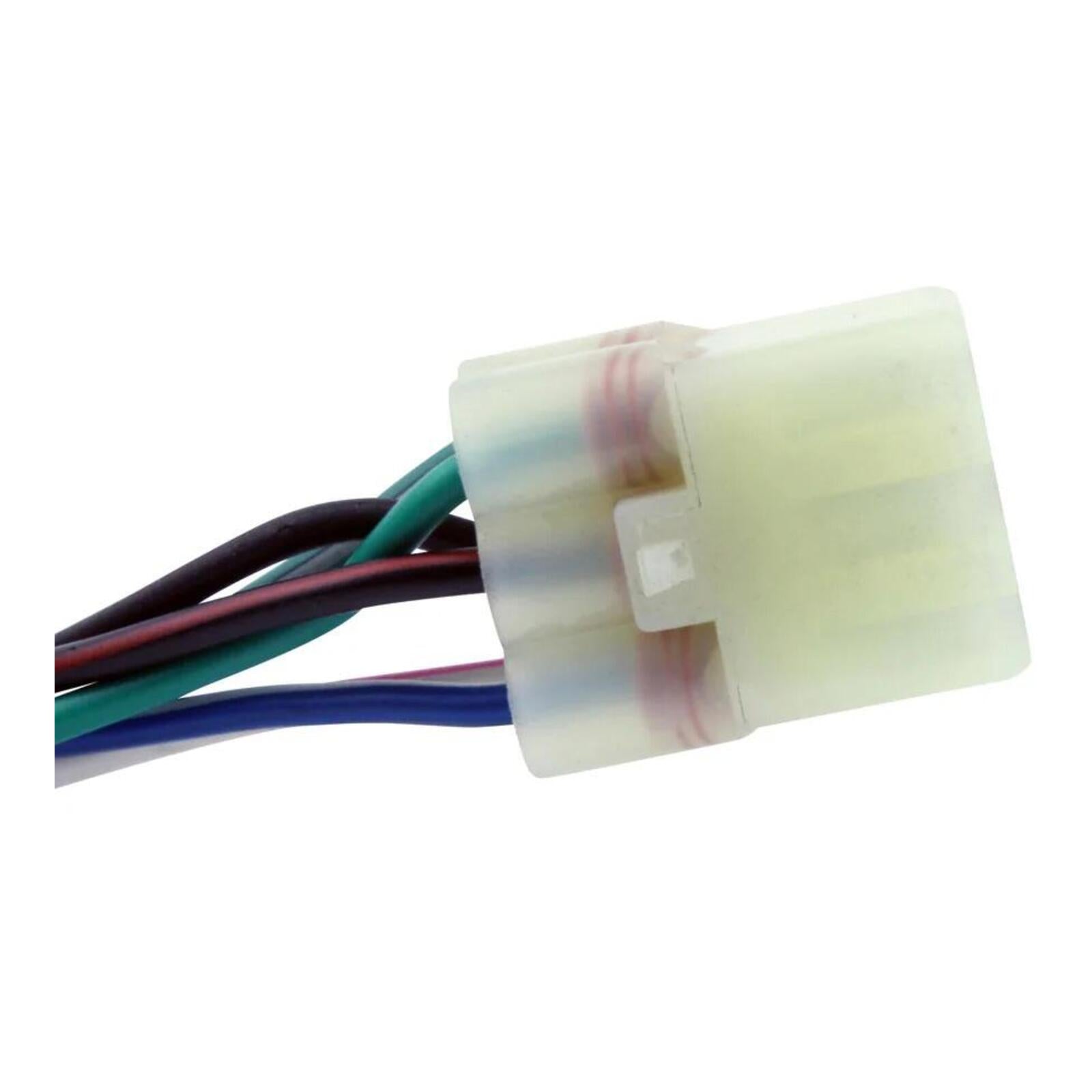

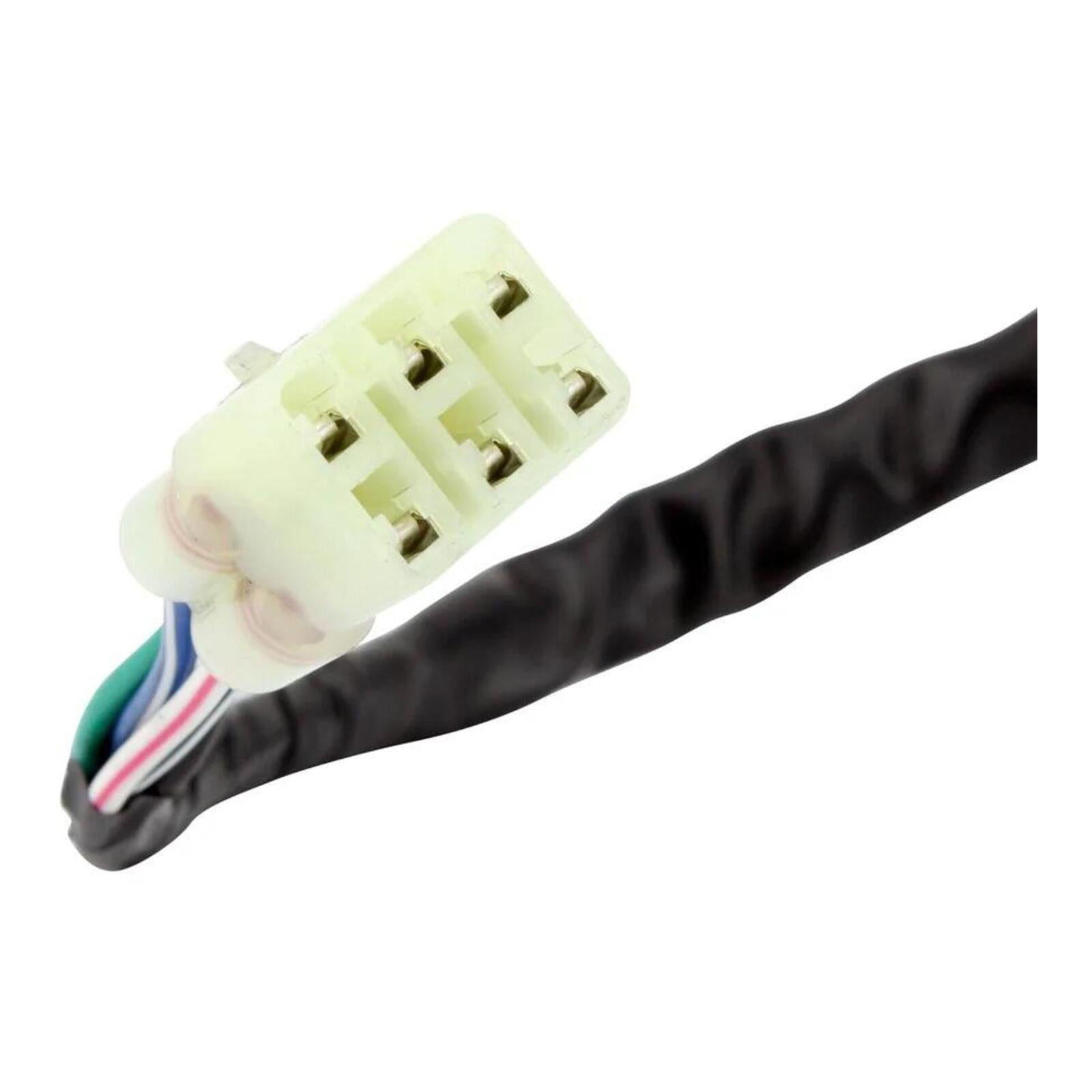

- Connector included.

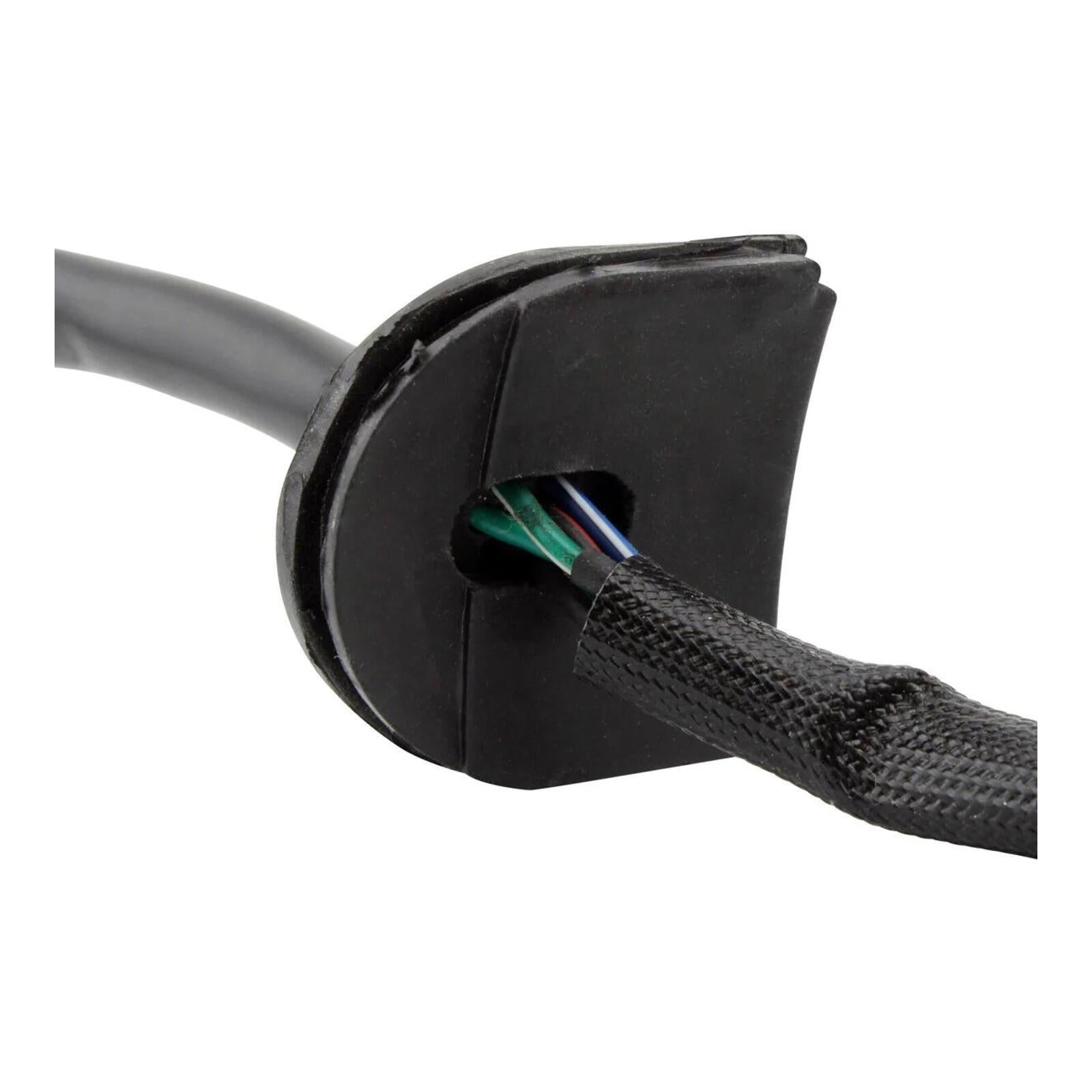

- Rubber grommet included.
- All products shipped are tested.

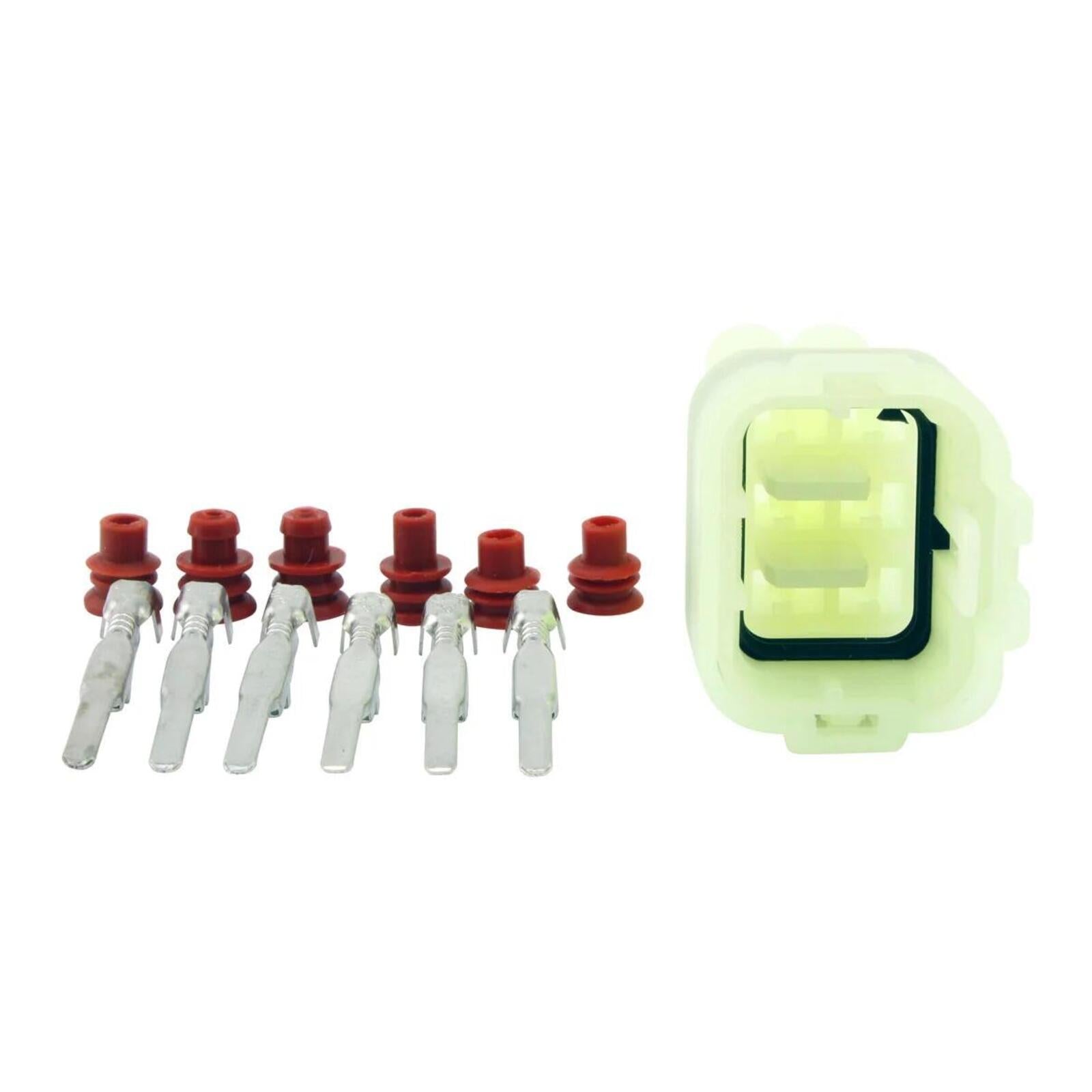

We have even included the opposite connector (main harness side), as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.
Specifications:
Dimensions :
- Interior diameter: 28mm
- Exterior diameter: 59.30mm
- Thickness: 33mm
- Length of wires stator to grommet: 32mm
- Length of wires grommet to plug: 320mm
Other specifications :
- Number of wires: 6
- Number of plugs: 1
- Number of pins: 6
- Number of poles: 4
- Pickup: White/Blue to White/Red = 285 ohms +-20%
- Source #1: Green/White to Green = 54 ohms +-20%
- Source #2: Black/Red to Black = 875 ohms +-20%
