Description

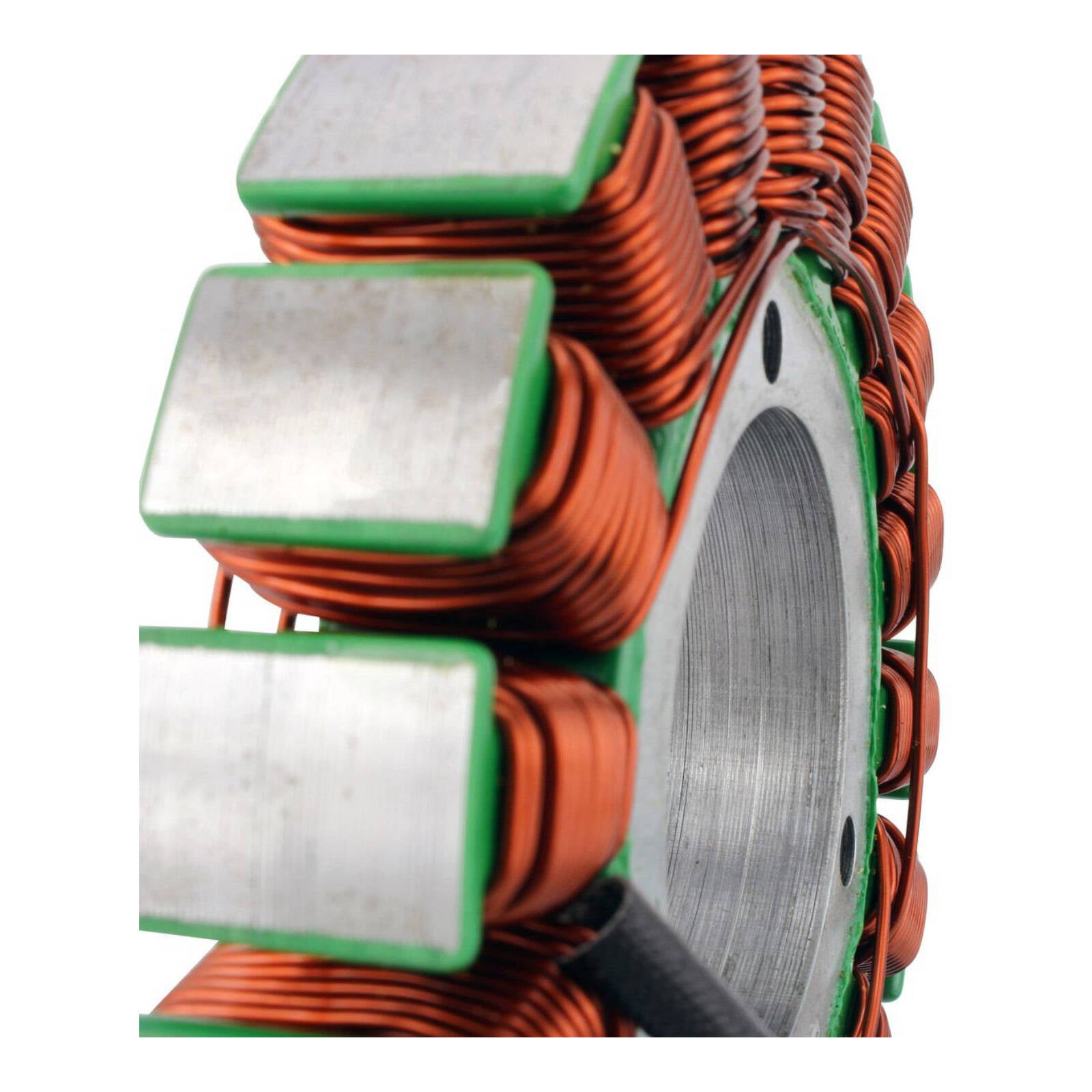

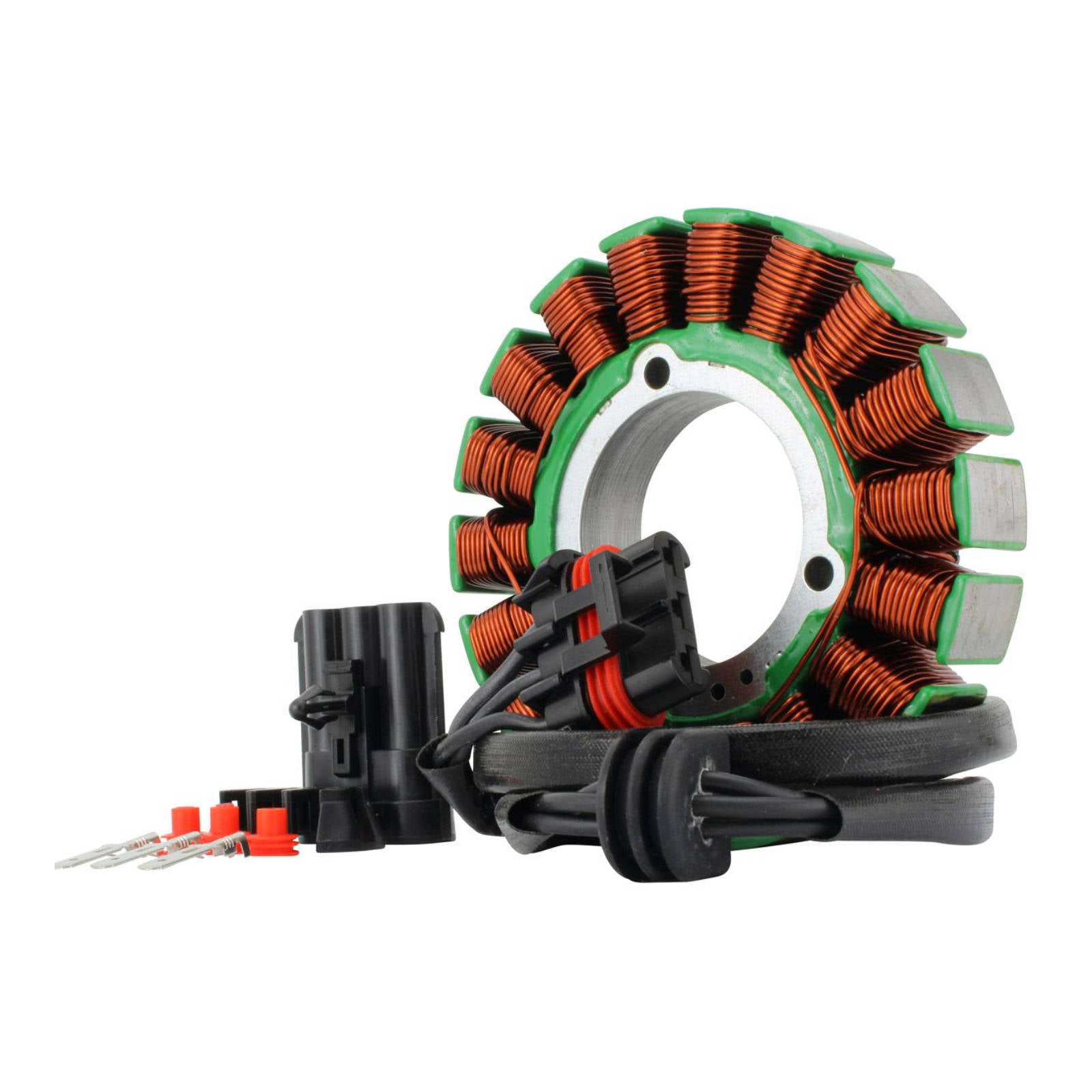

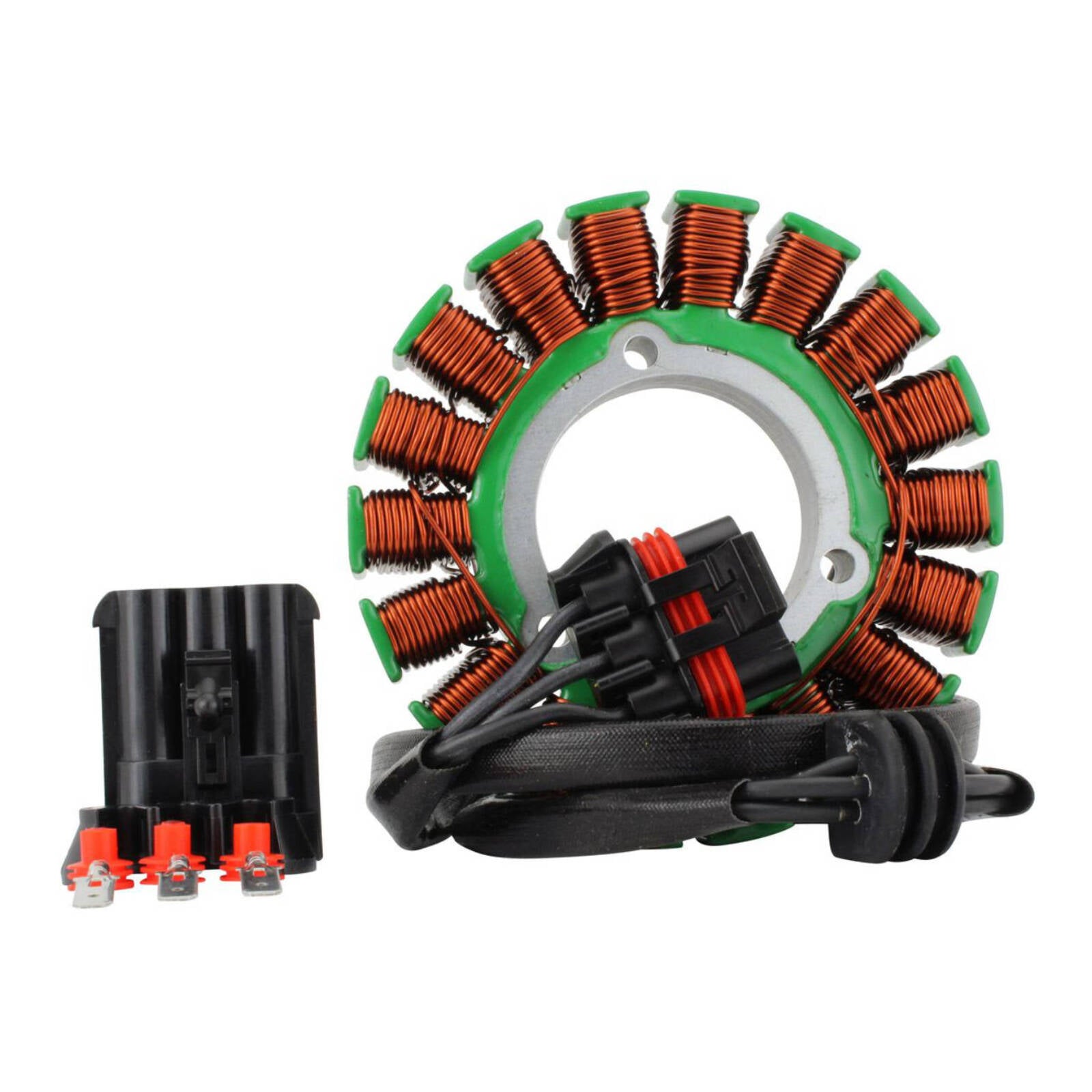

Plug-and-play replacement stator from RM Stator.
Dimensions:
- Interior diameter: 54 mm
- Exterior diameter: 126 mm
- Thickness: 21 mm
- Length of wires stator to grommet: 120 mm
- Length of wires grommet to plug: 680 mm
Other specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of pins:3
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Between each Yellow = 0.6 ohms +-20%
- Alternator: to ground = O.L
Details:
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
- All products shipped are tested
