Description

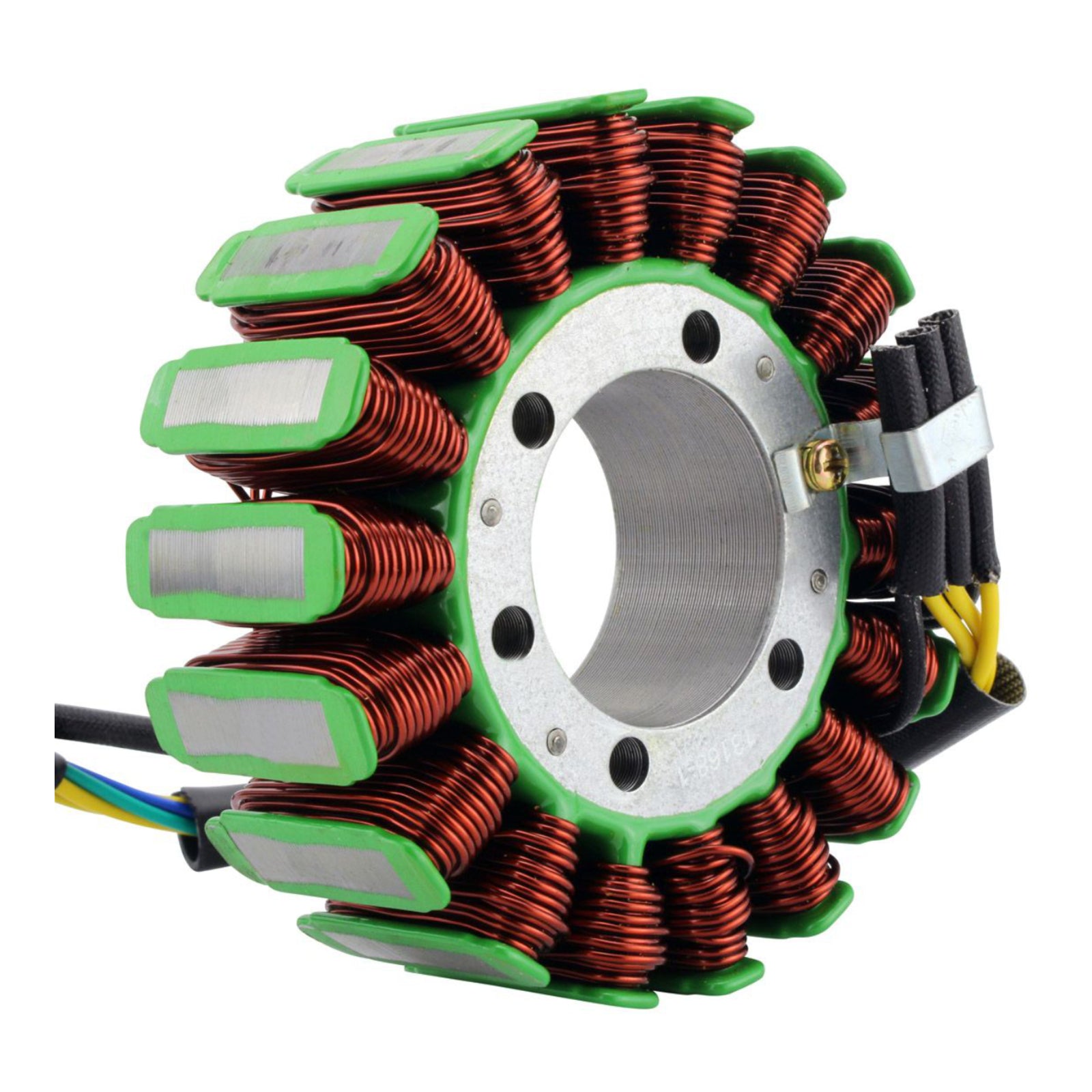

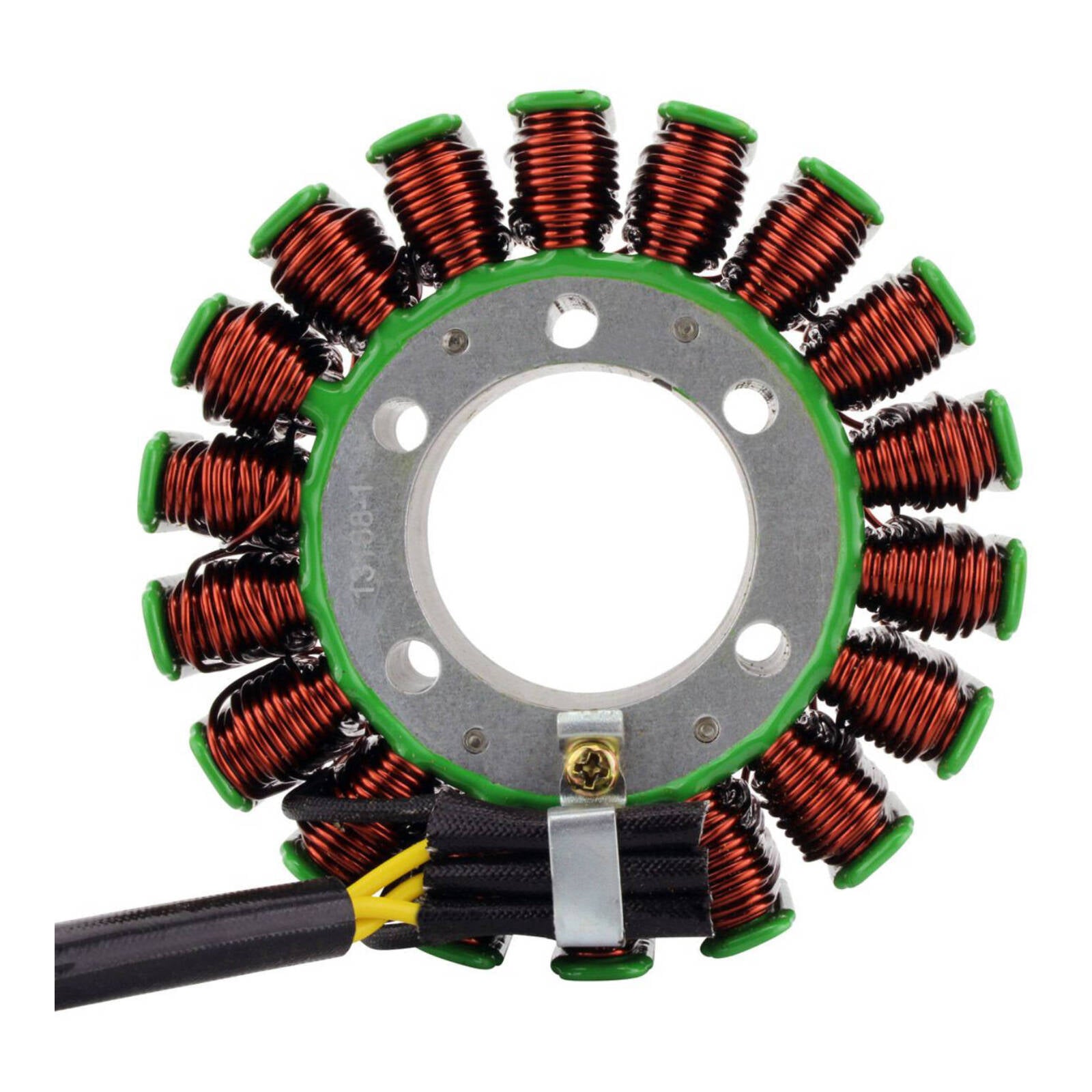

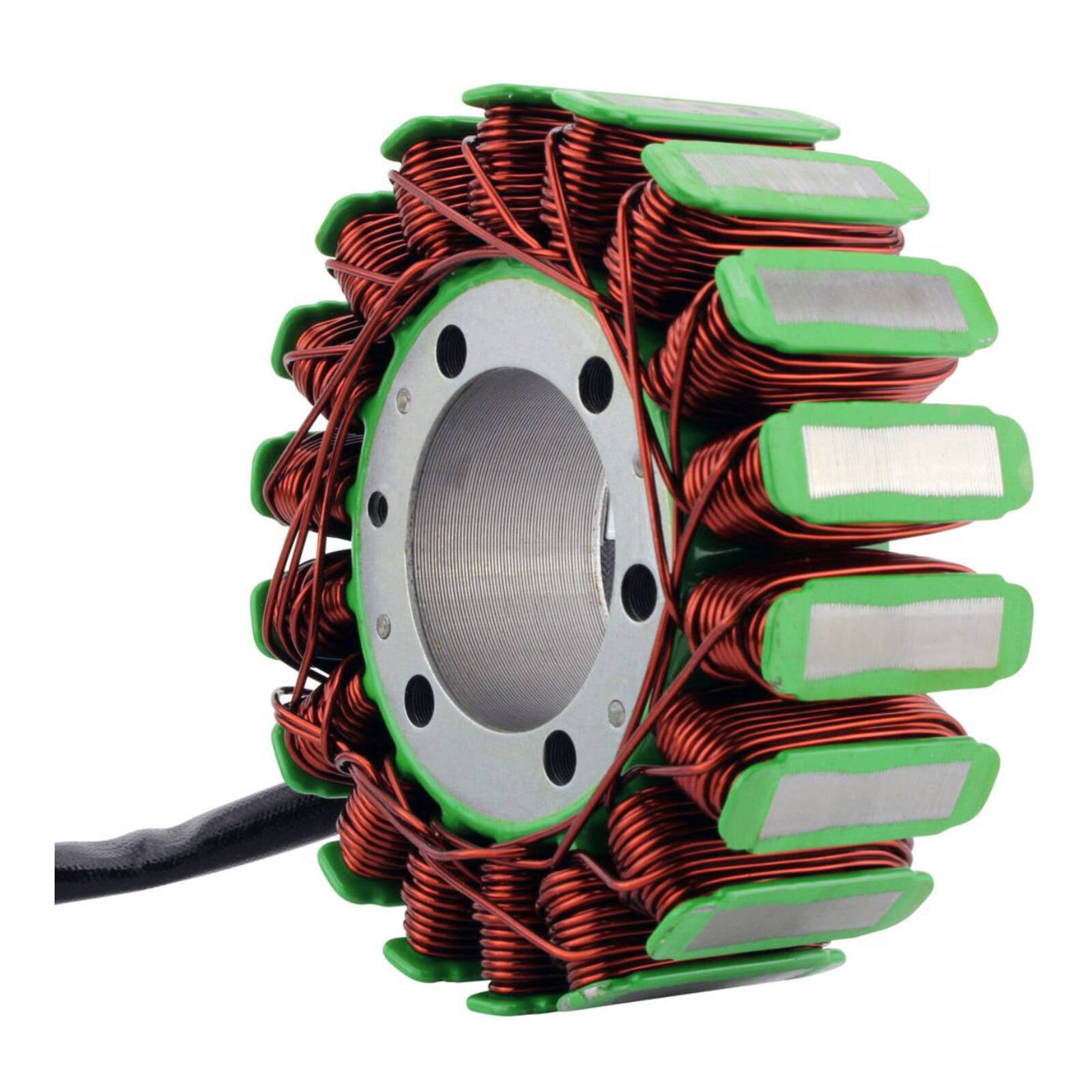

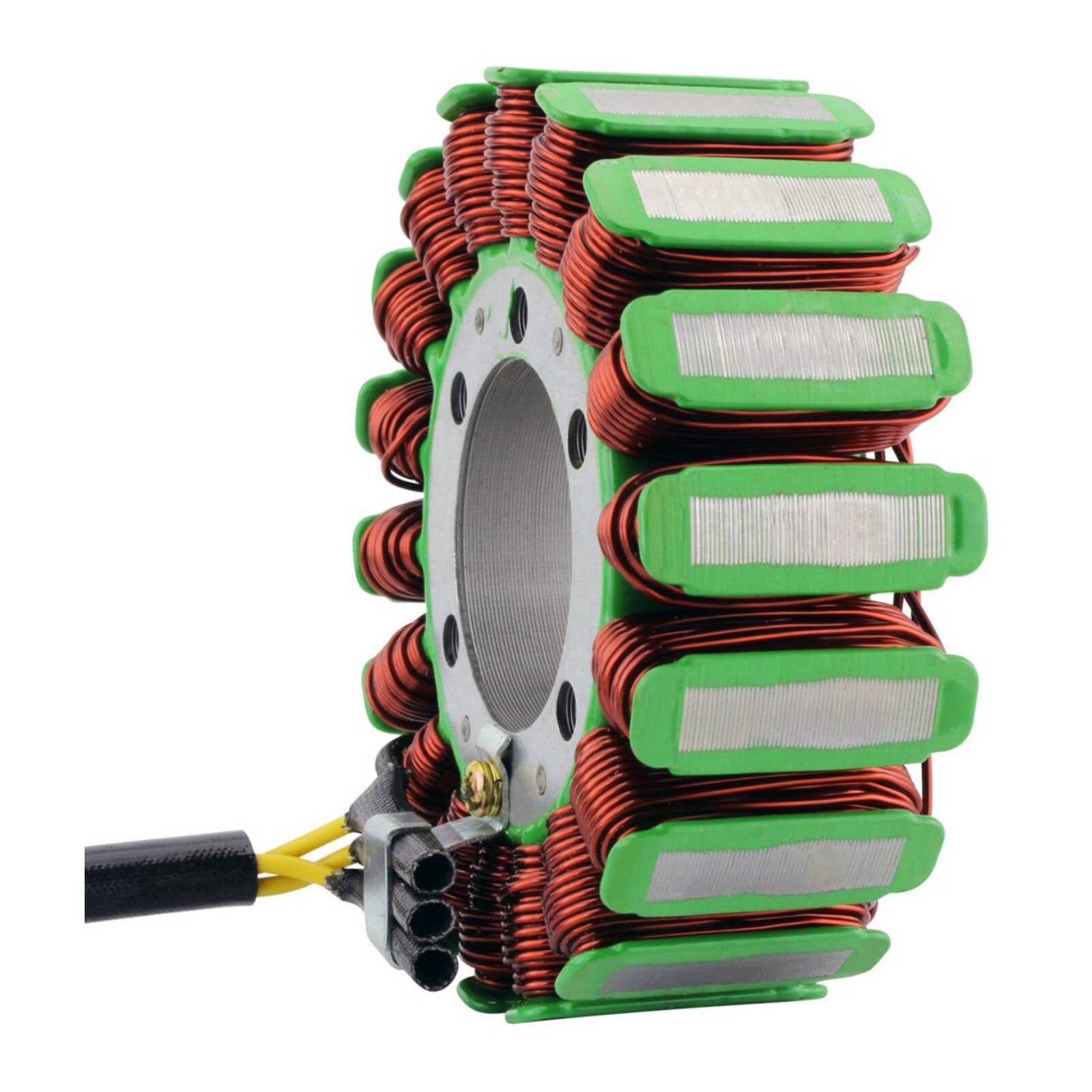

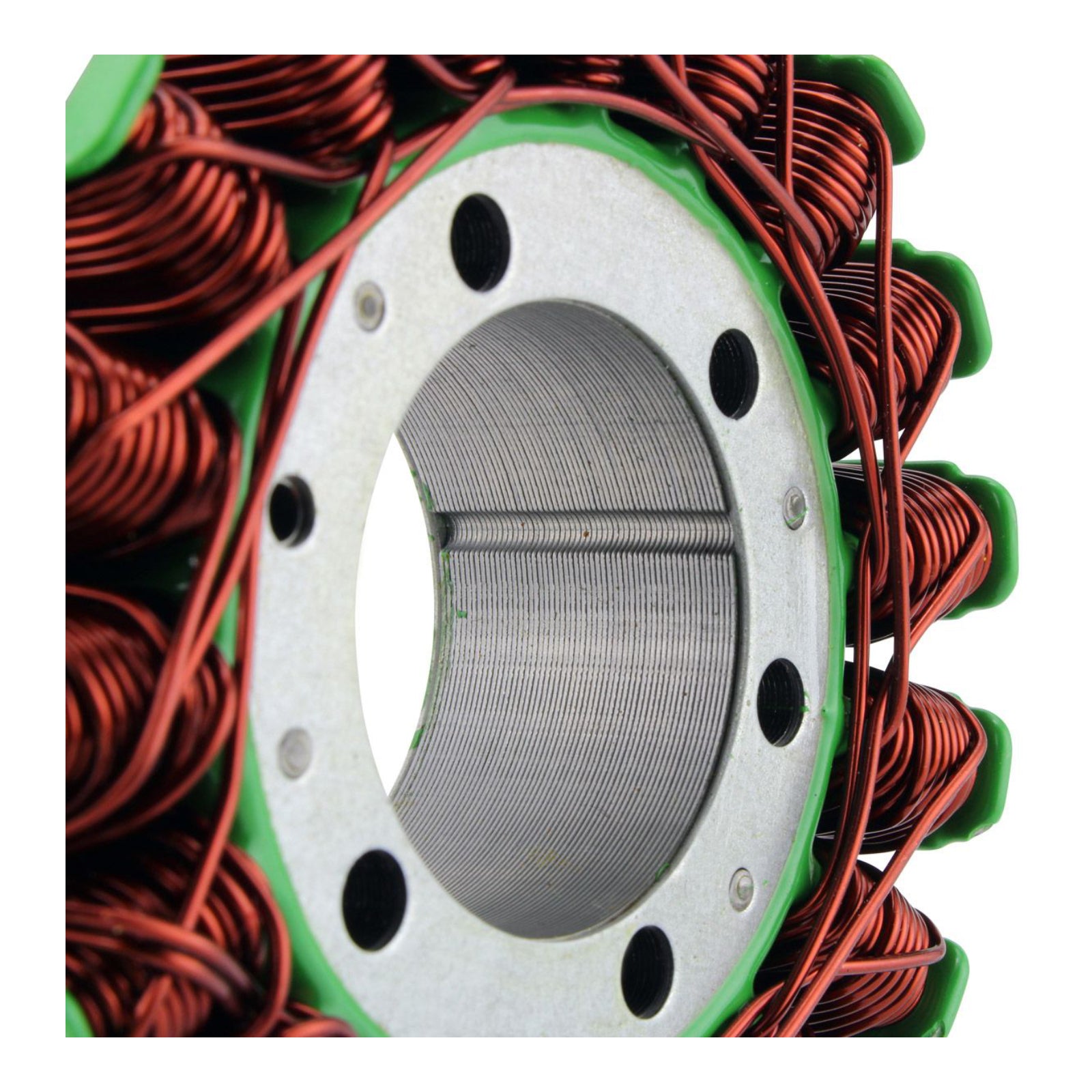

Plug-and-play replacement stator from RM Stator.
Dimensions:
- Interior diameter: 42 mm
- Exterior diameter: 107 mm
- Thickness: 31 mm
- Length of wires stator to grommet: 120 mm
- Length of wires grommet to plug #1: 335 mm
- Length of wires grommet to plug #2: 855 mm
- Length of pickup coil's wire to grommet: 85 mm
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Between each Yellow = 0.6 ohms +-20%
- Pickup: Blue to Green = 235 ohms +-20%
Details:
- < li>Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

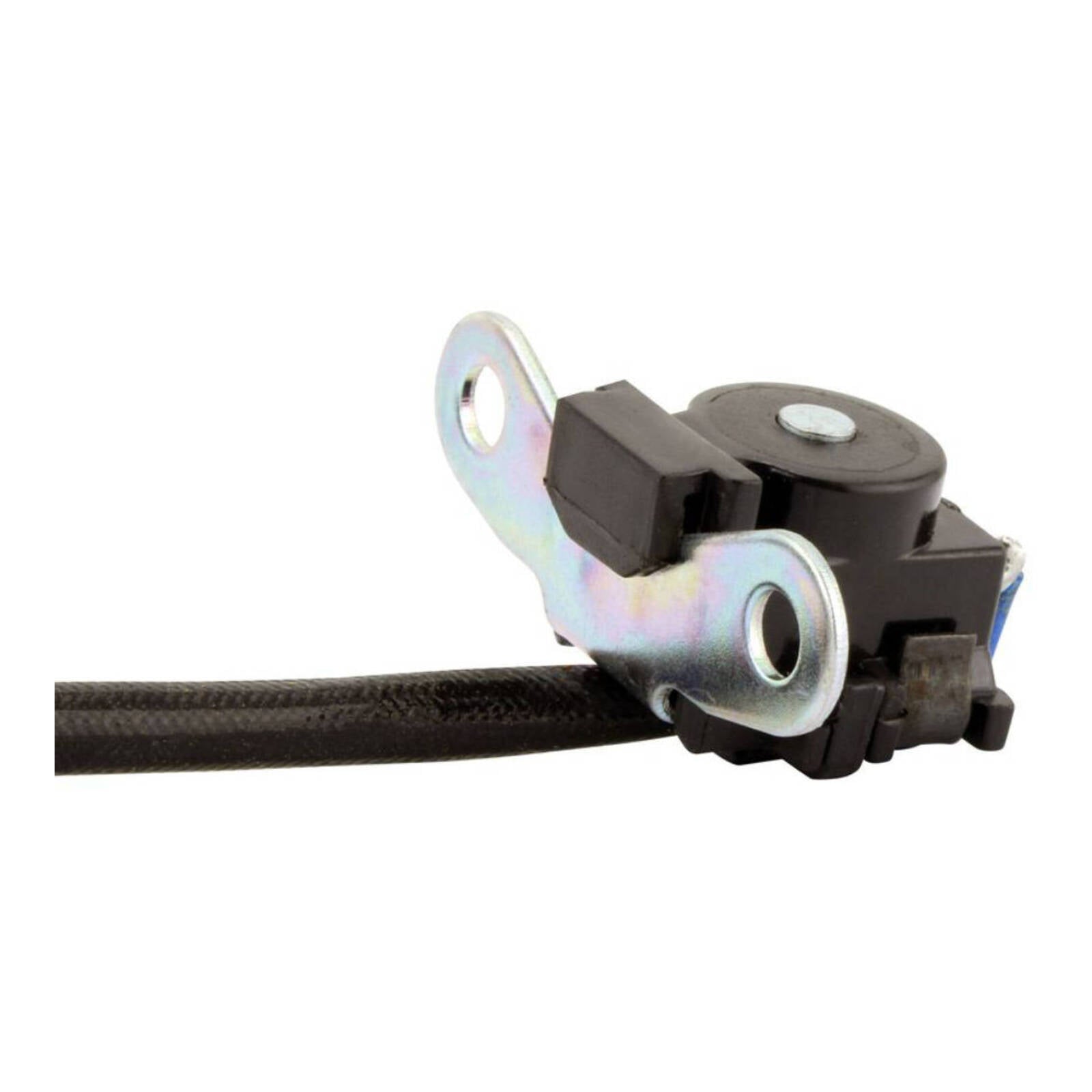

- Pick up pulsar coil included

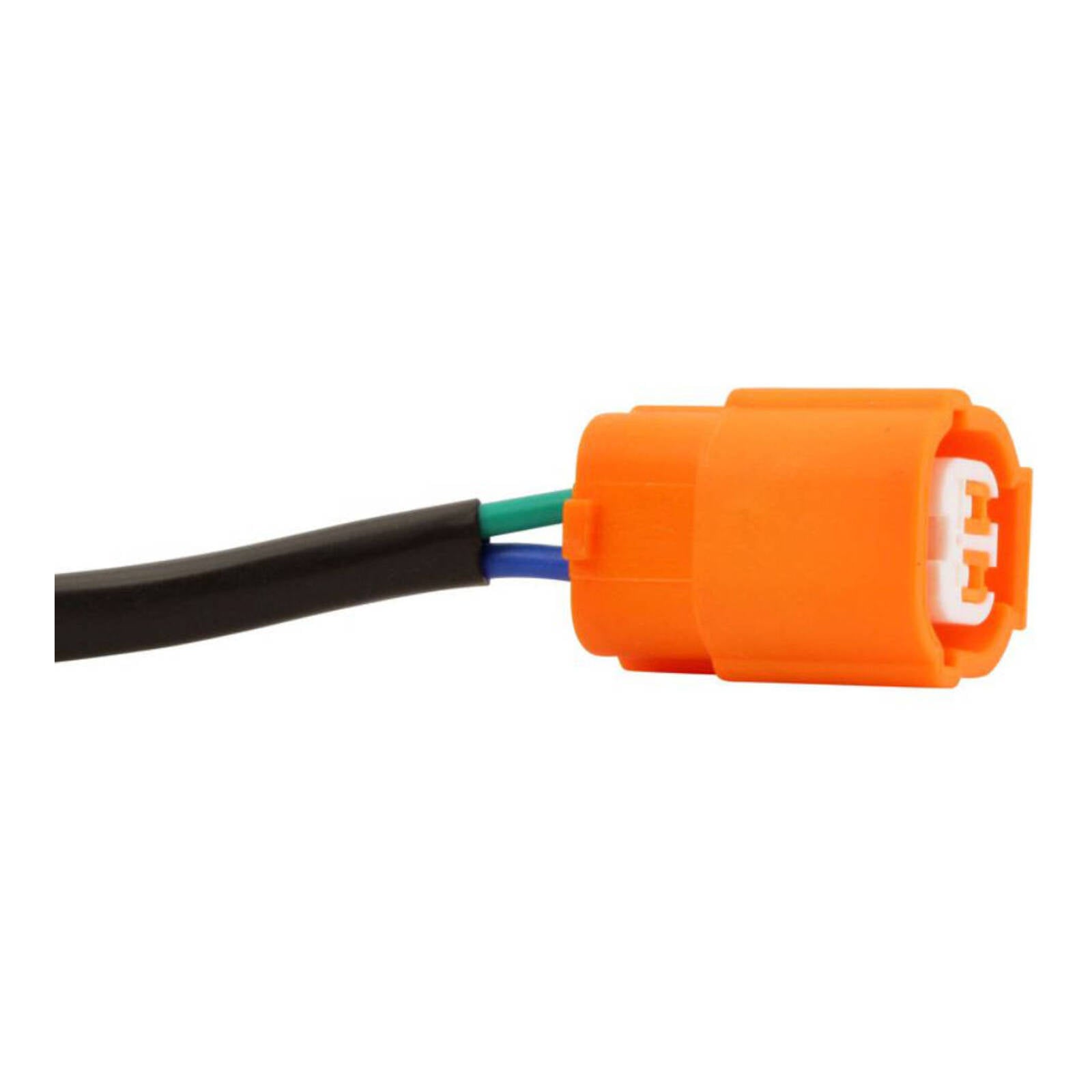

- Connectors included

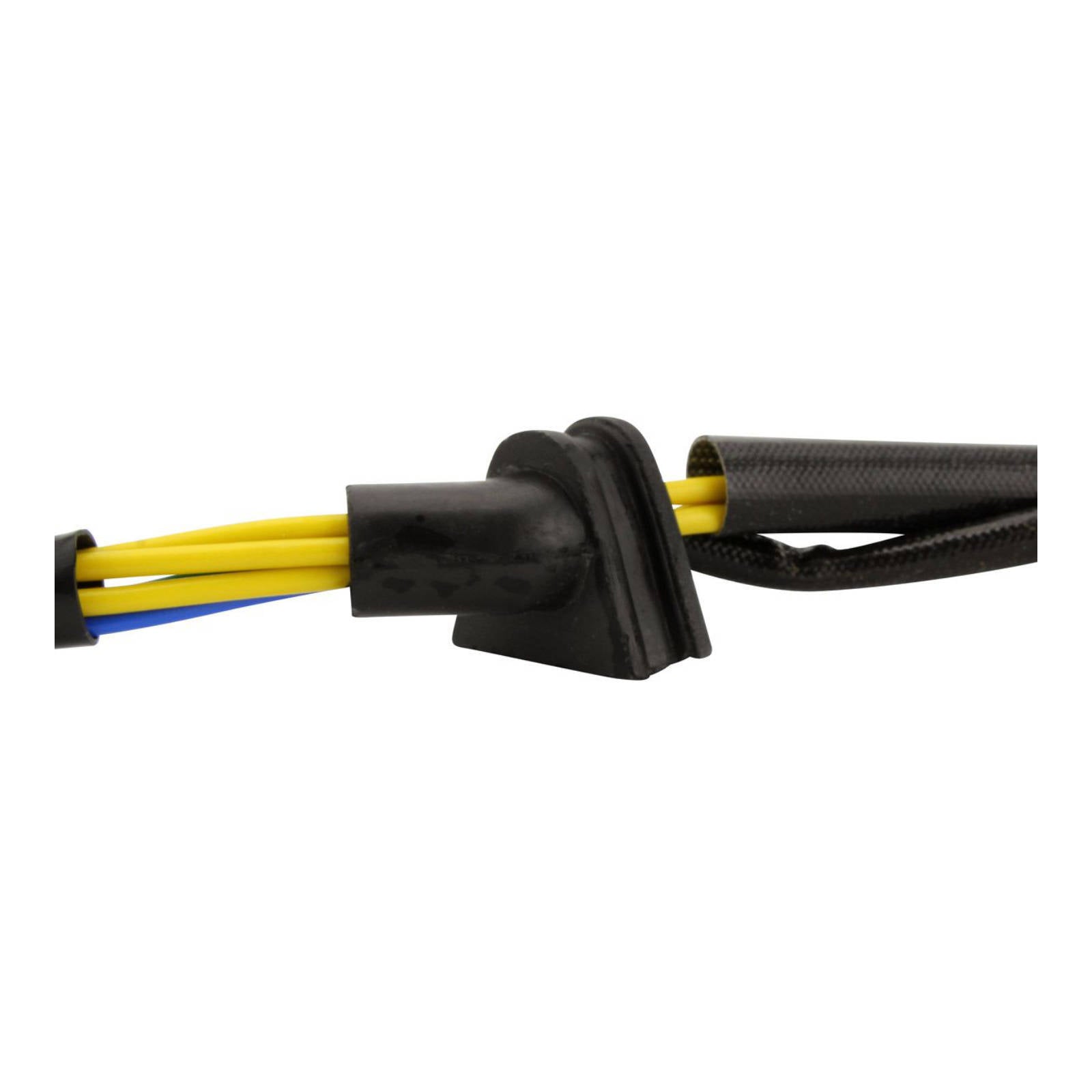

- Rubber grommet included
- All products shipped are tested
