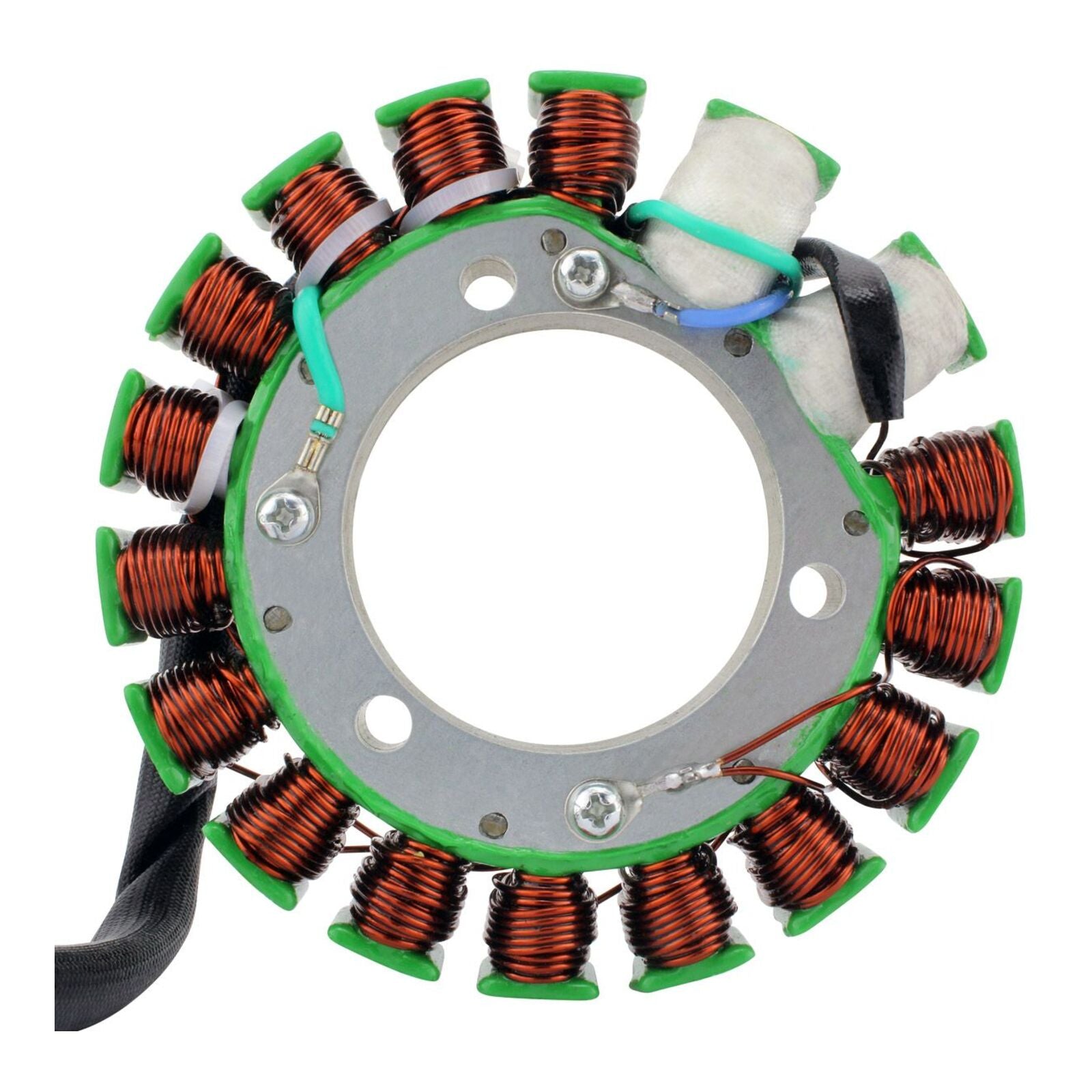

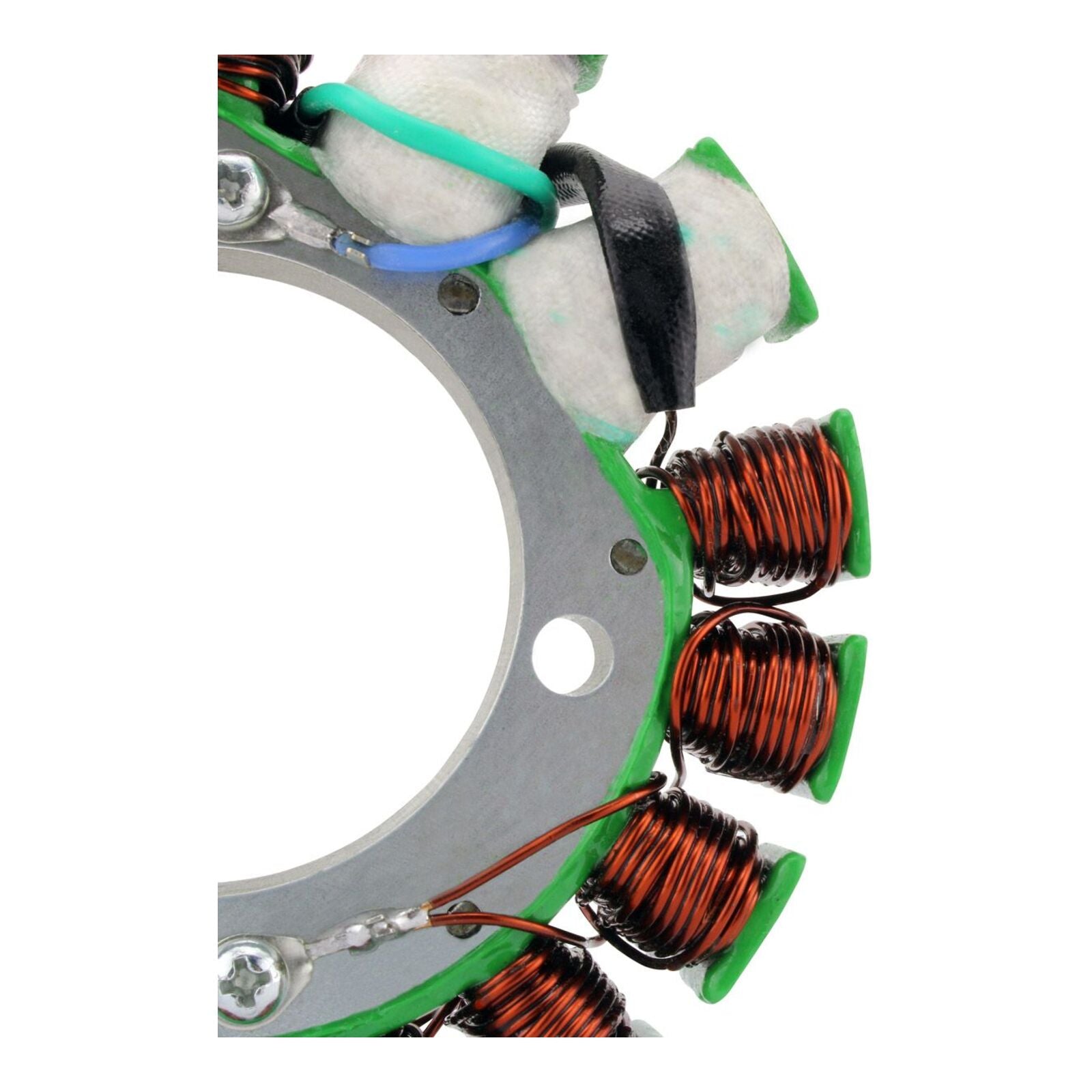

STATOR HON XR 600 R 1985-2000

Save $35.20
RMSTATORSKU: RMS010107205

Price:
Sale price$284.79 Regular price$319.99
Stock:
Sold out

Local pick-up is not available, but don’t worry! Select one of our shipping options for fast and reliable delivery.

Best Price Guarantee!

Found it cheaper elsewhere? We’ll match it!
If you bought this product from us and found it cheaper on any online store in Australia within 14 days, just send an email to shop@scootering.com.au and we will refund the difference within 7 days.

Description

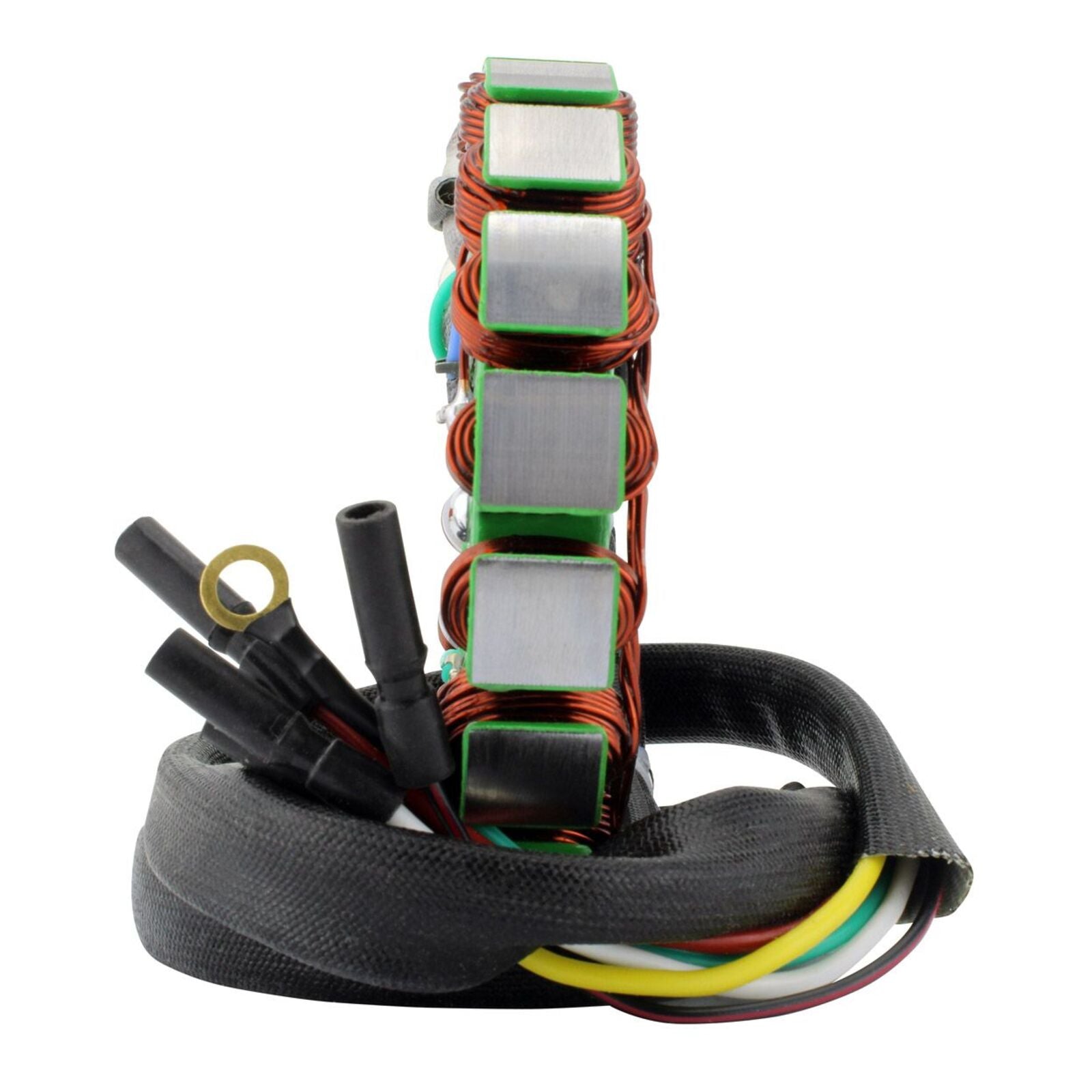

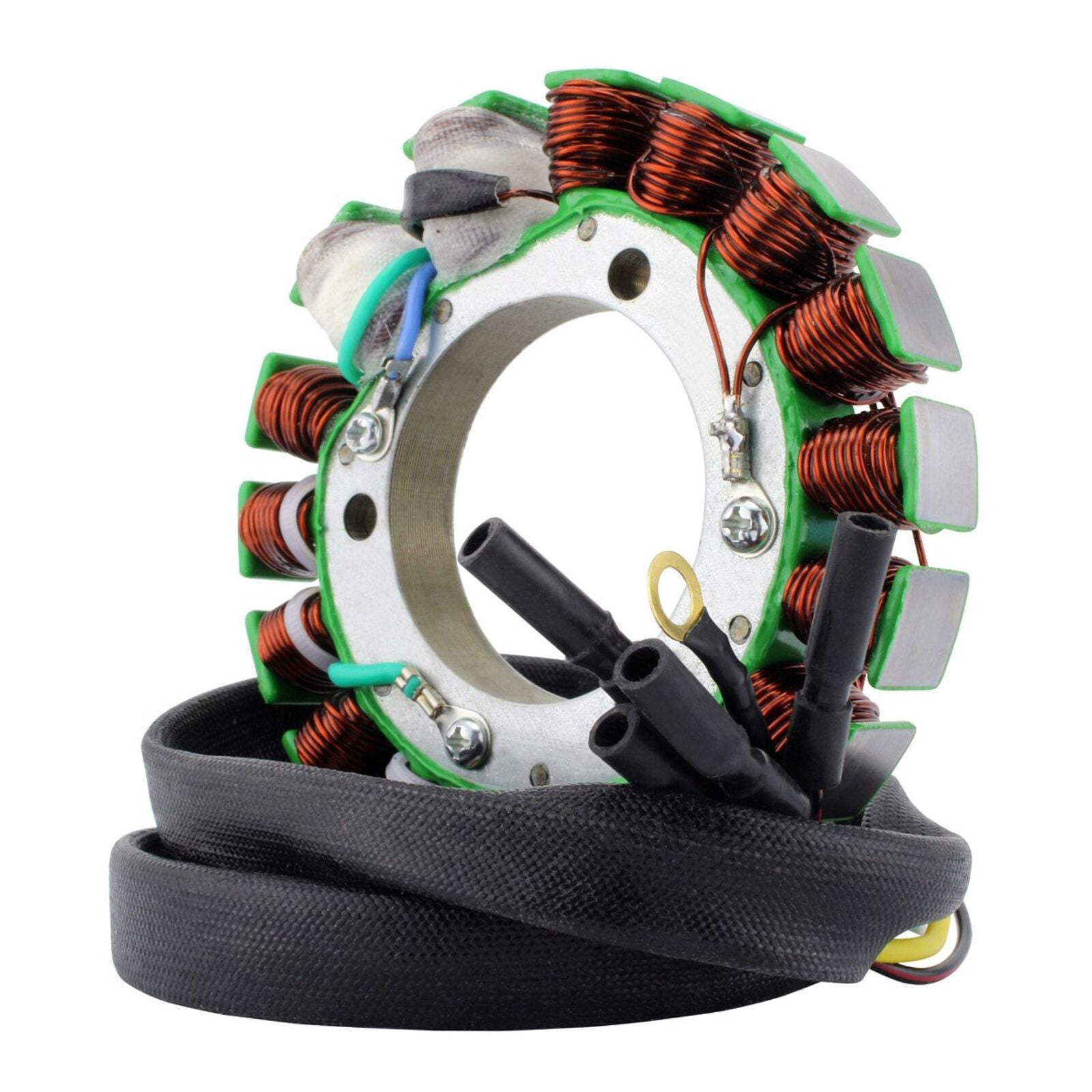

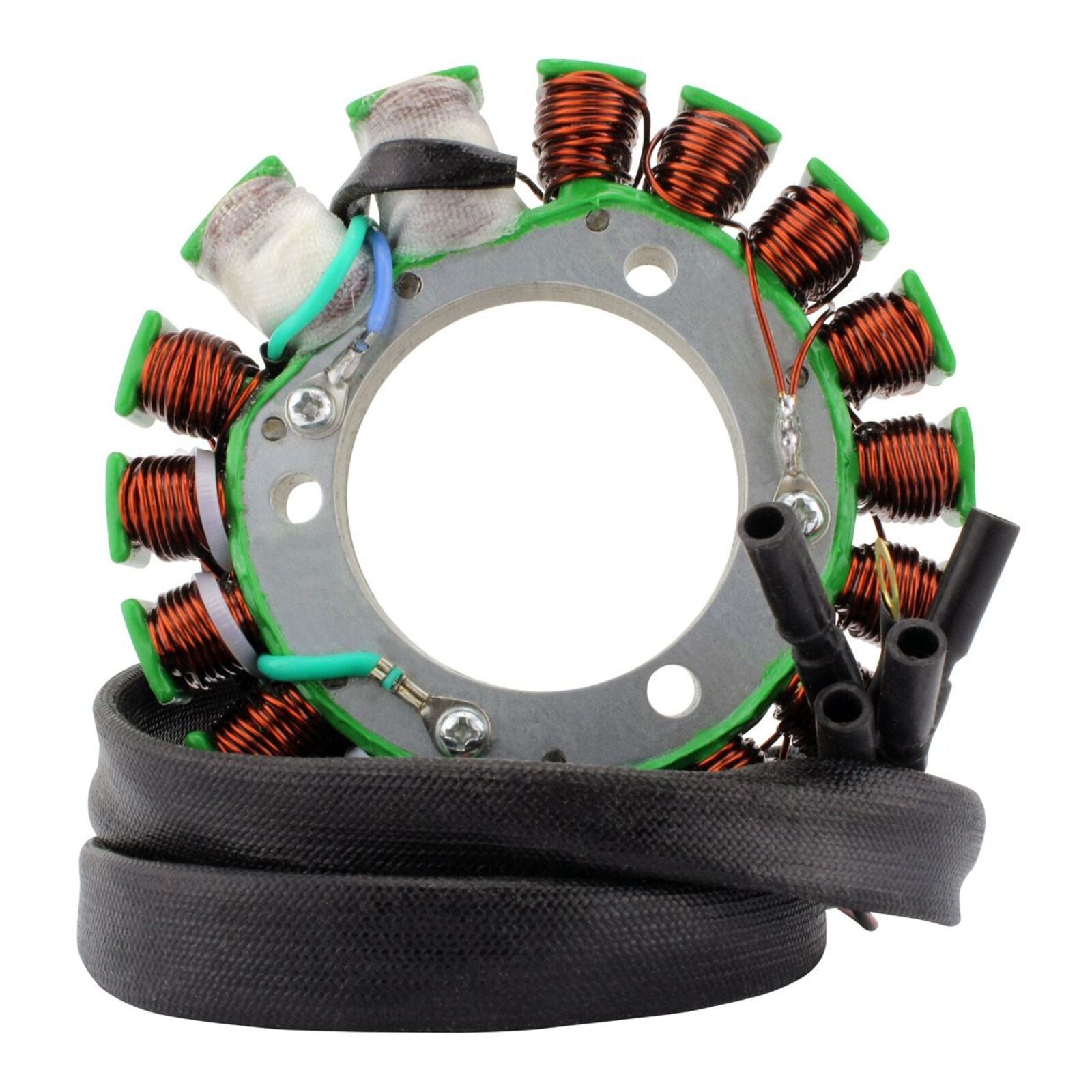

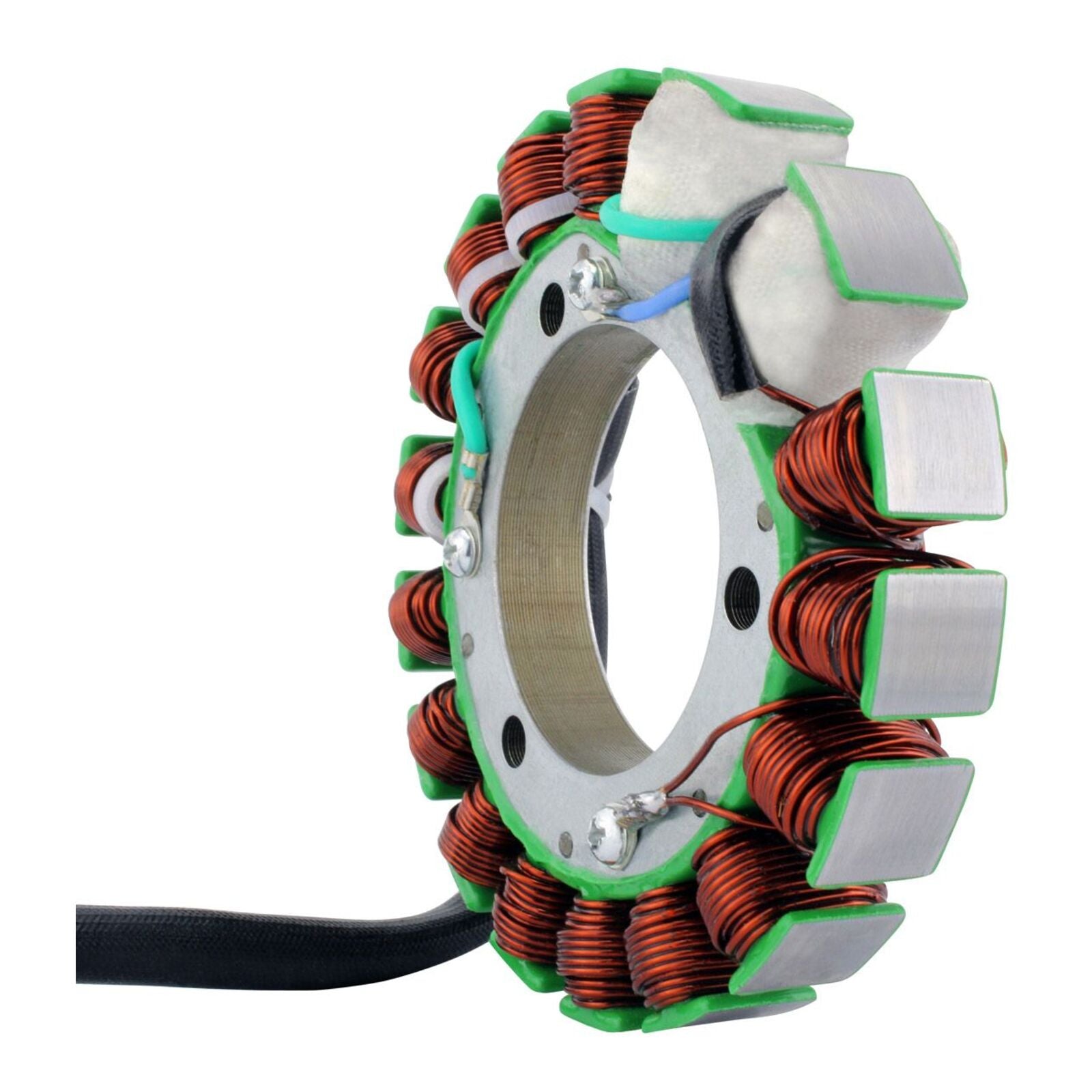

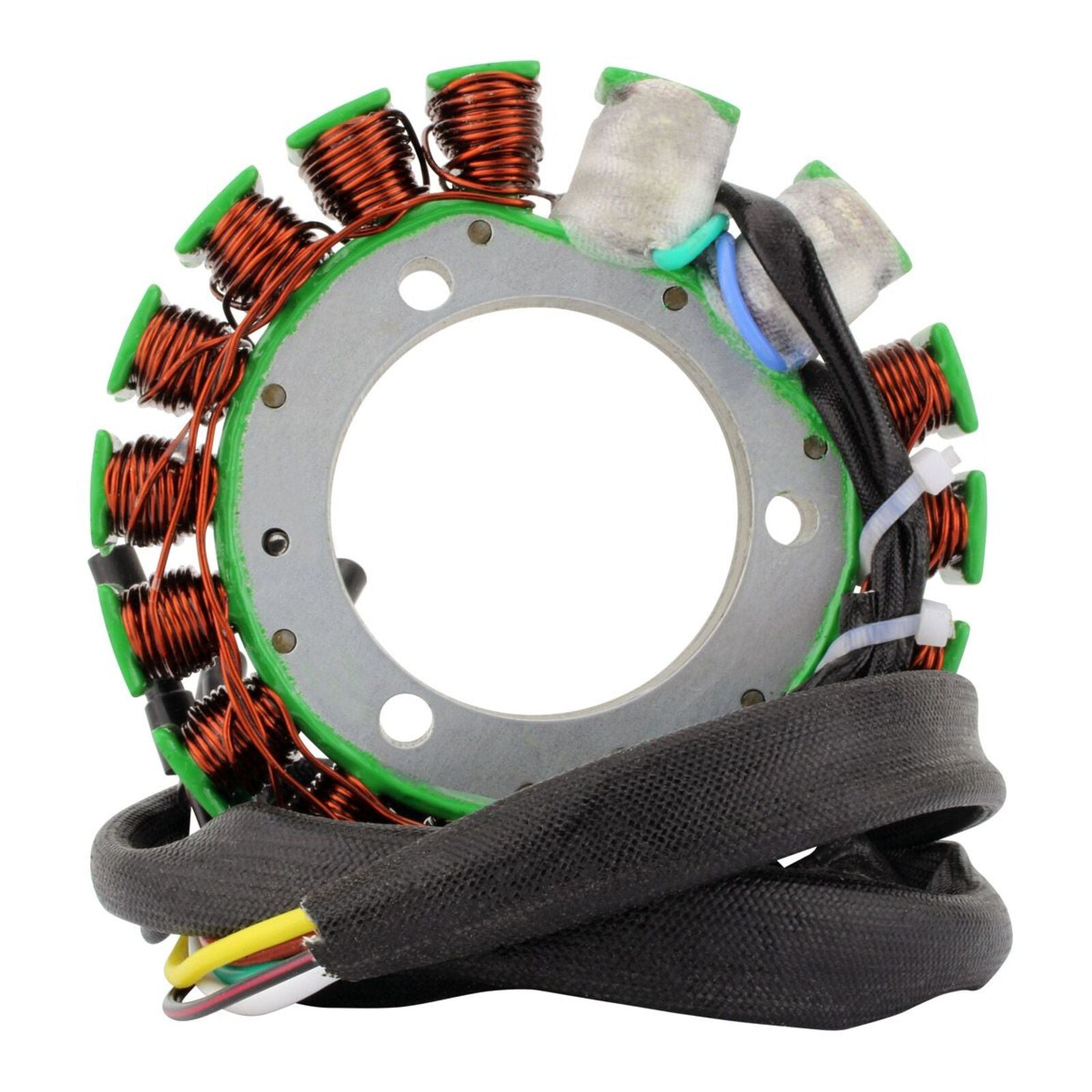

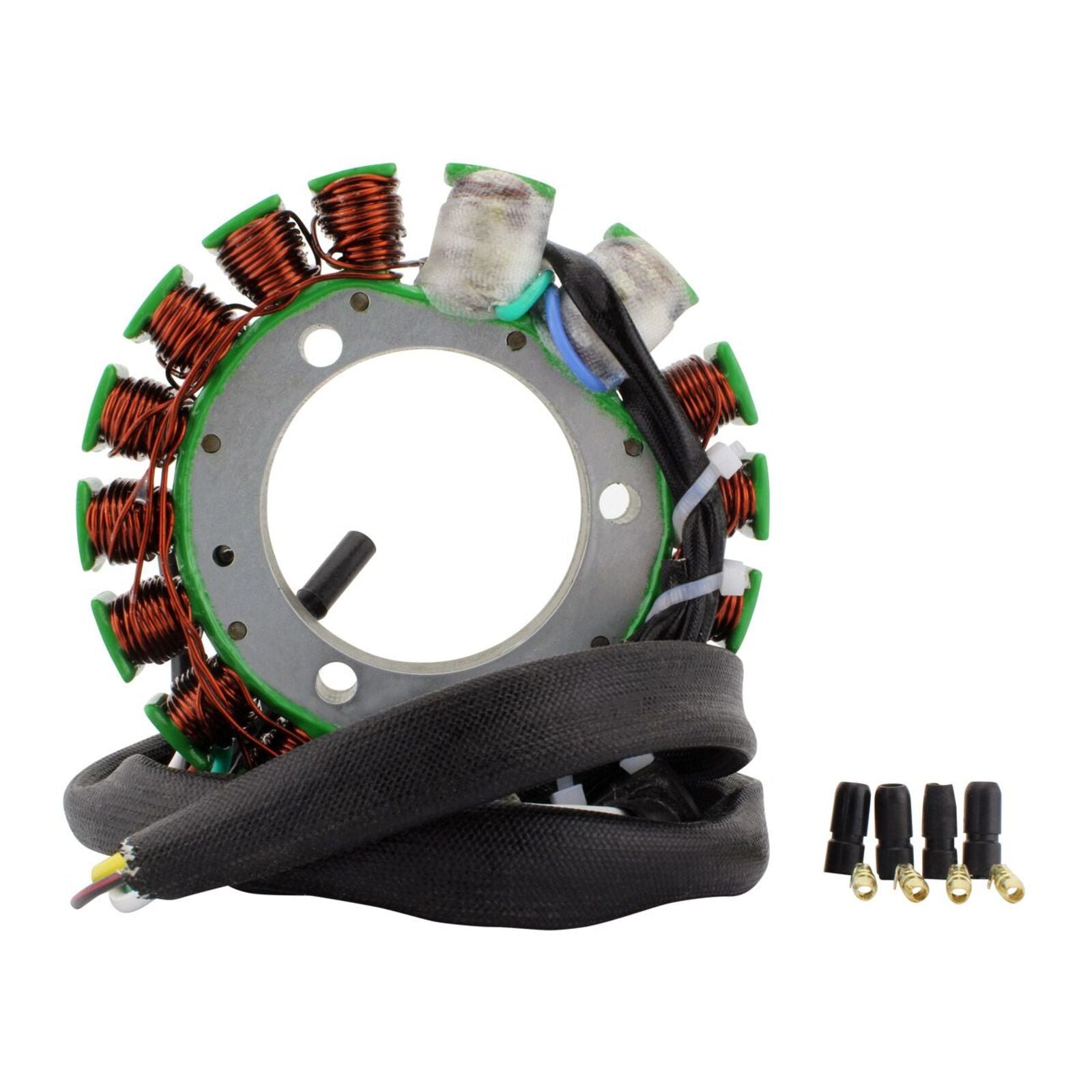

Brand new aftermarket High Output Stator 200W.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • 2 x 100W

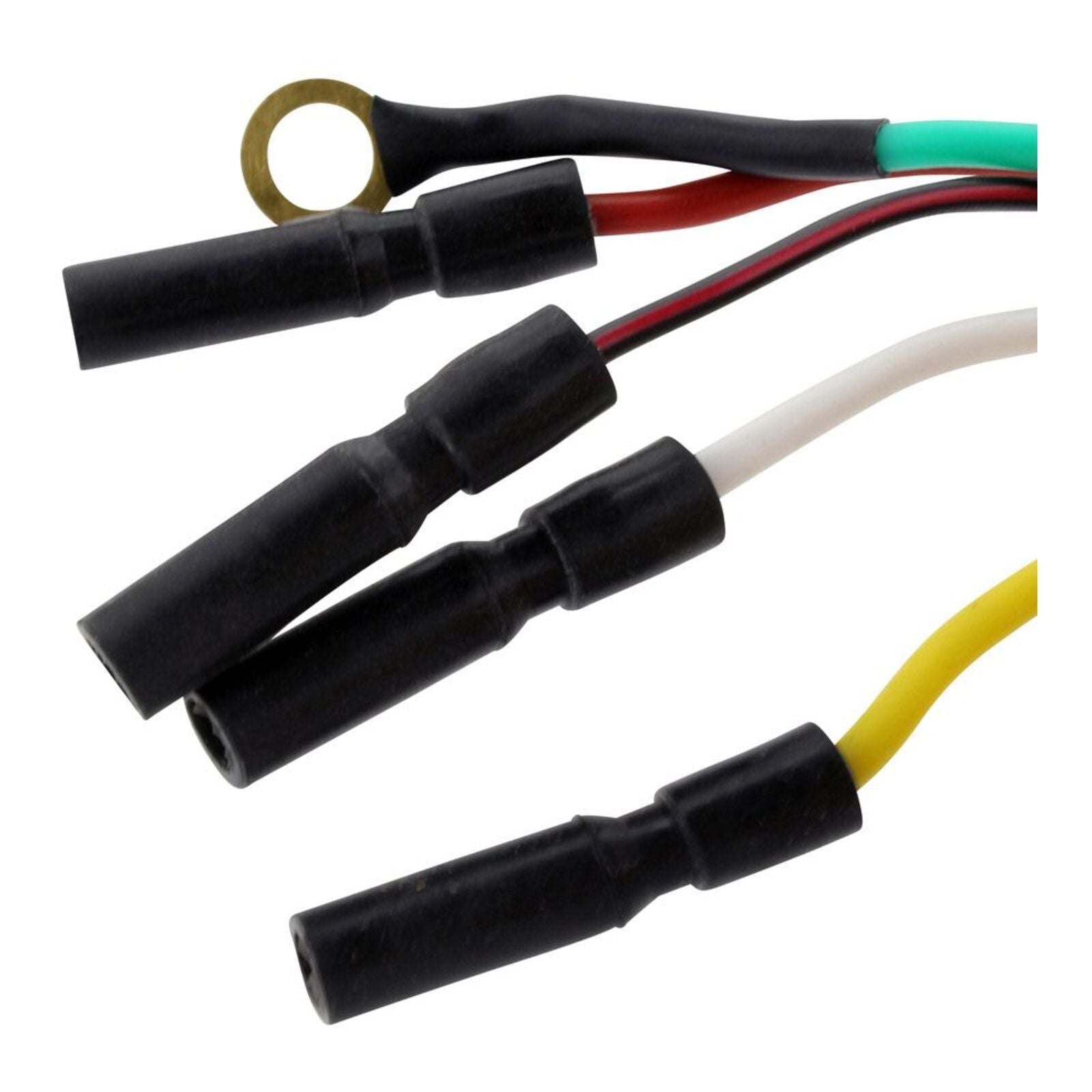

  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

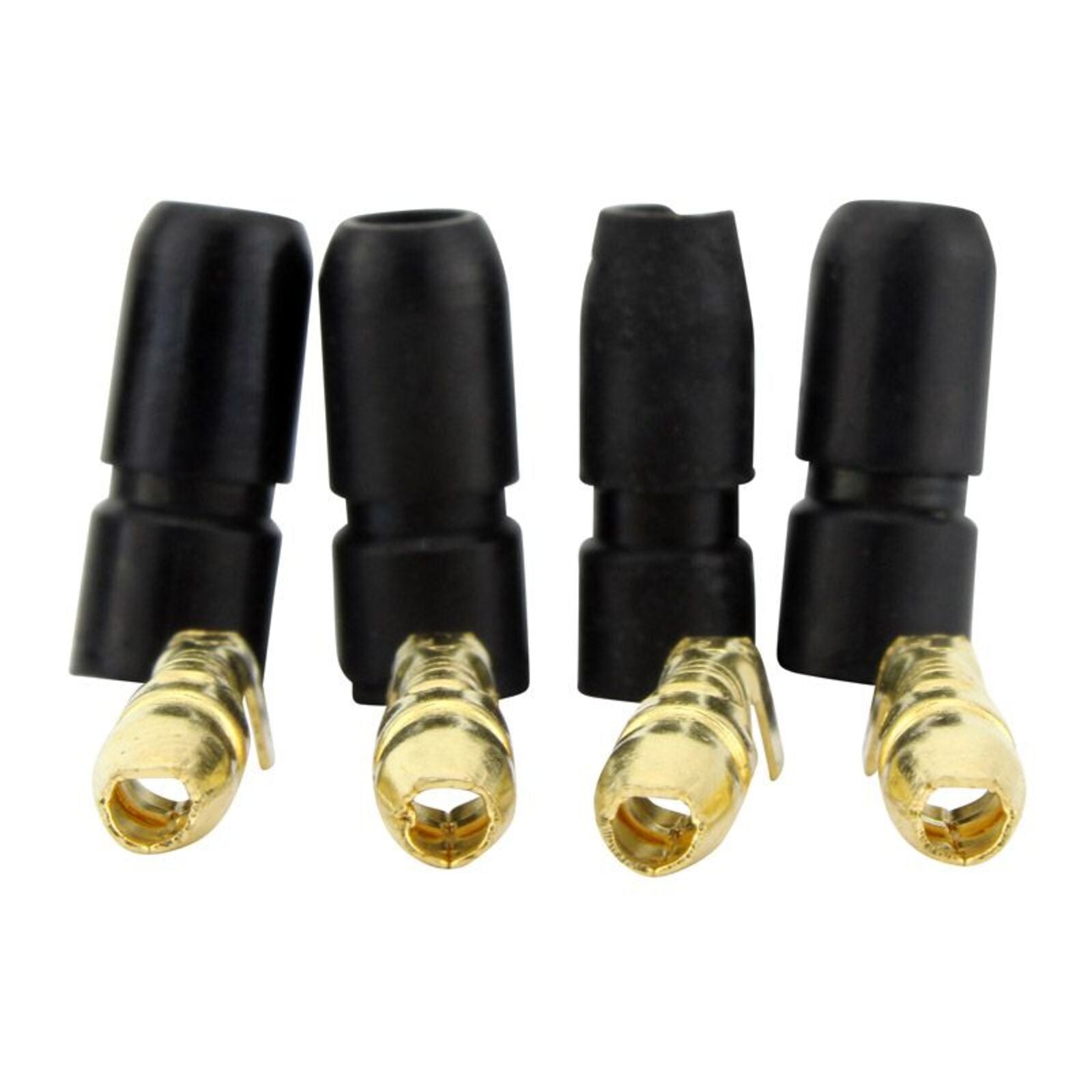

We have even included the opposite connector (main harness side) as we know these are often melted, corroded, defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before Installing the New Stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

The stator might have a different wire colThe code than the original part. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 15 mm
  • Length of wires stator to grommet: 200 mm
  • Length of wires grommet to plug: 700 mm

Other Specifications:

  • Number of wires: 5
  • Number of plugs: 5
  • Number of pins: 3
  • Number of poles: 17
  • Wire to wire resistance:
  • Alternator: White to Green = 0.4 ohms ±20%
  • Alternator: Yellow to Red = 0.4 ohms ±20%
  • Source: Black/Red to Green = 140 ohms ±20%
