Description

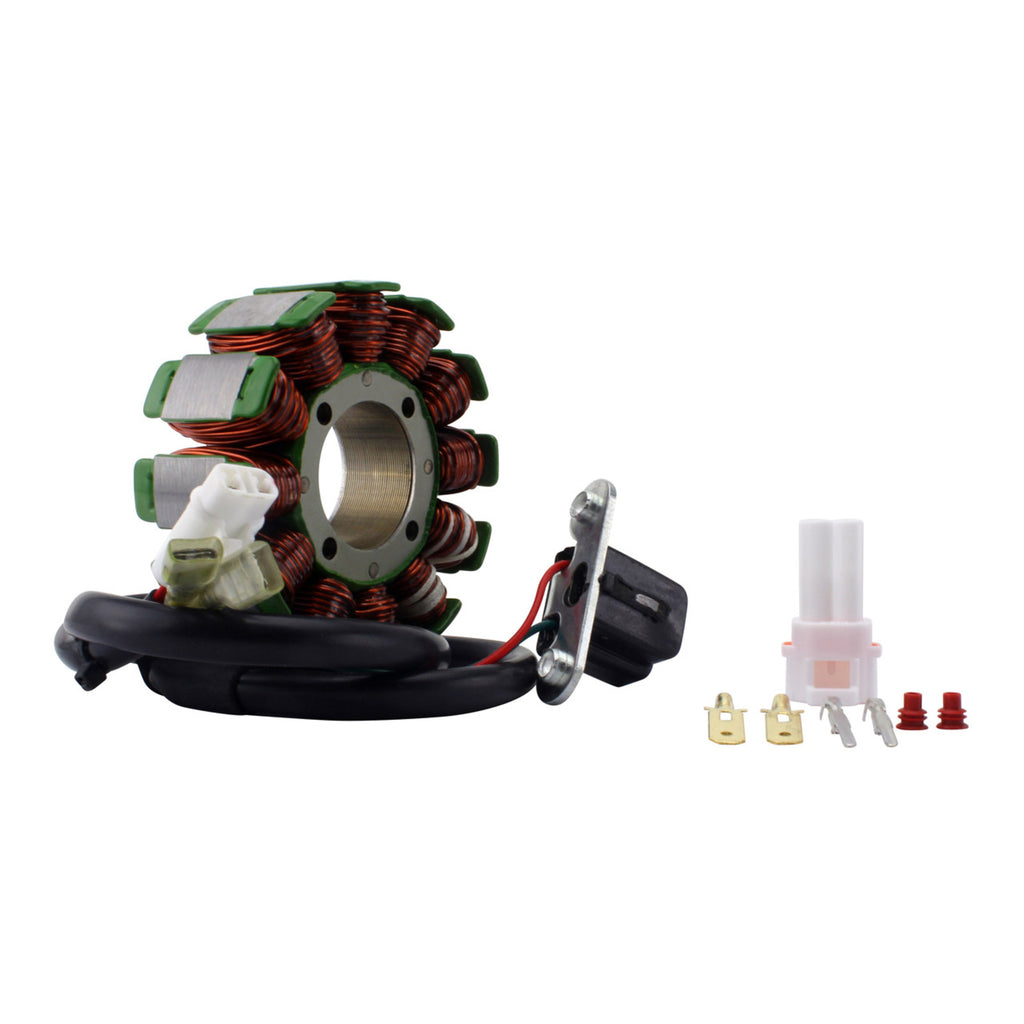

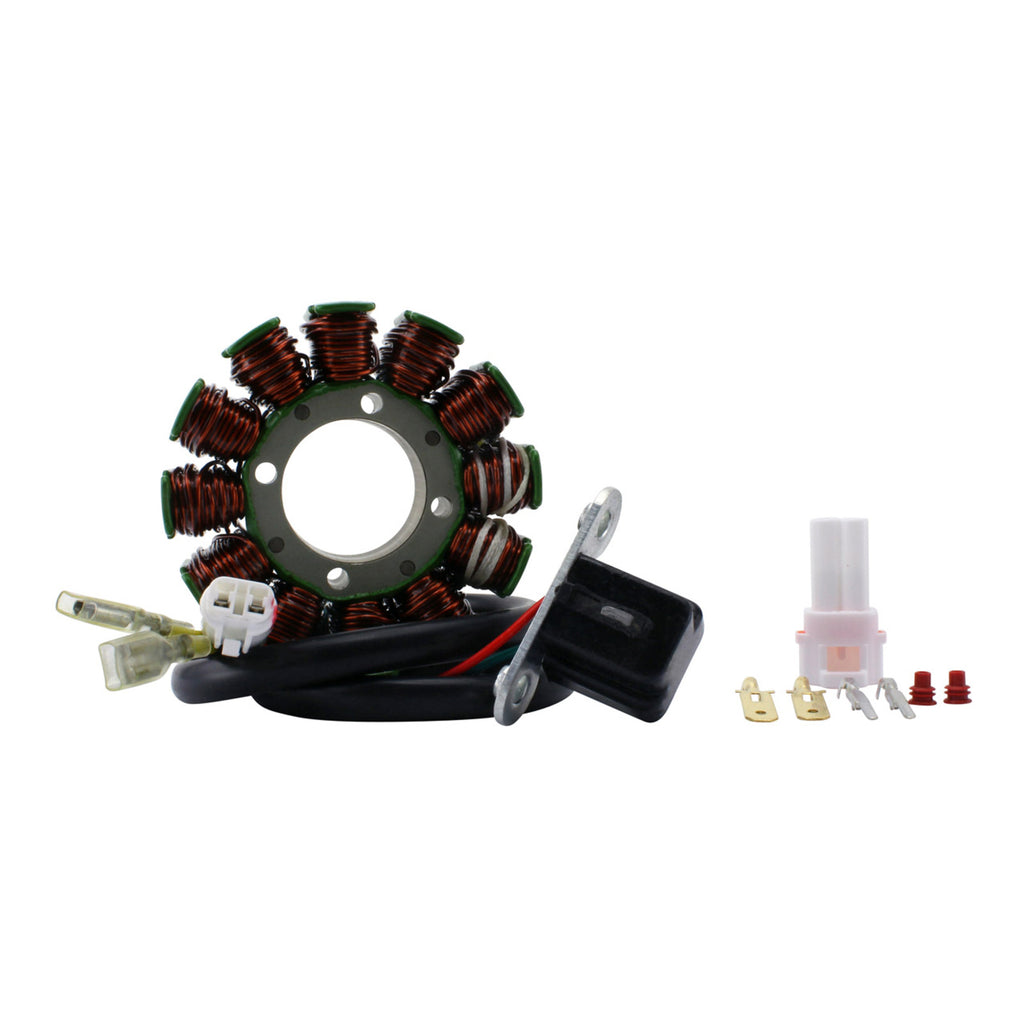

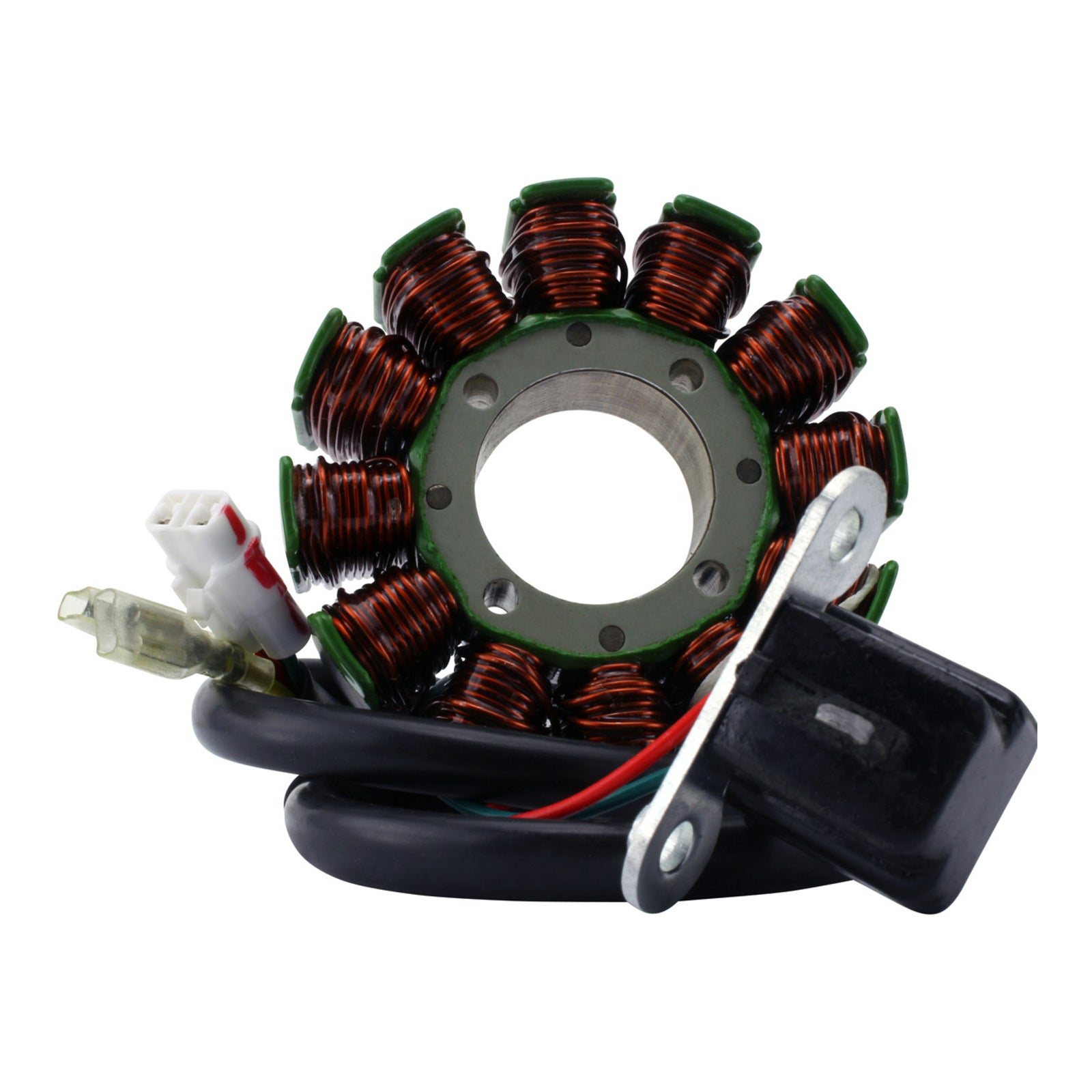

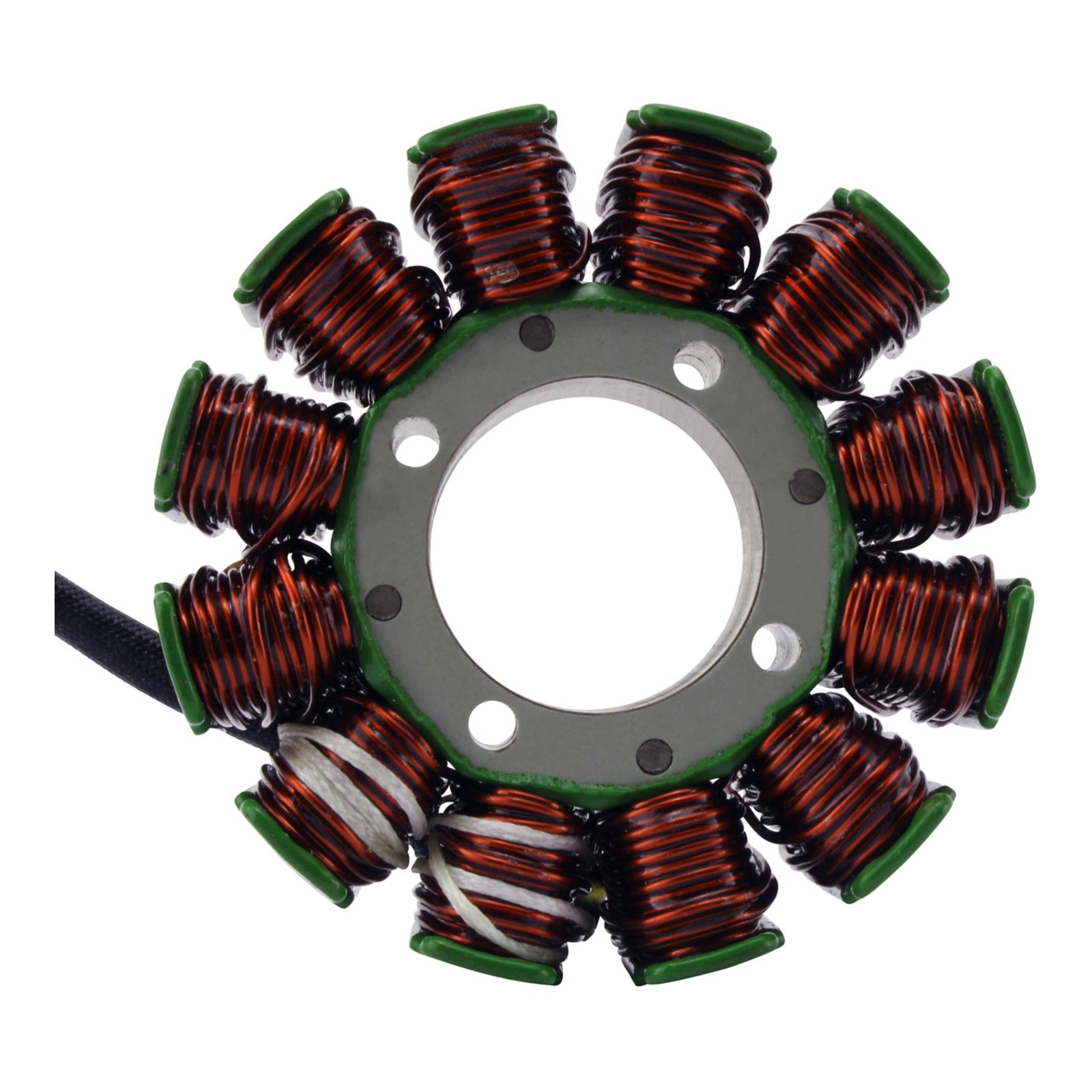

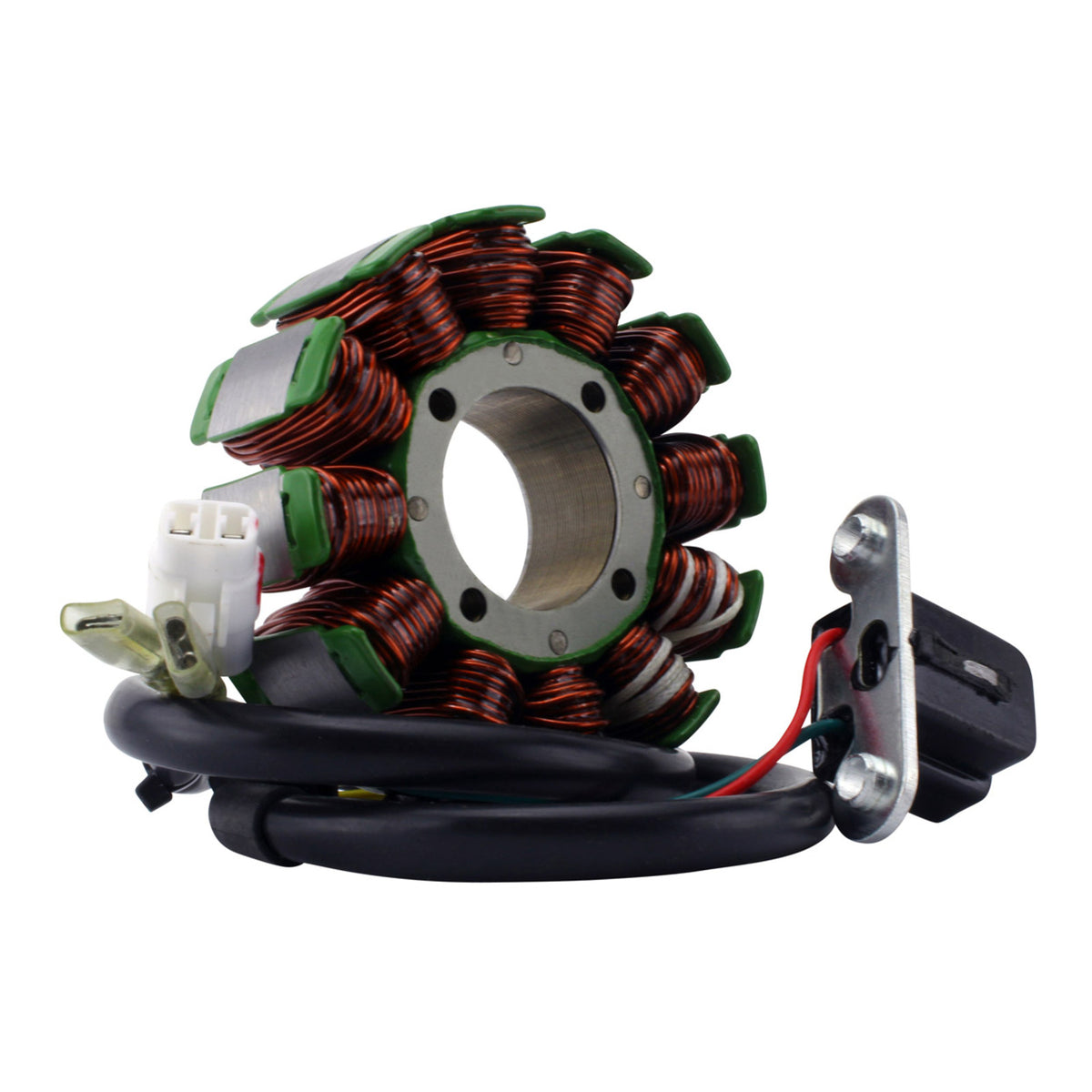

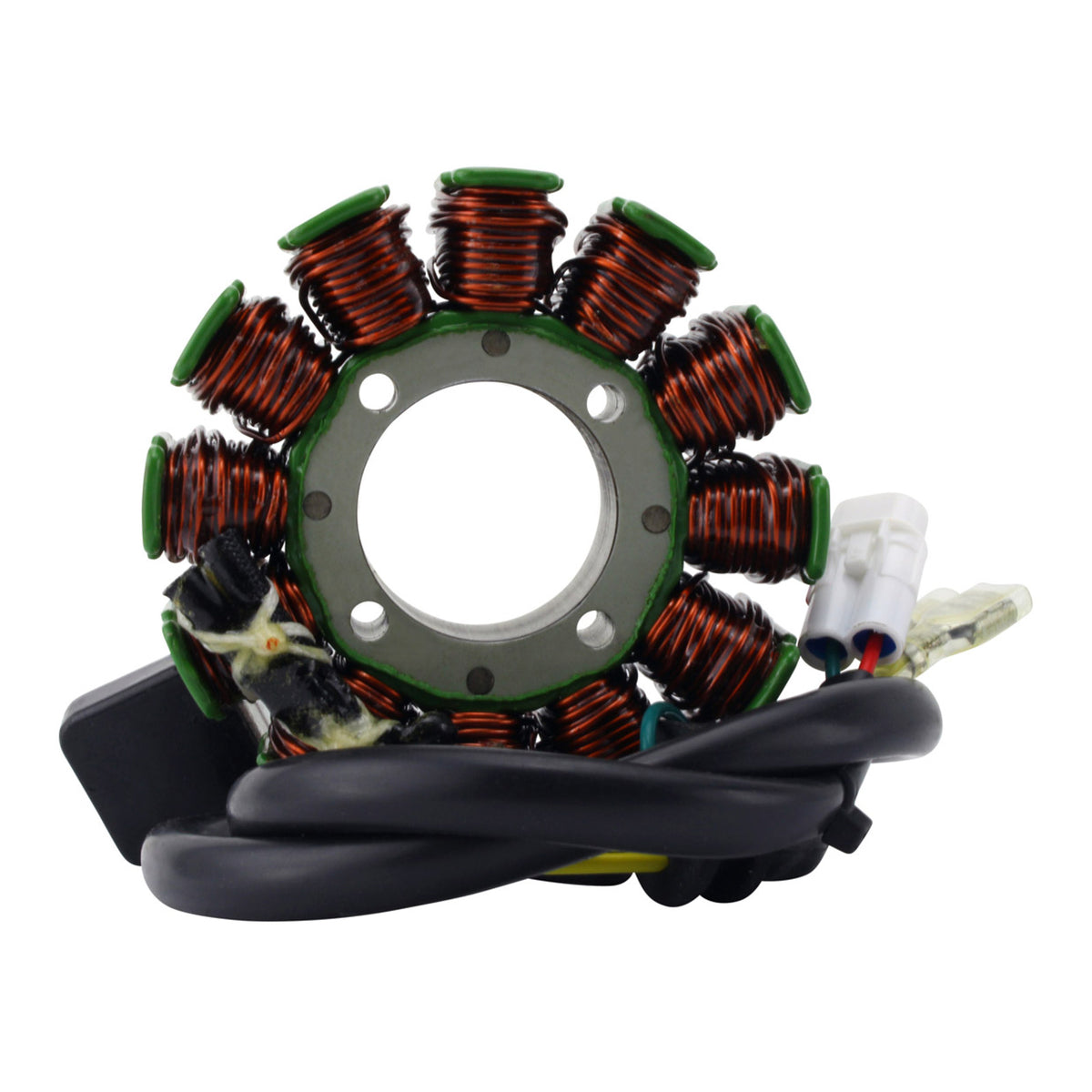

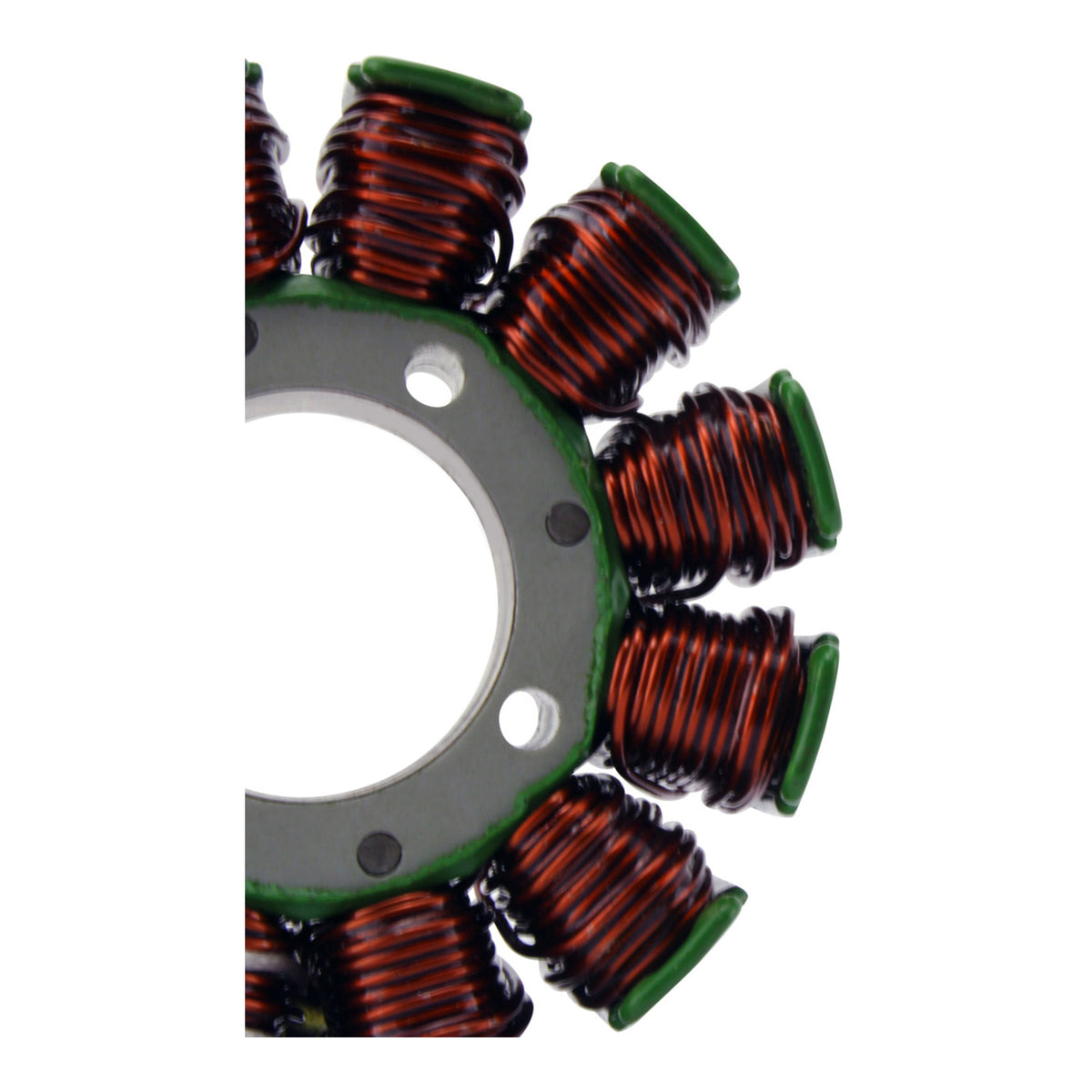

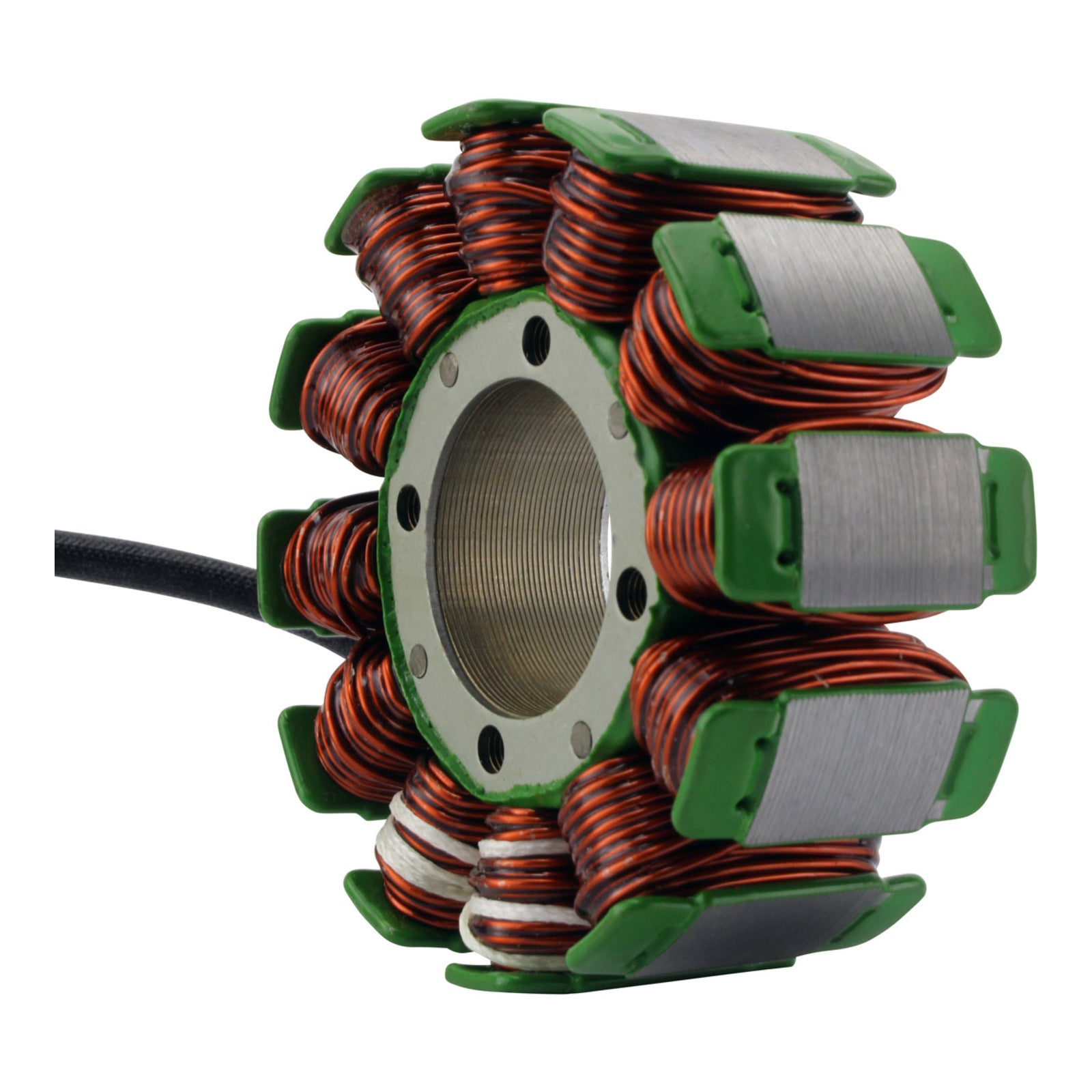

Brand new aftermarket stator.
Features:
- Direct replacement to your original unit.
- 80 watts DC.
- This stator increases power output significantly.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.

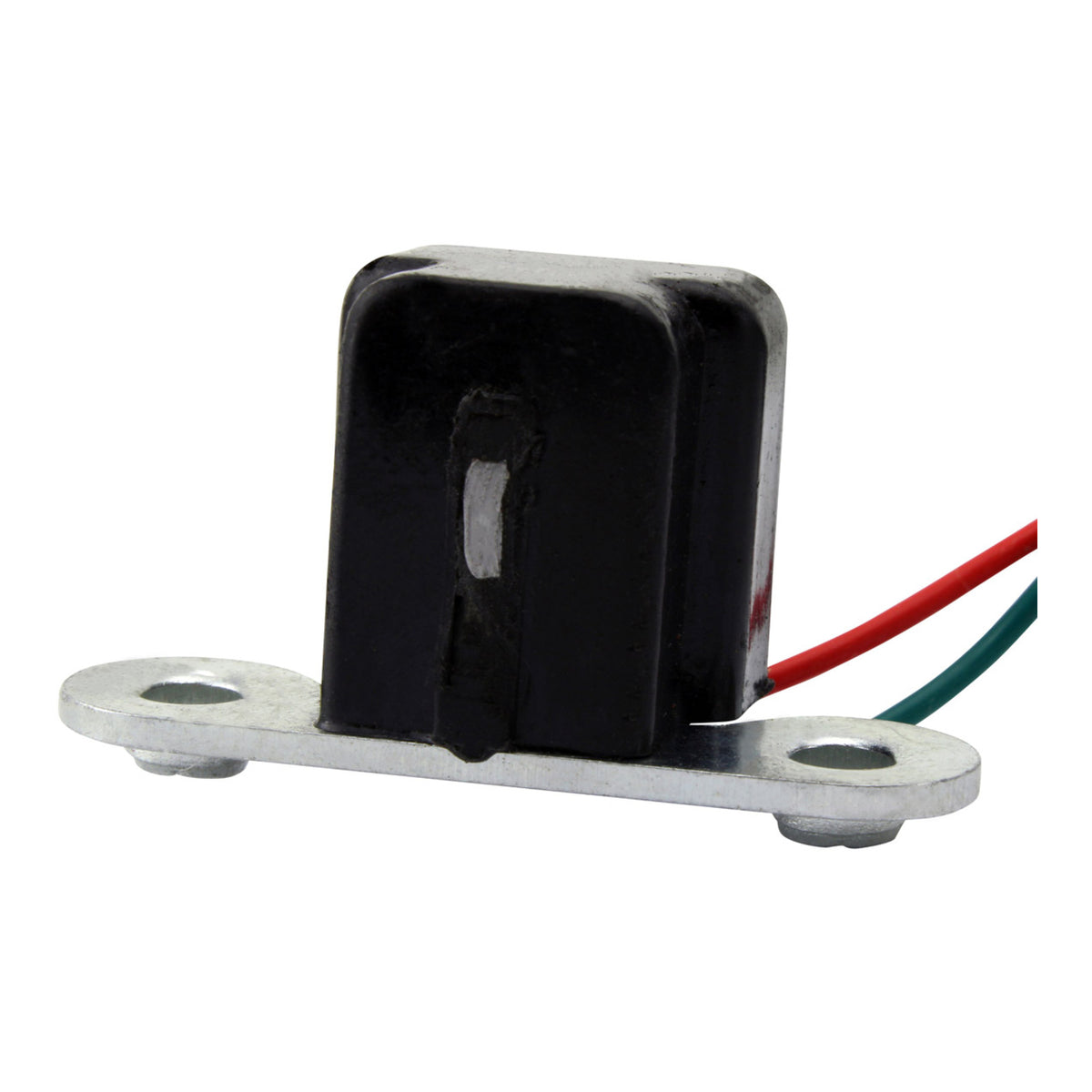

- Pick up pulsar coil included.

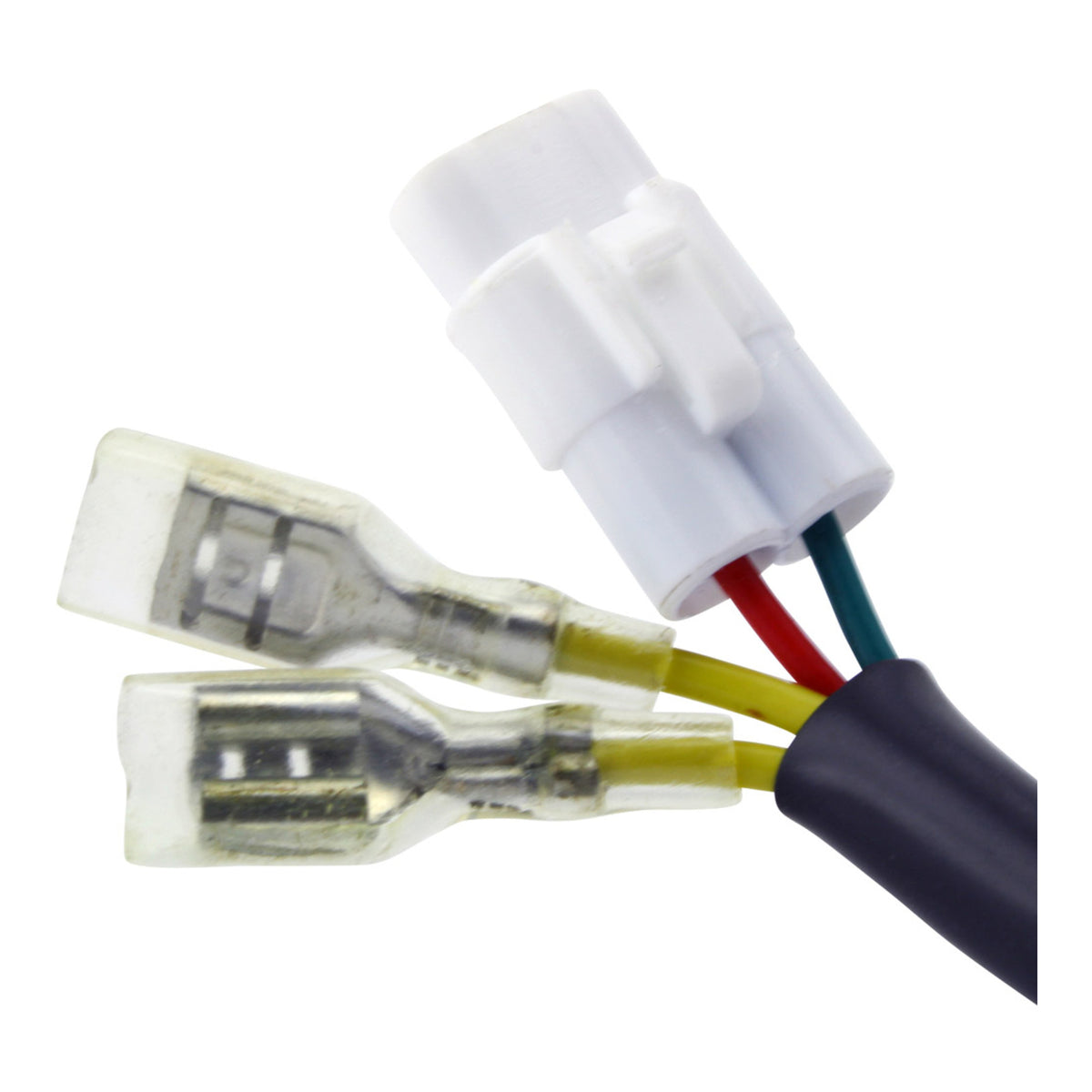

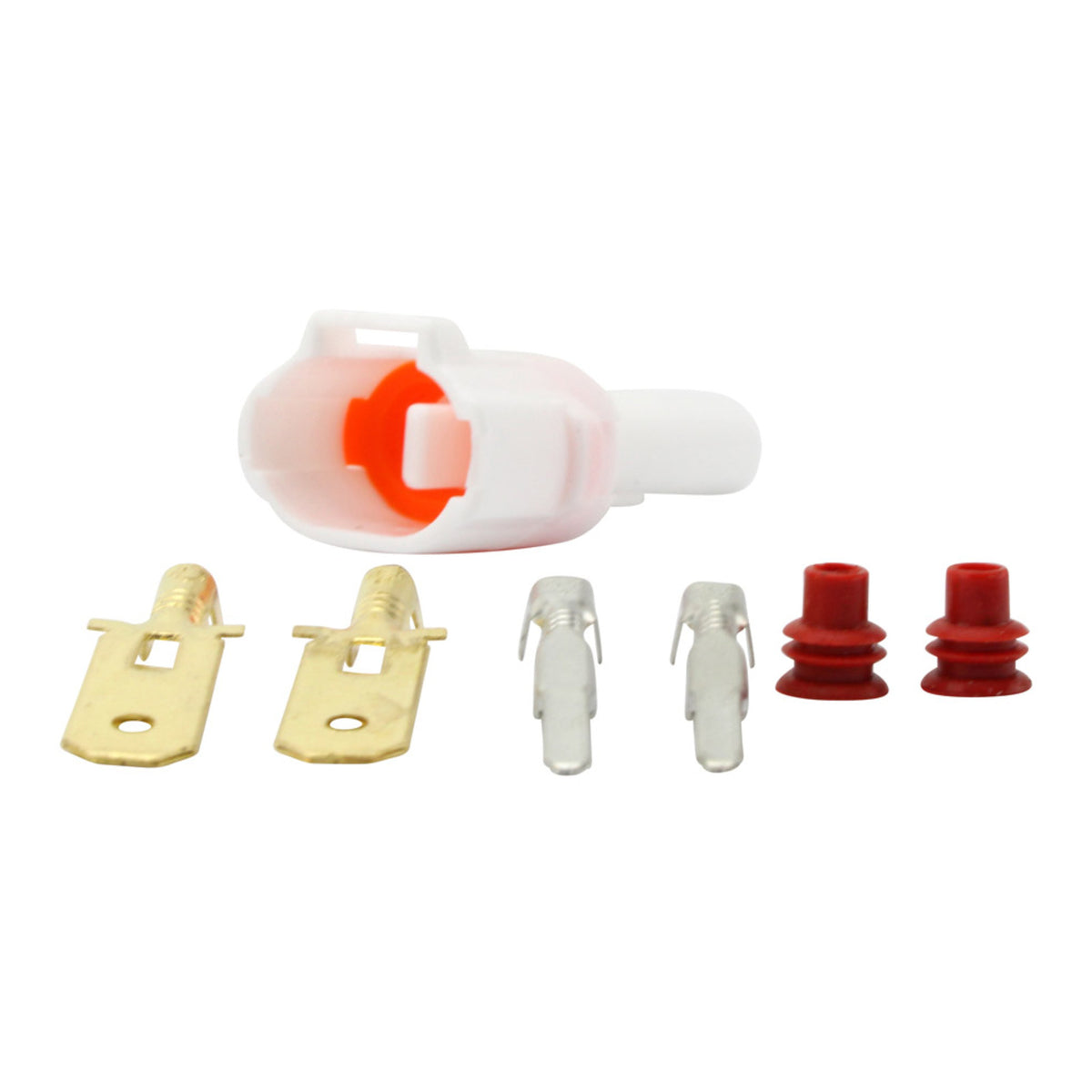

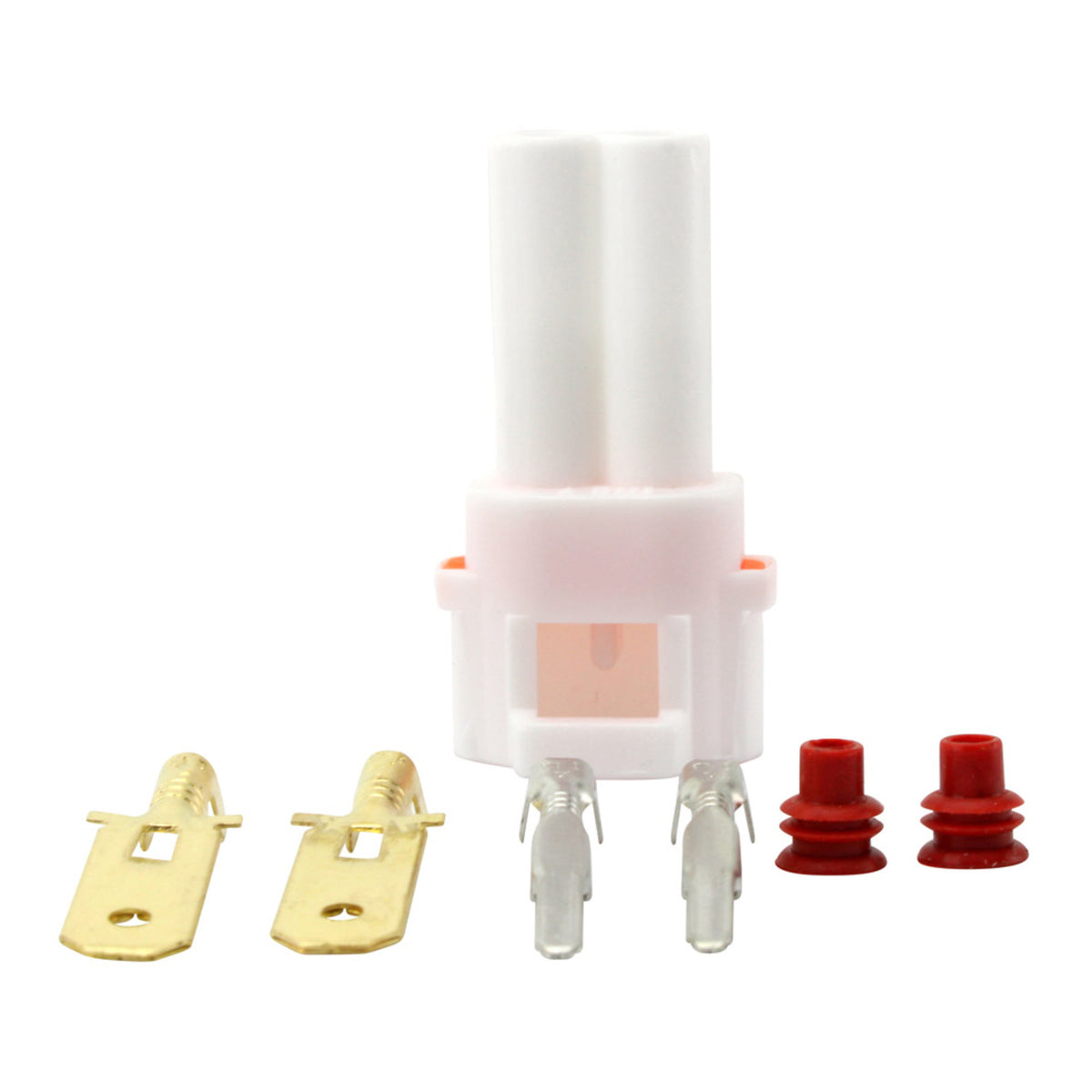

- Connectors included.
- Rubber grommet included.
- All products shipped are tested.
- 20% more output over stock, works with all other OEM components.
Specifications:
- Interior diameter: 29 mm
- Exterior diameter: 77 mm
- Thickness: 21 mm
- Stator wire length to grommet: 120 mm
- Wire length from grommet to plug: 520 mm
- Pickup coil wire length to grommet: 90 mm
- 4 wires
- 1 plug
- 4 pins
- 12 poles
- Alternator resistance (Yellow to Yellow): 0.4 Ω ±20%
- Alternator resistance (Yellow to Ground): O.L. (Open Loop)
- Pickup coil resistance (Red to Green): 130 Ω ±20%
