Description

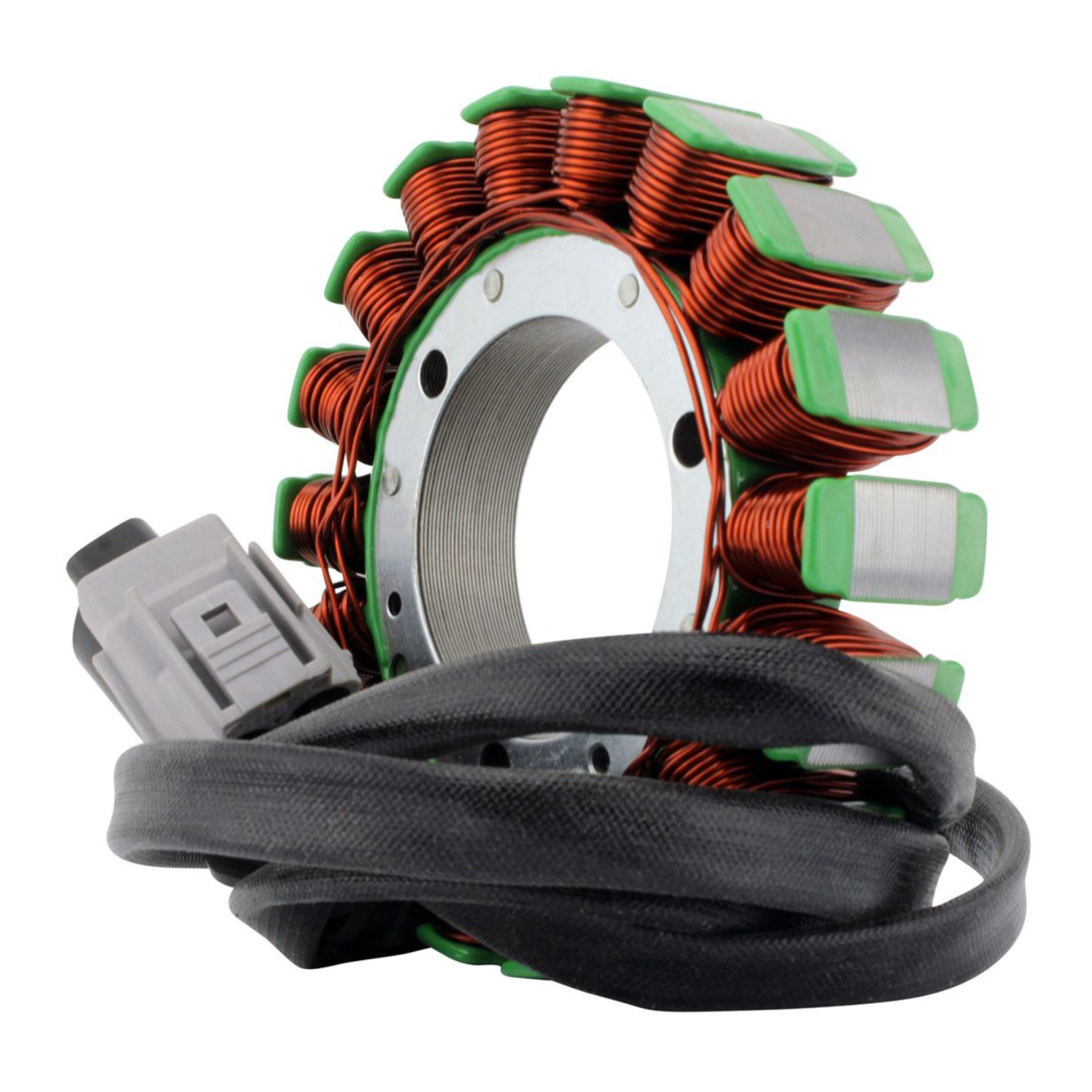

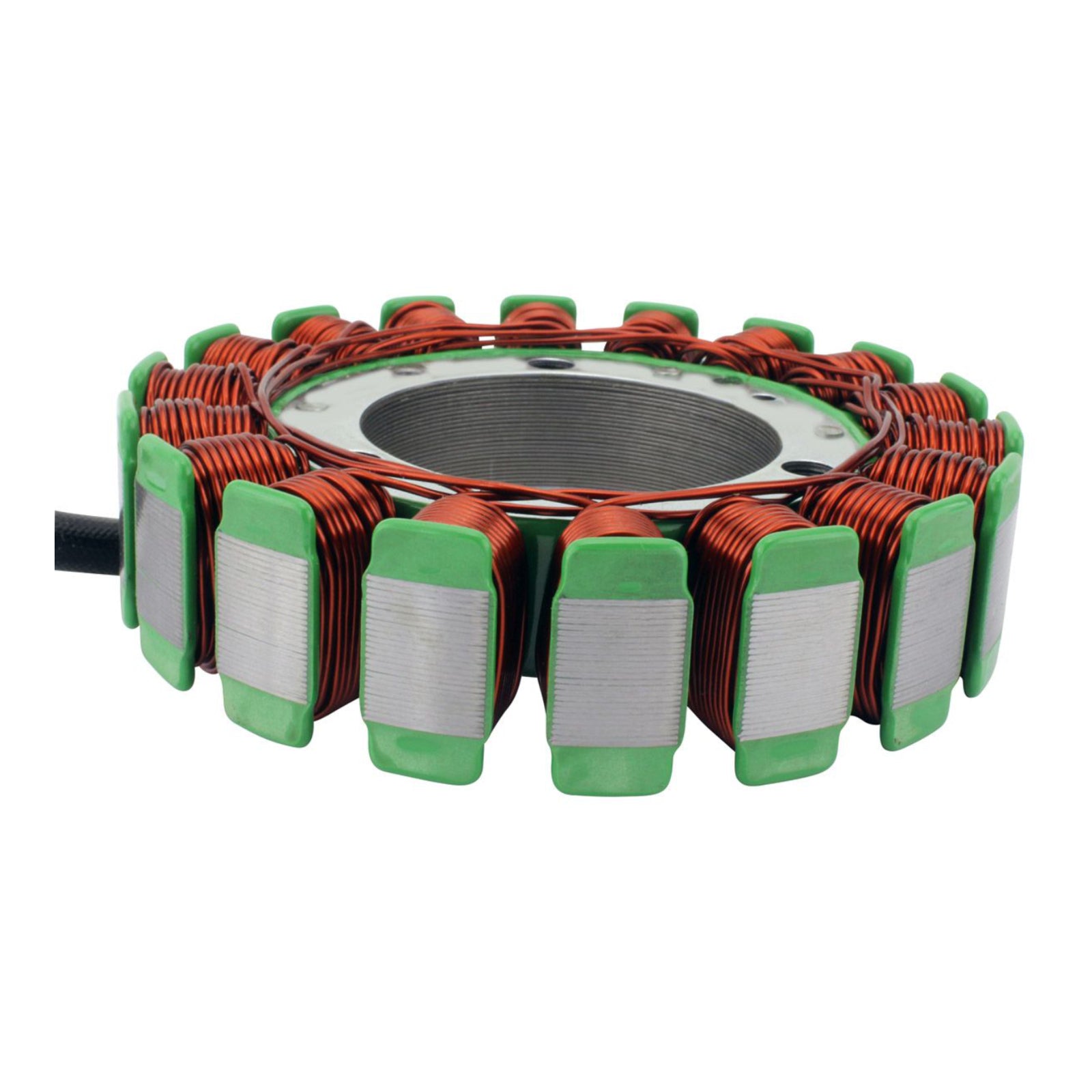

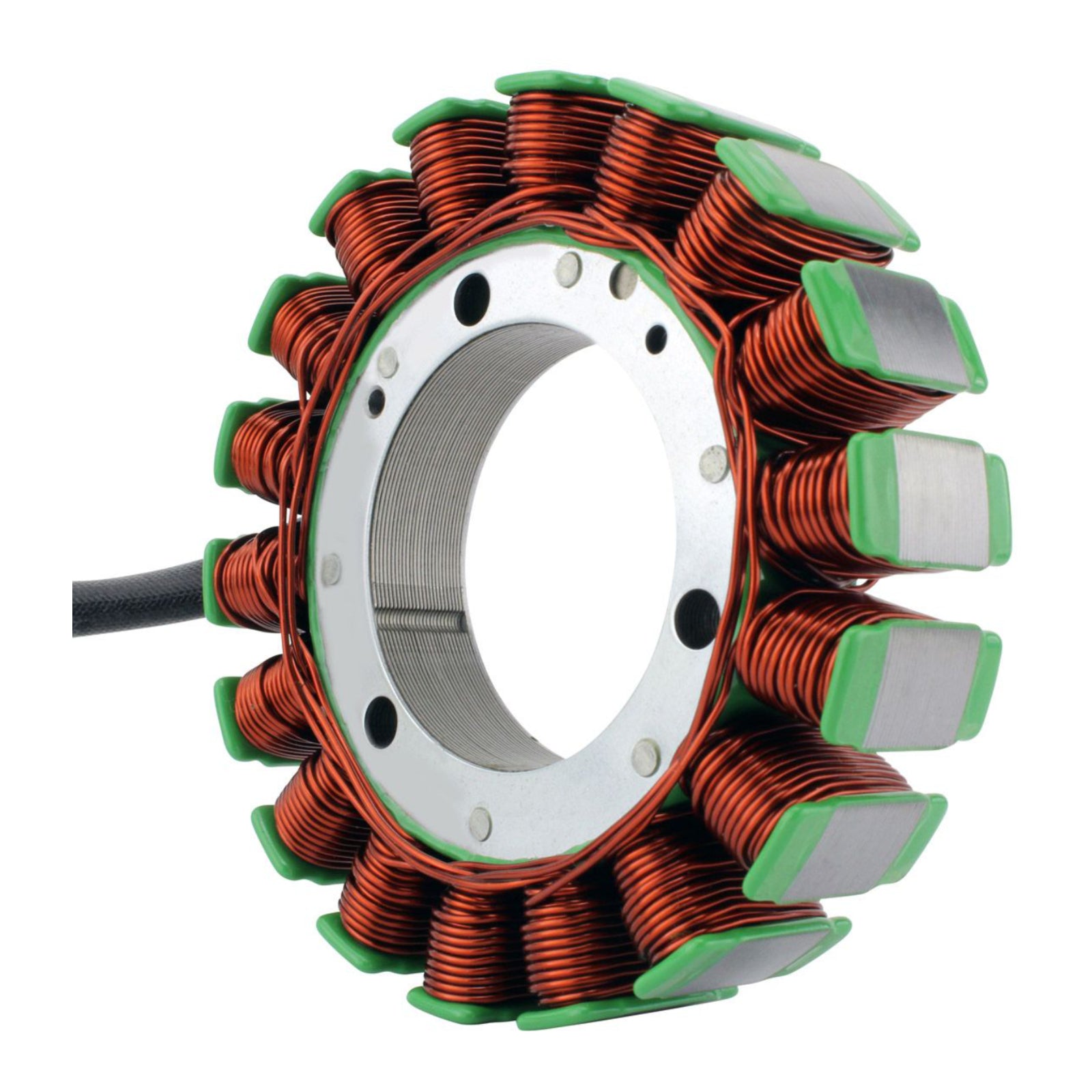

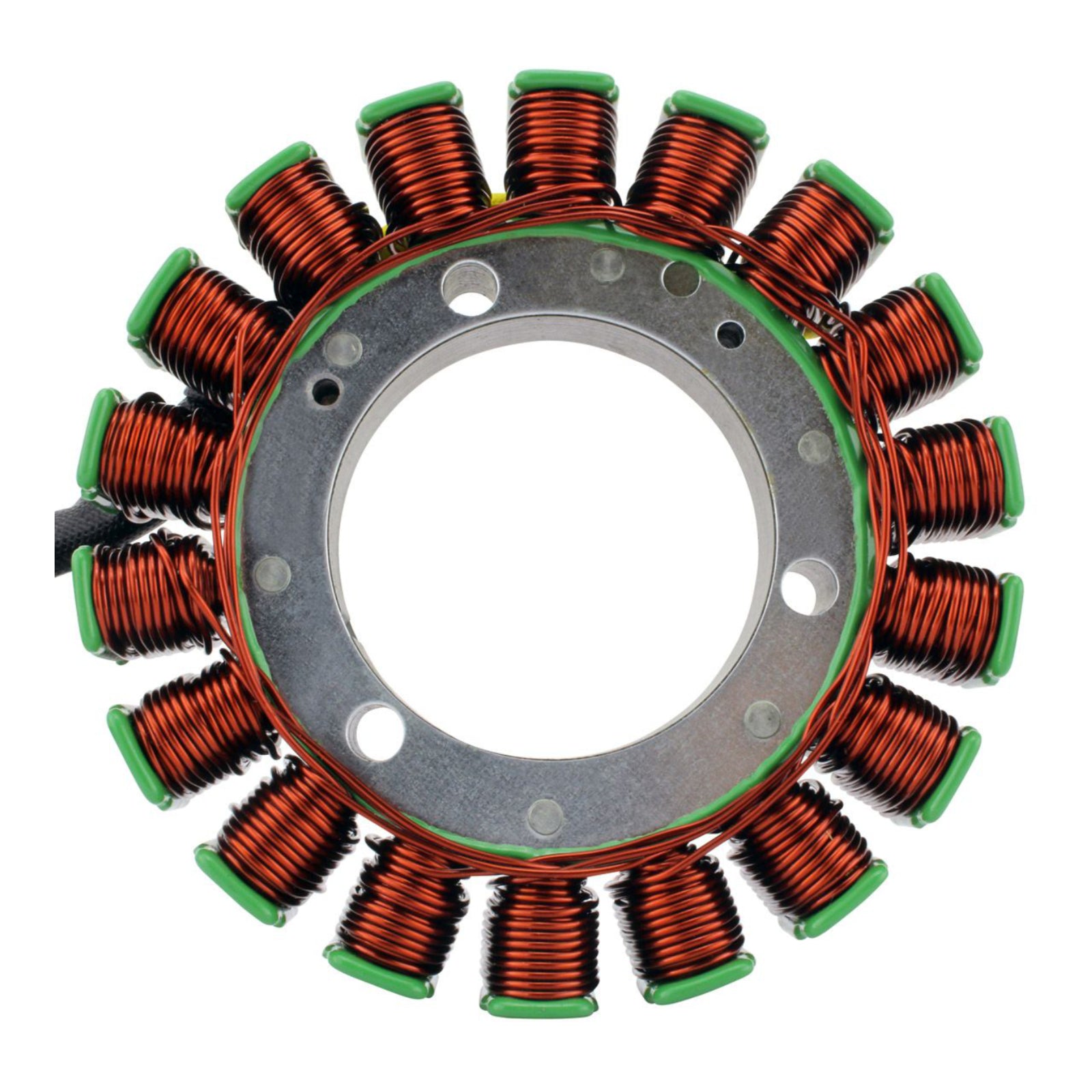

Plug-and-play aftermarket replacement generator stator from RM Stator.
Dimensions:
- Interior diameter: 54mm
- Exterior diameter: 115mm
- Thickness: 18mm
- Length of wires stator to grommet: 160mm
- Length of wires grommet to plug: 840mm
Other specifications:
- Number of wires: 3
- Number of plugs: 2
- Number of pins: 3
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Black to Black = 0.4 ohms +-20%
- Alternator: Black to ground = O.L
Details:
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

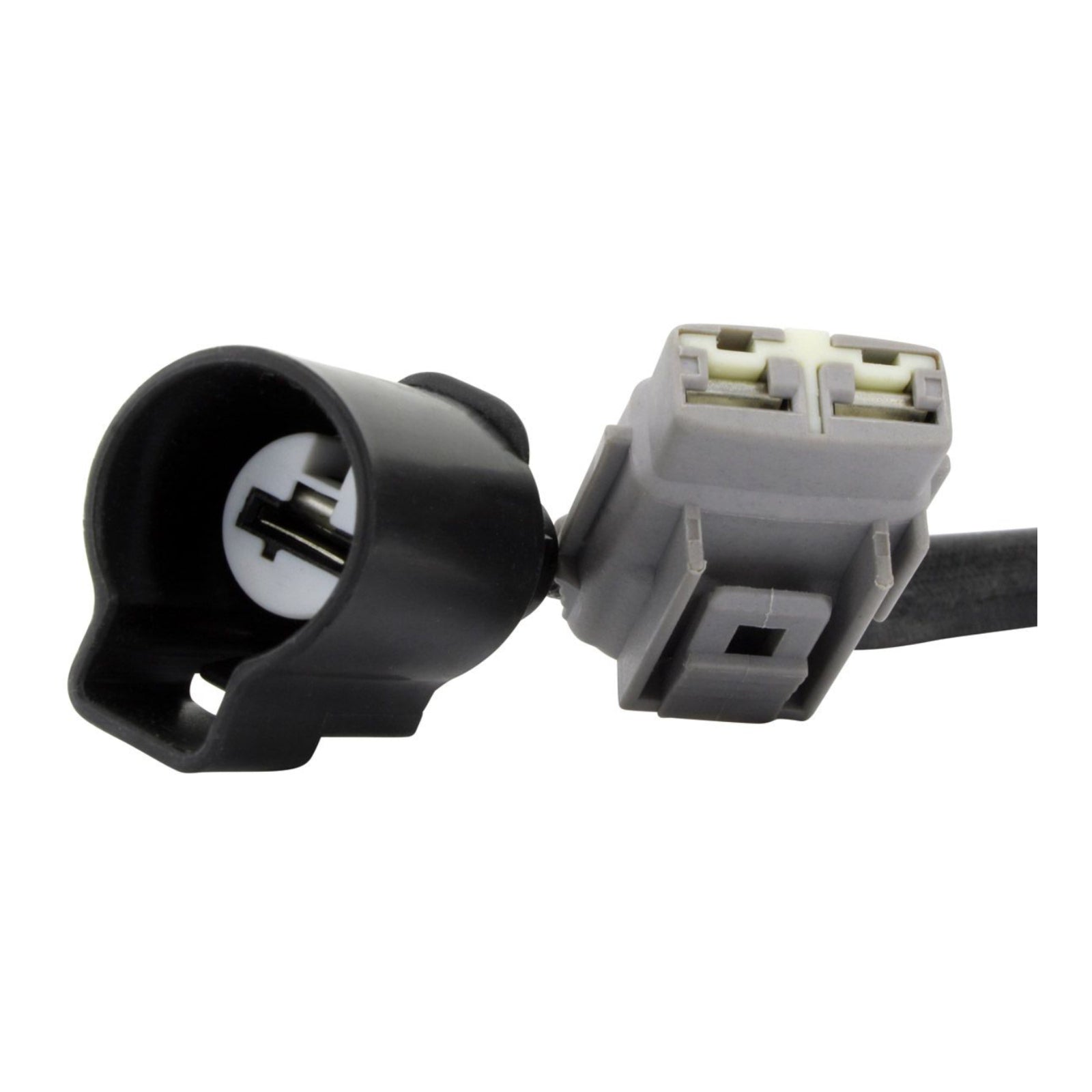

- Connectors included
- Rubber grommet included
- All products shipped are tested
