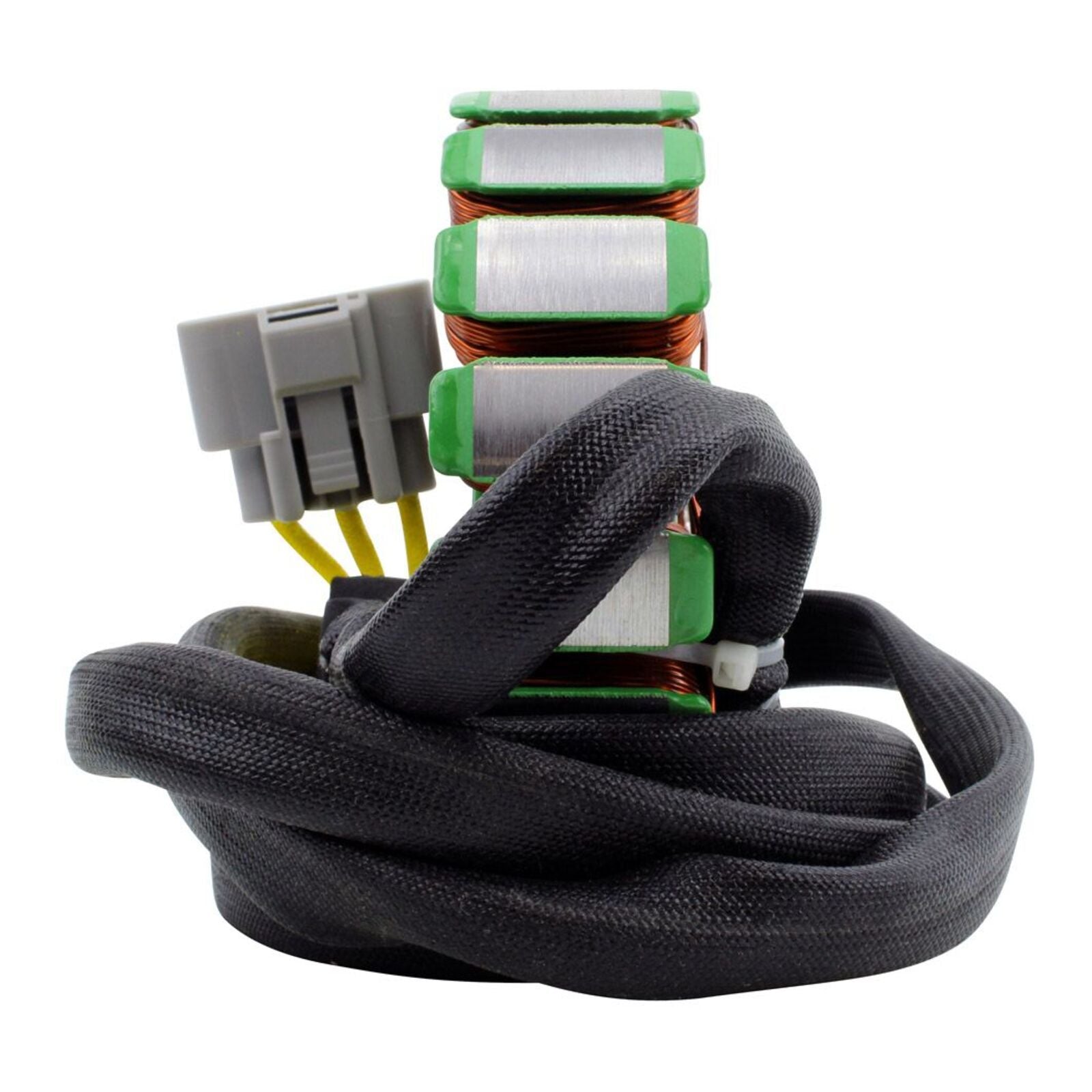

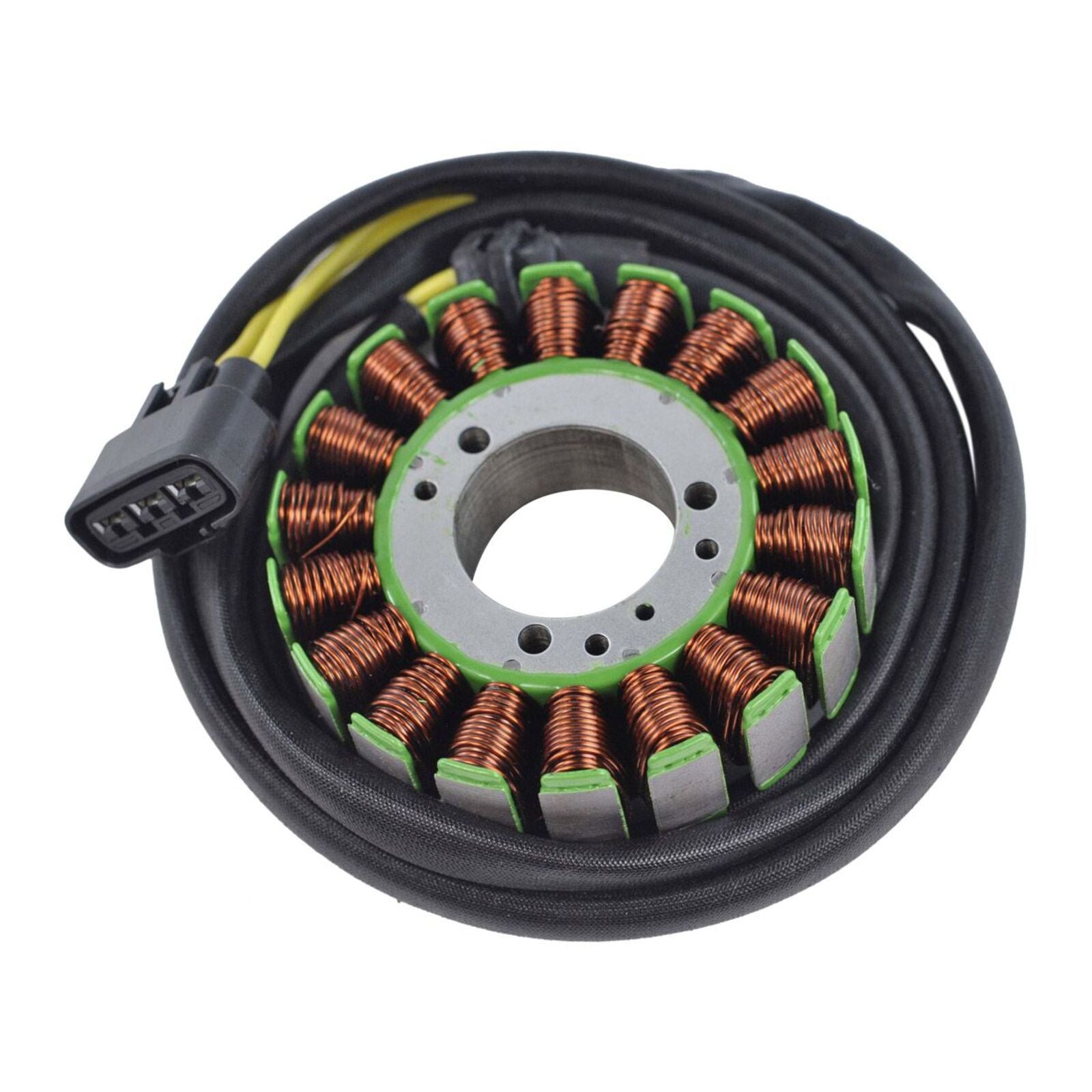

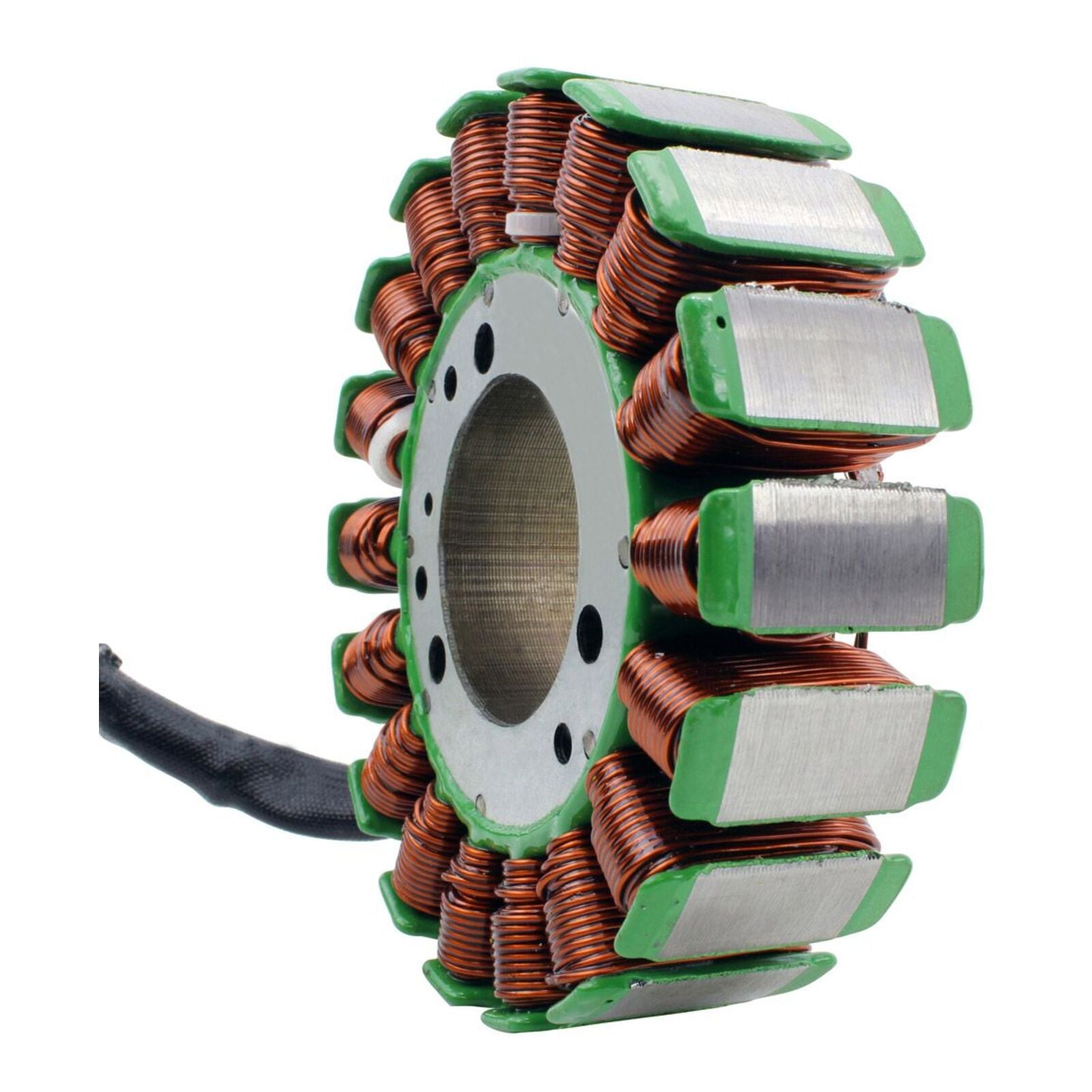

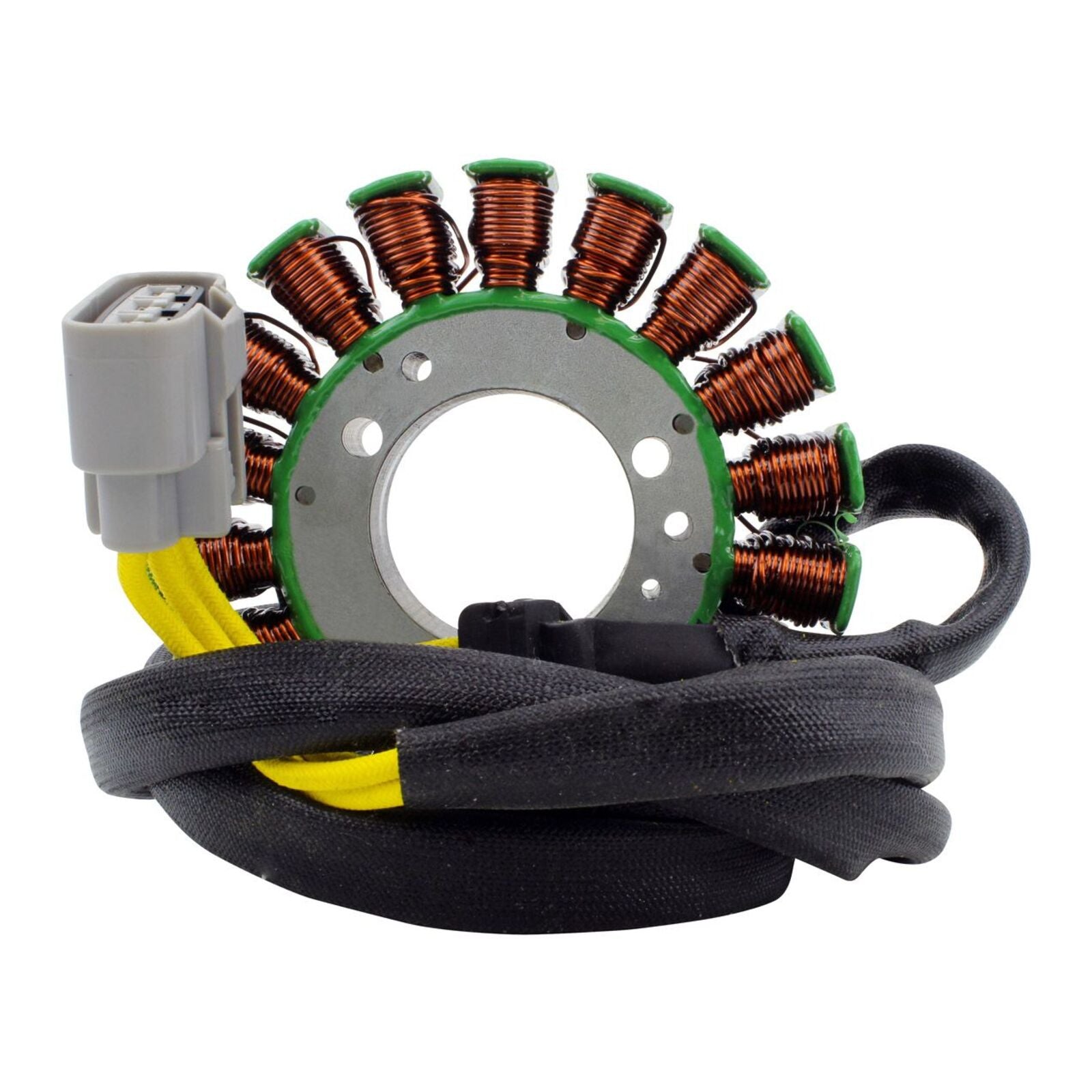

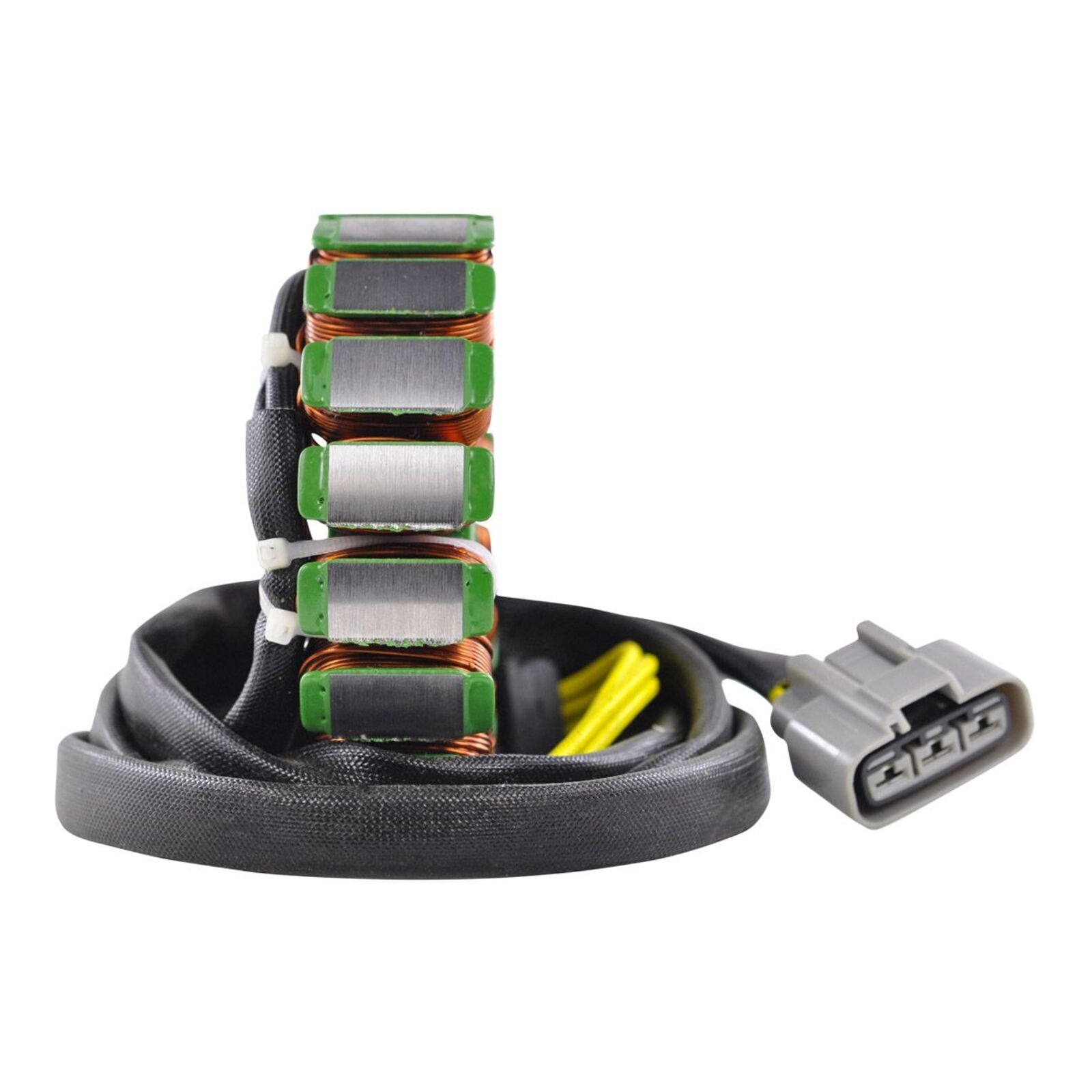

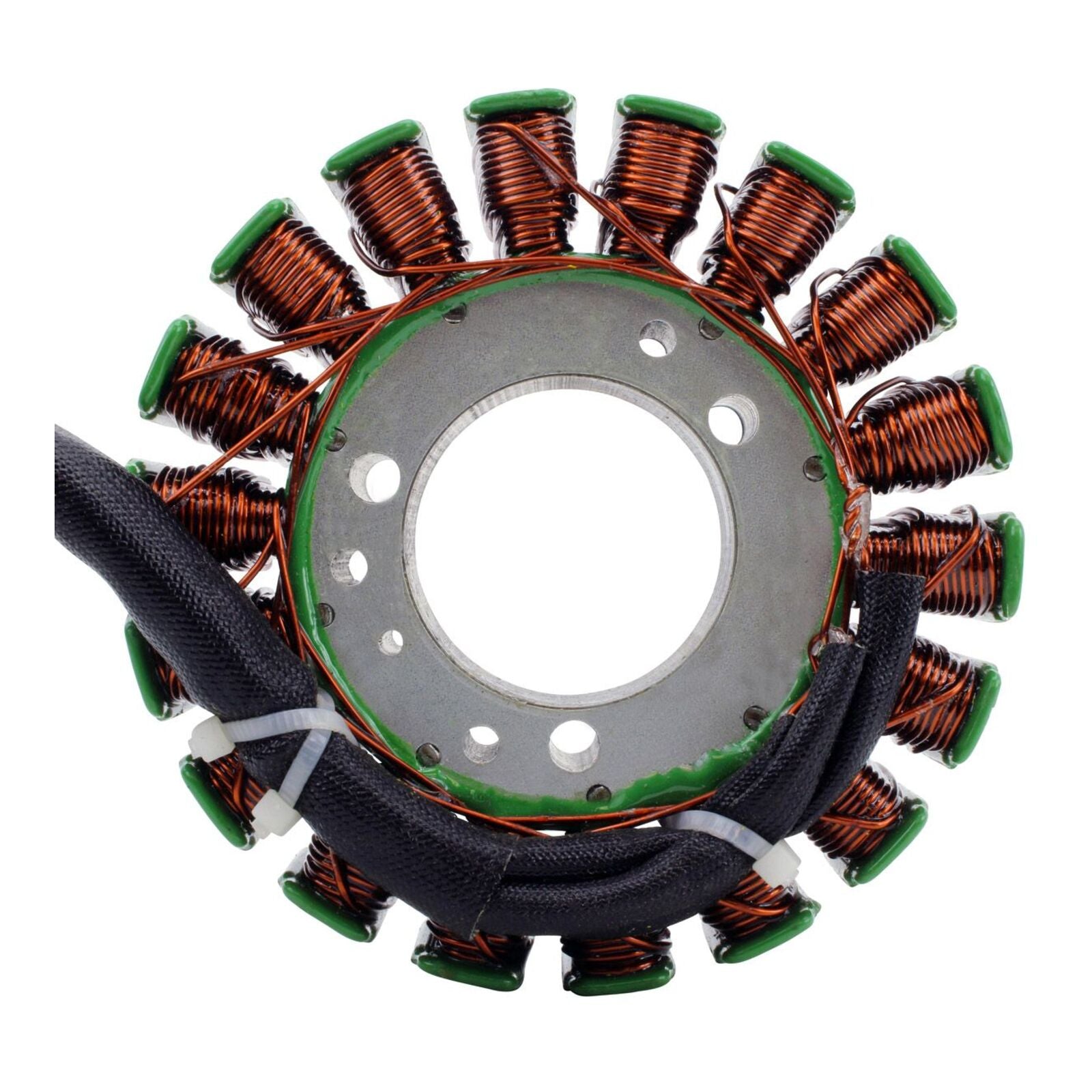

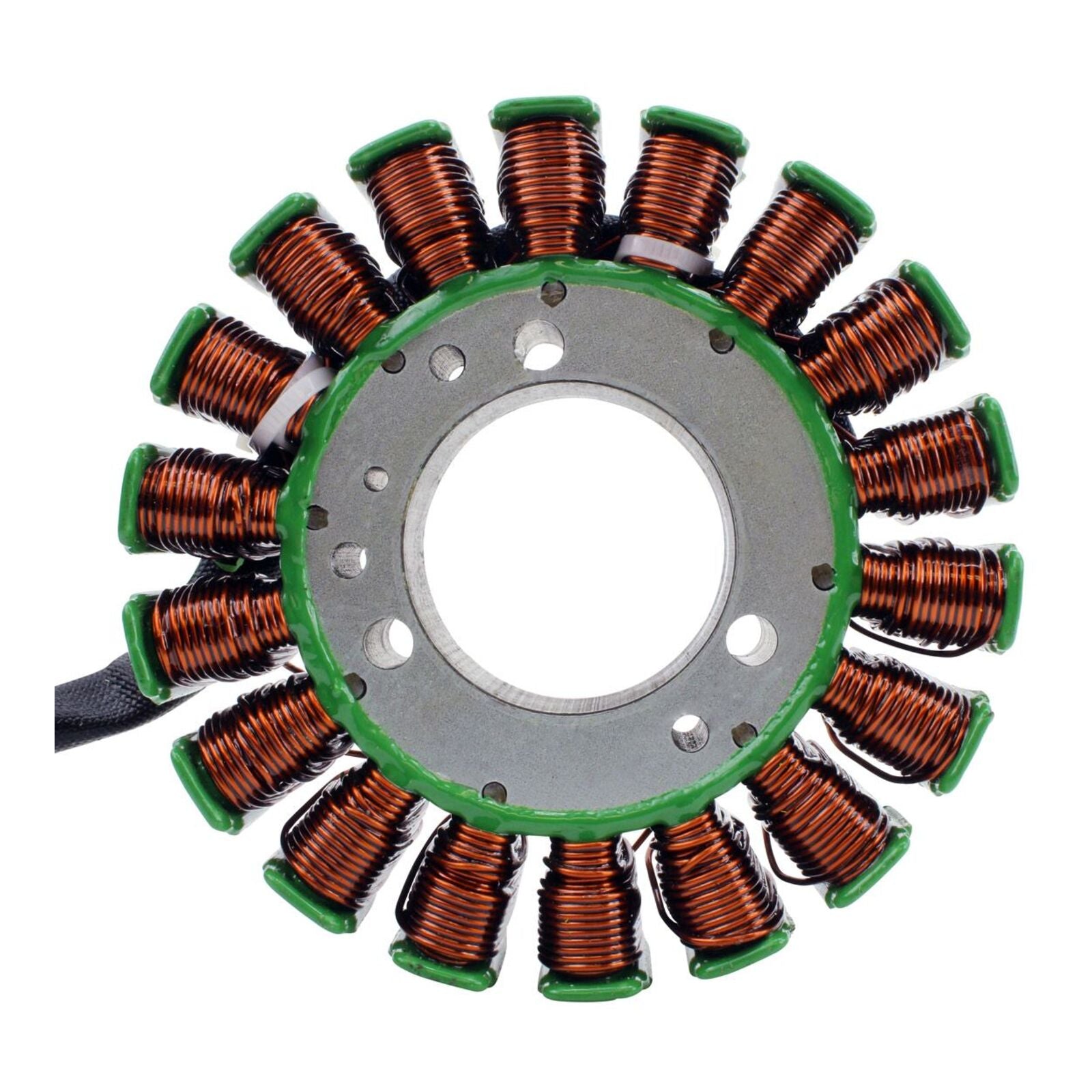

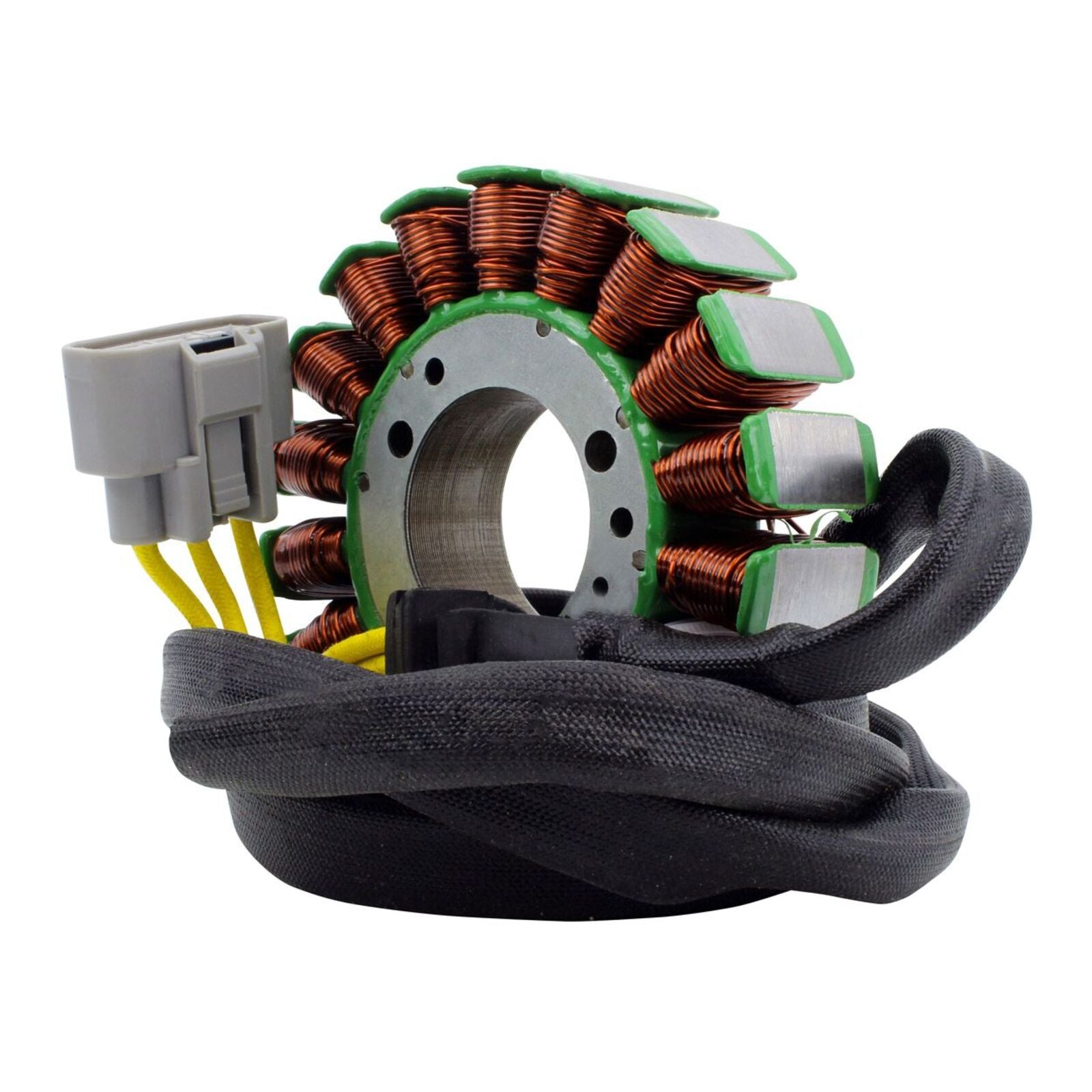

Description
Features:
- 650W
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials.
- Highest grade copper windings, resistant to 200 degrees Celsius.

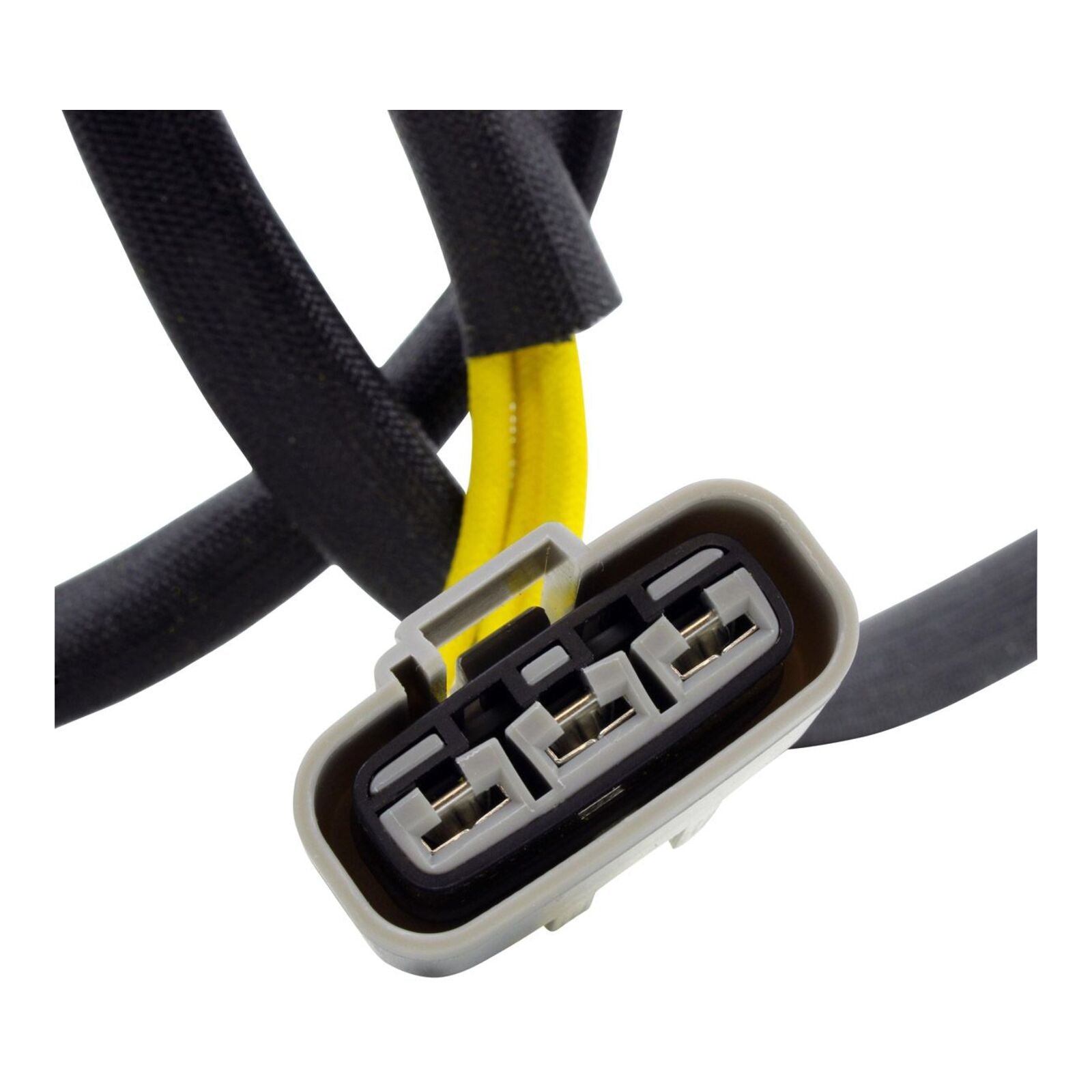

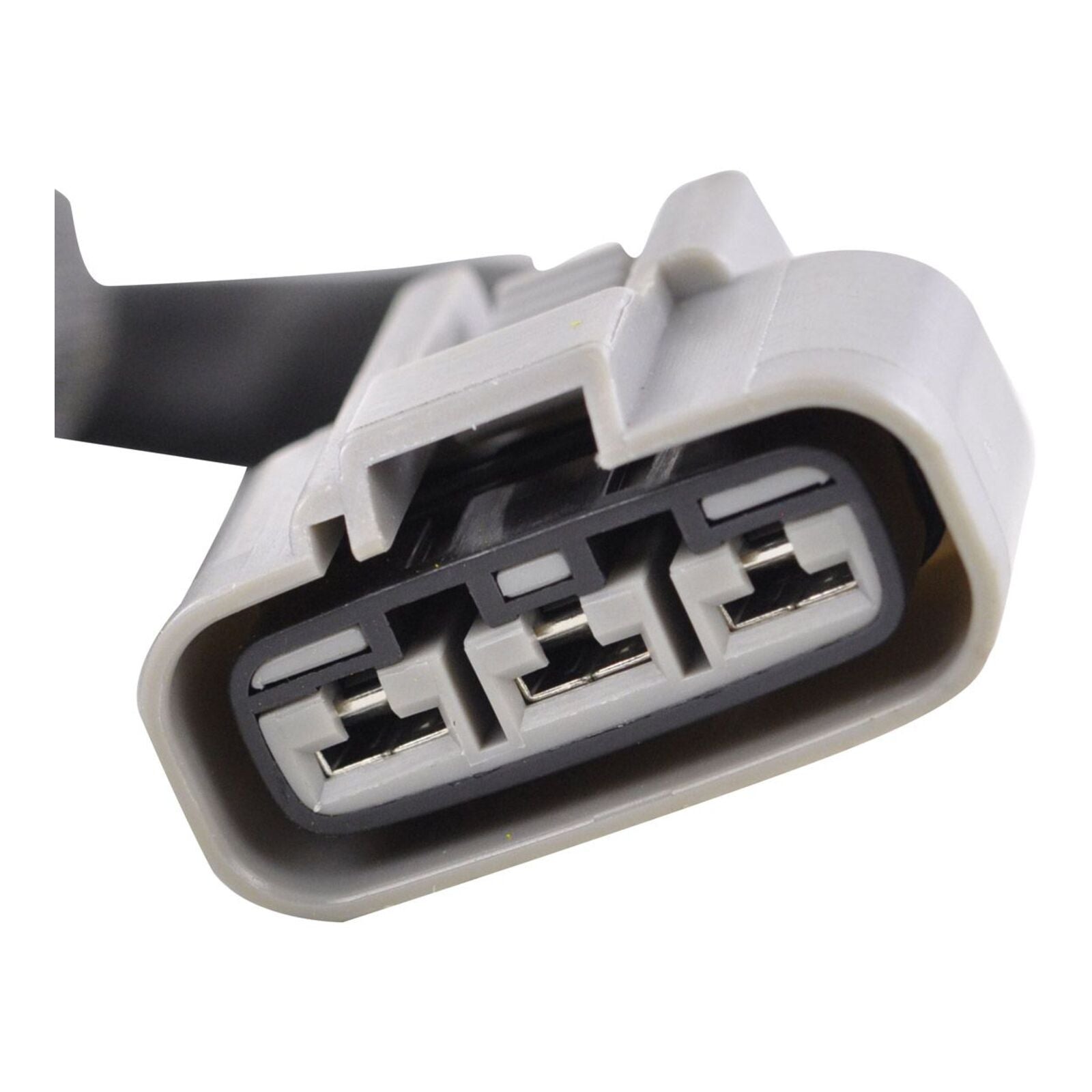

- Connector included.
- Rubber grommet included.
- All products shipped are tested.
Specifications:
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 24 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 1470 mm
Other specifications:
Wattage: 650
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.4 ohms +/-20%
Before installing your new stator:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi- temp dielectric grease on all connectors
The new stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If the new stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible, no less than 0.010’’.
