Description

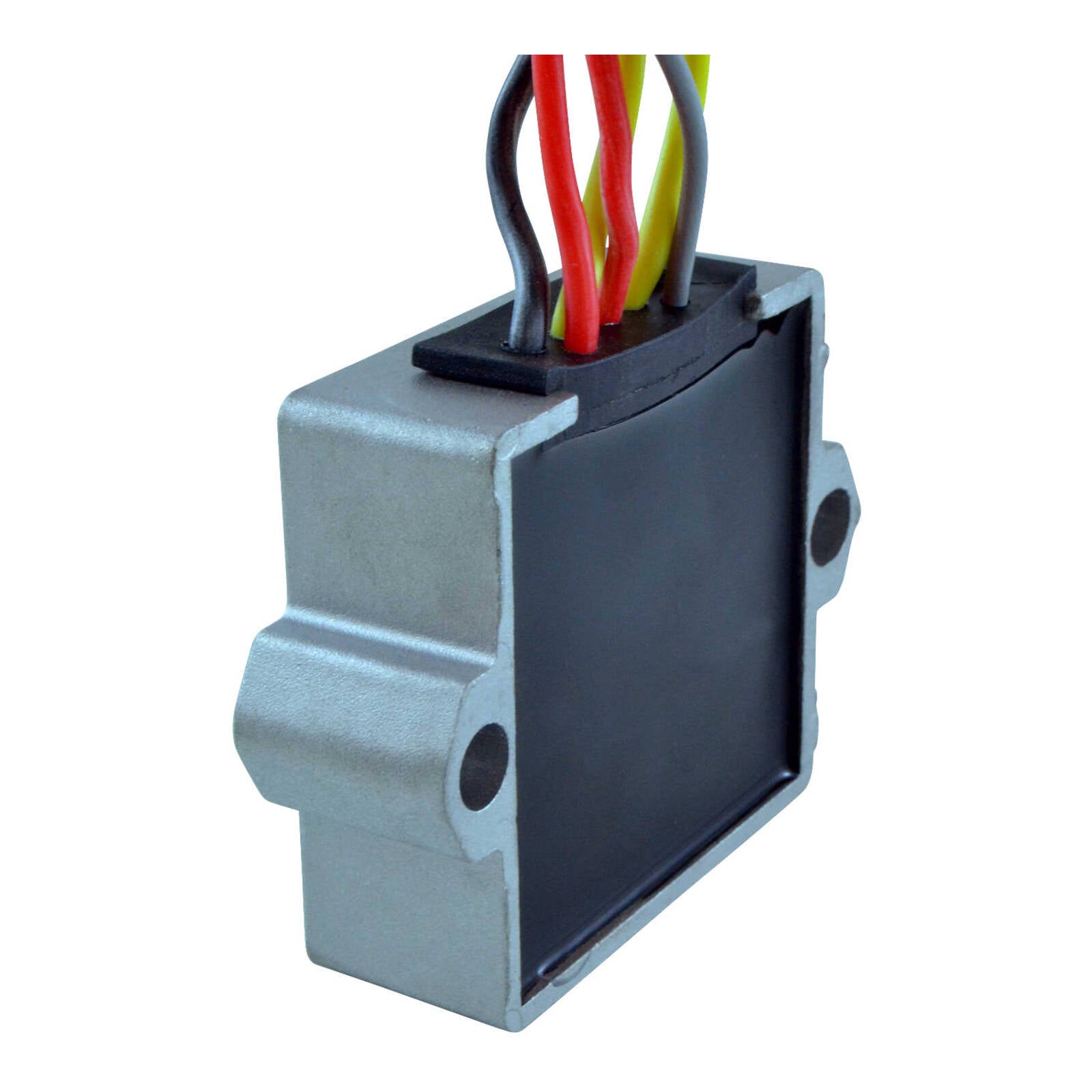

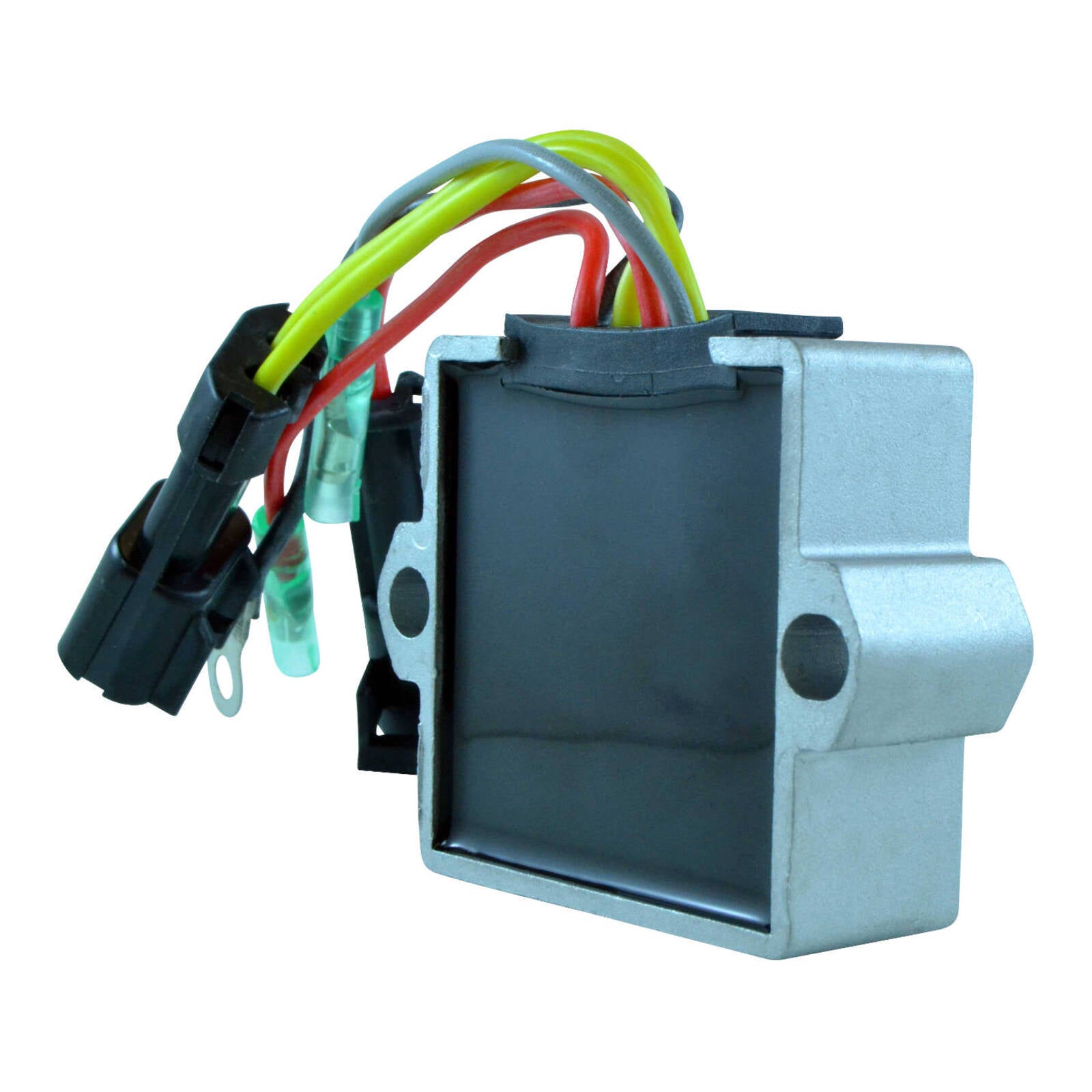

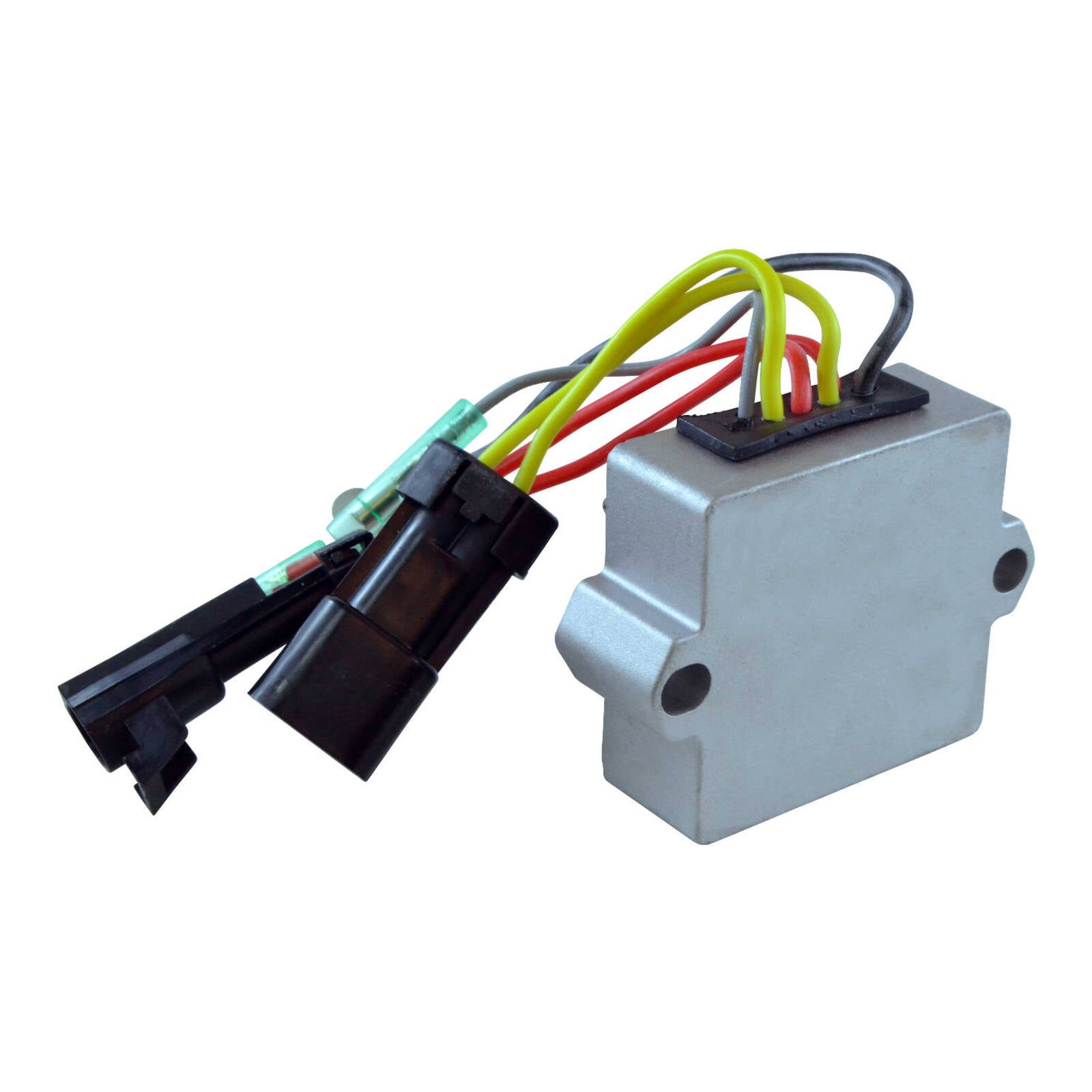

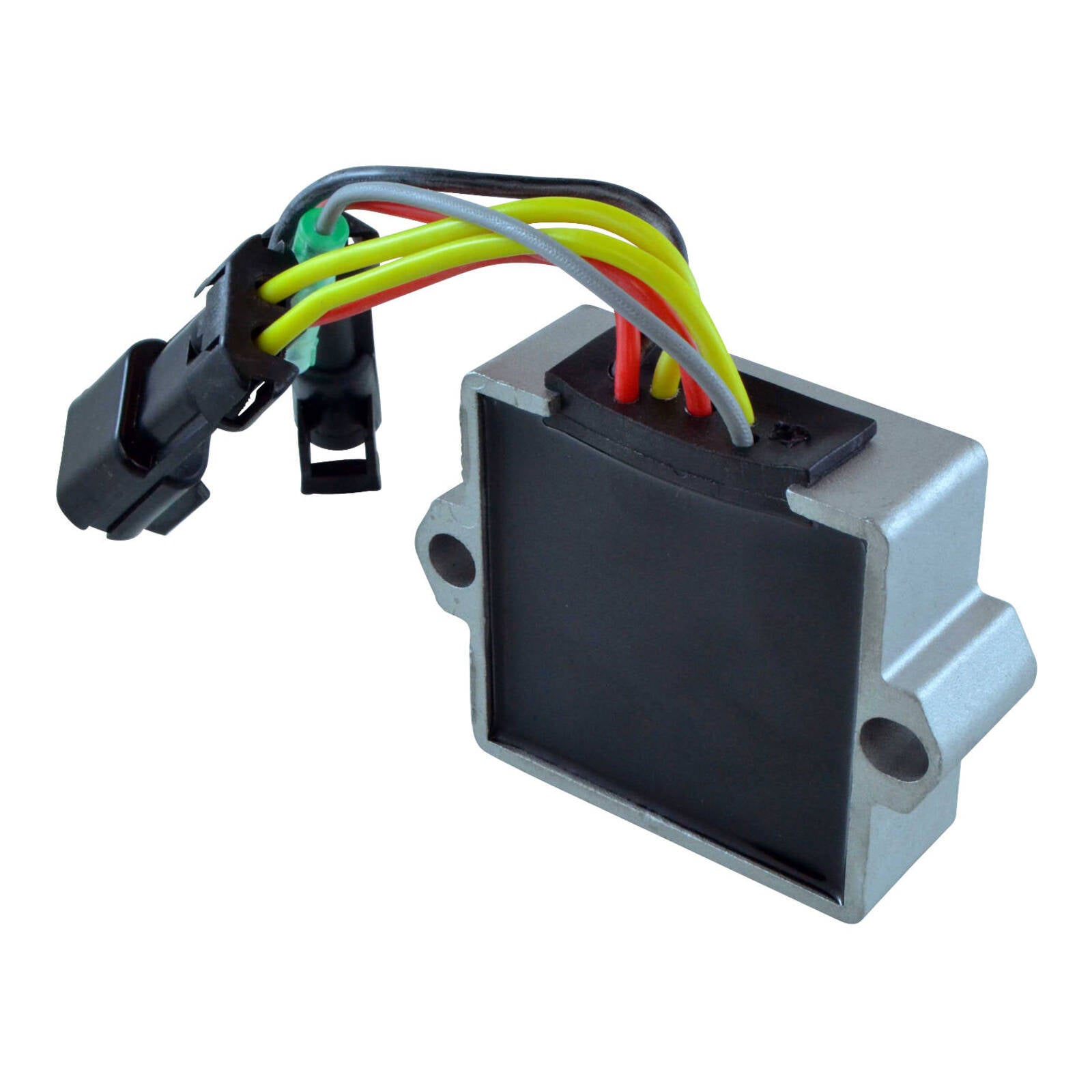

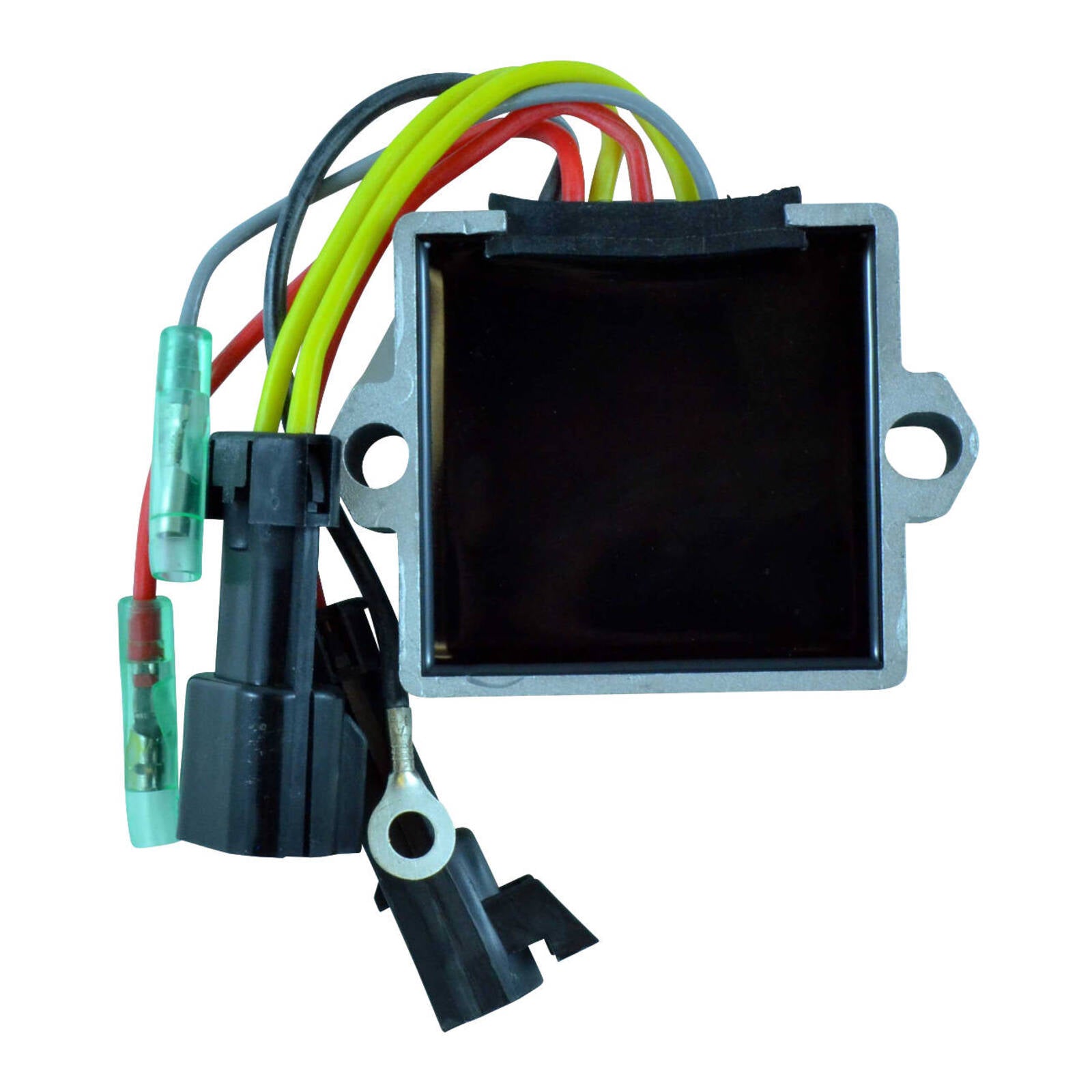

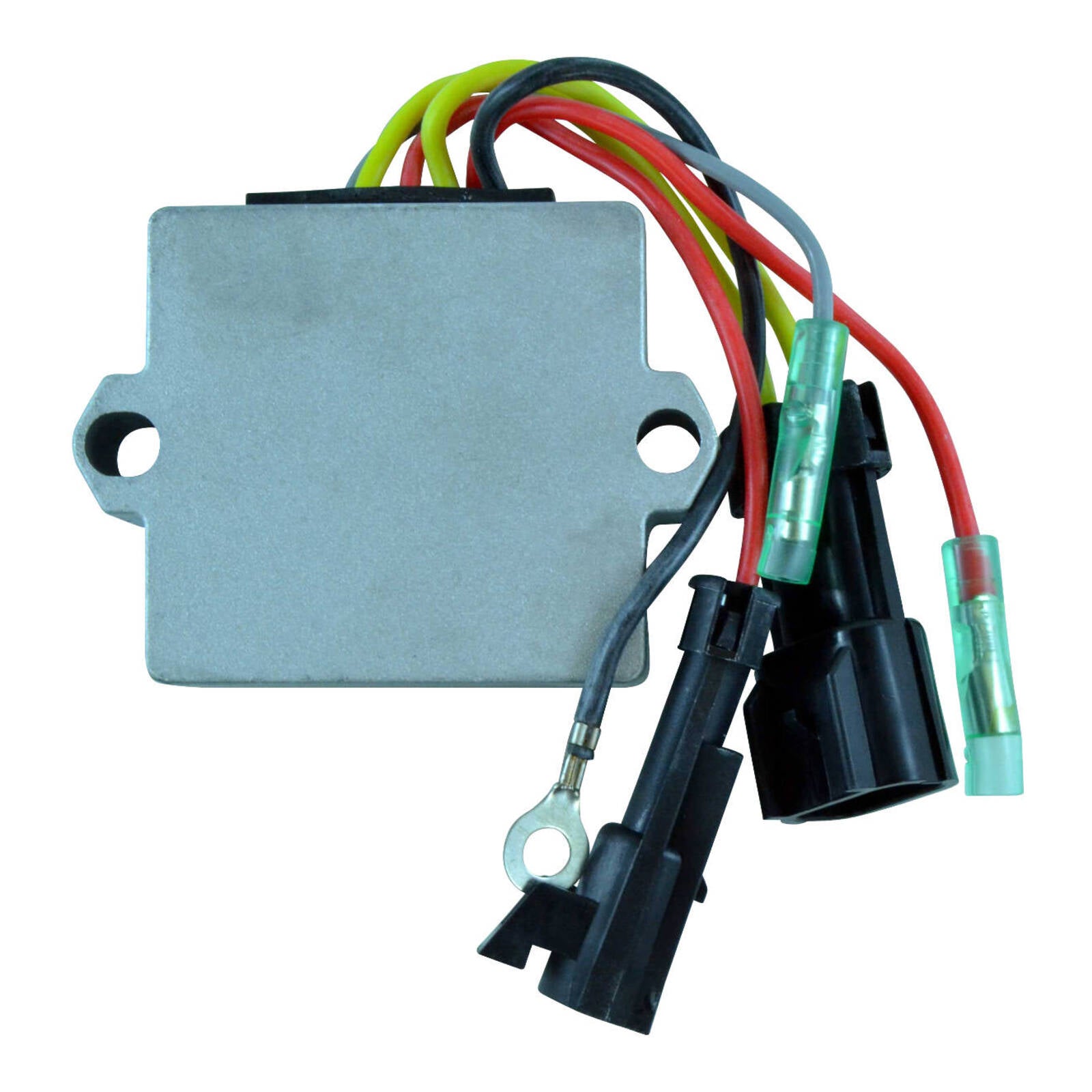

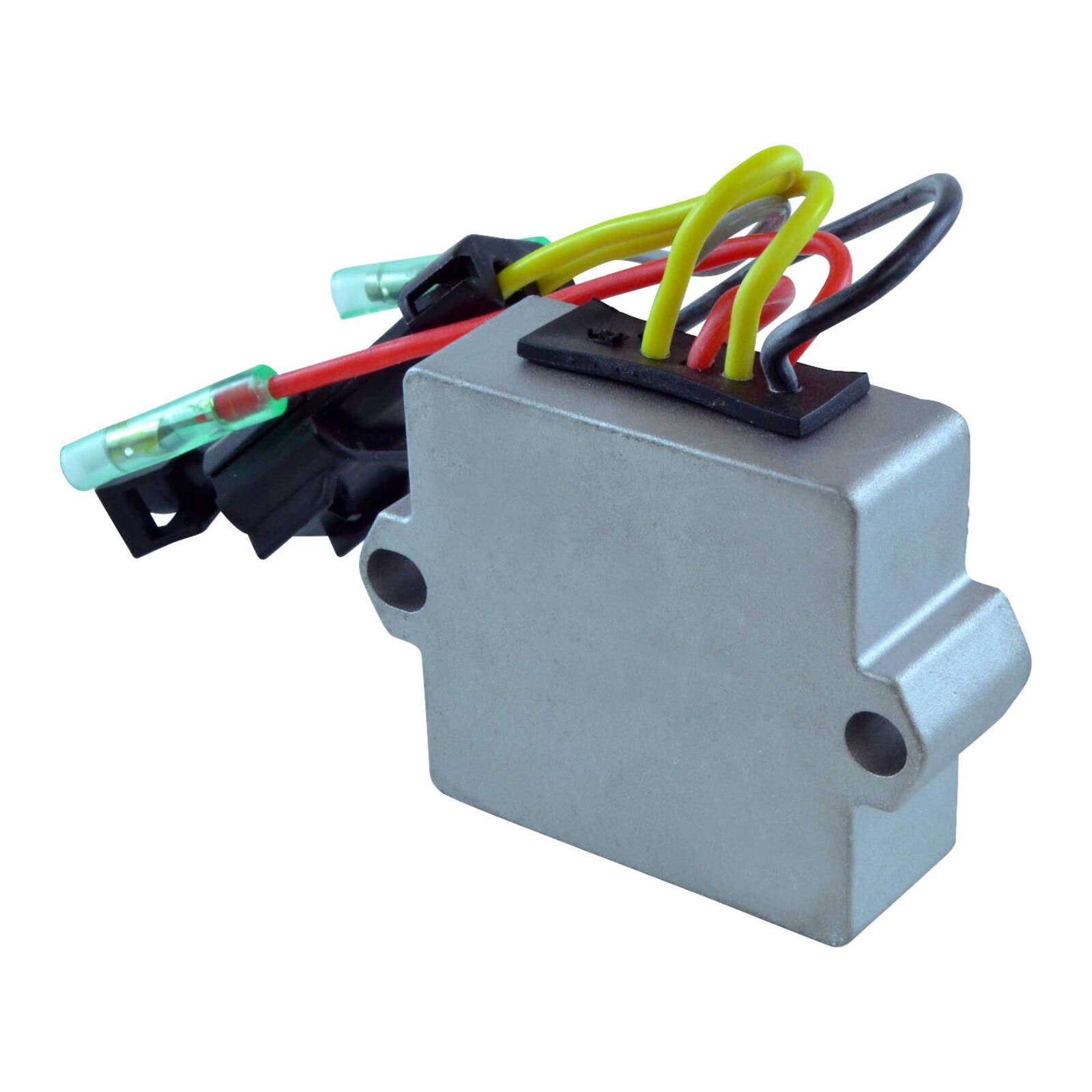

Plug-and-play, aftermarket replacement voltage regulator rectifier from RM Stator. Refer to fitment guide for models.
Dimensions:
- Width: 65mm
- Length: 65mm
- Height: 25mm
- Stator wires length: 140mm
- Battery wires length: 160mm
Other specifications:
- Number of wires: 6
- Number of plugs: 5
- Number of pins: 6
- Minimum Charging Voltage: 14.5V +- 0.5V
- Maximum Charging Current: 50A/500W
- Open Circuit Voltage: 15V
- Operation Temperature: -20° to 85°
Details:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
- All products shipped are tested
