Description

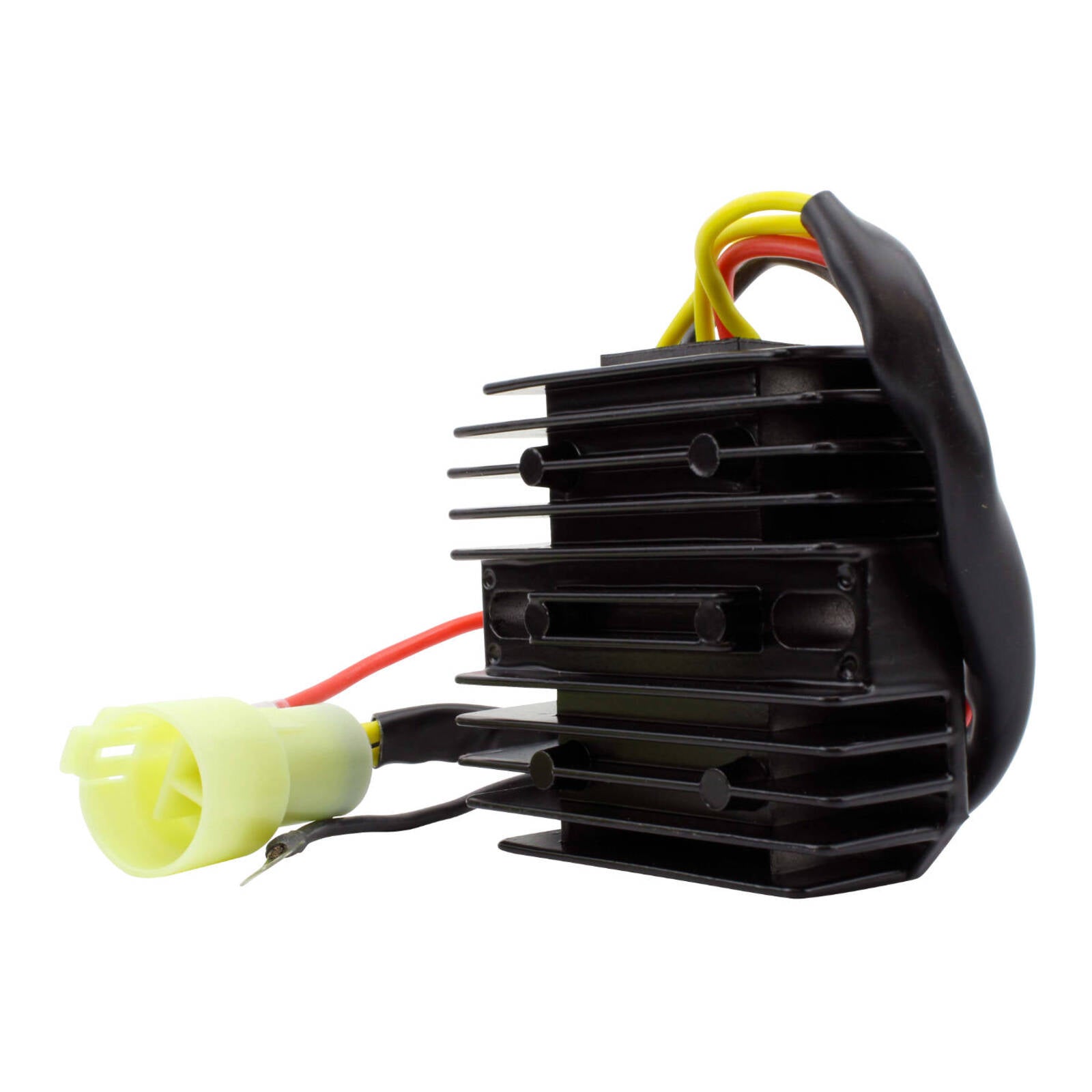

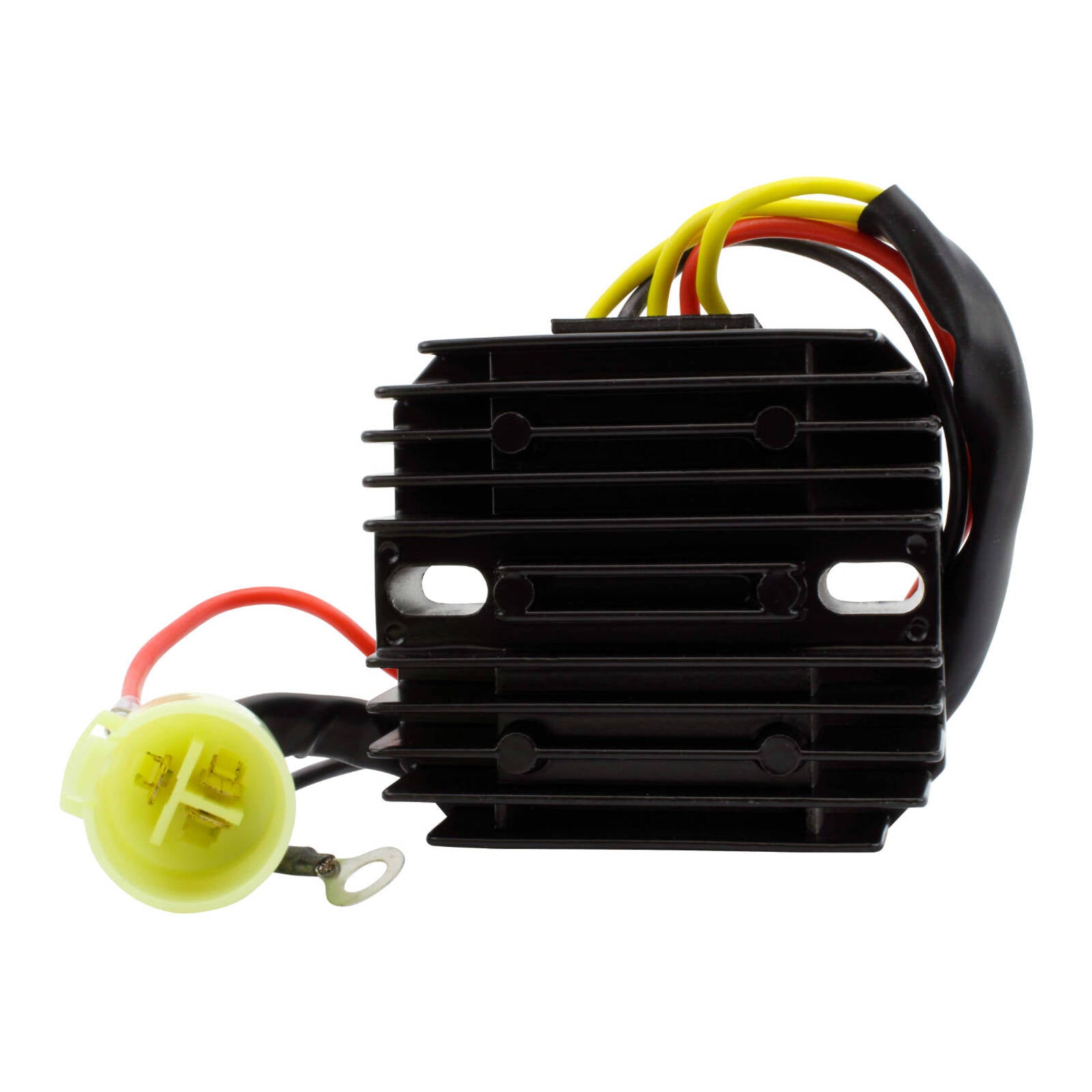

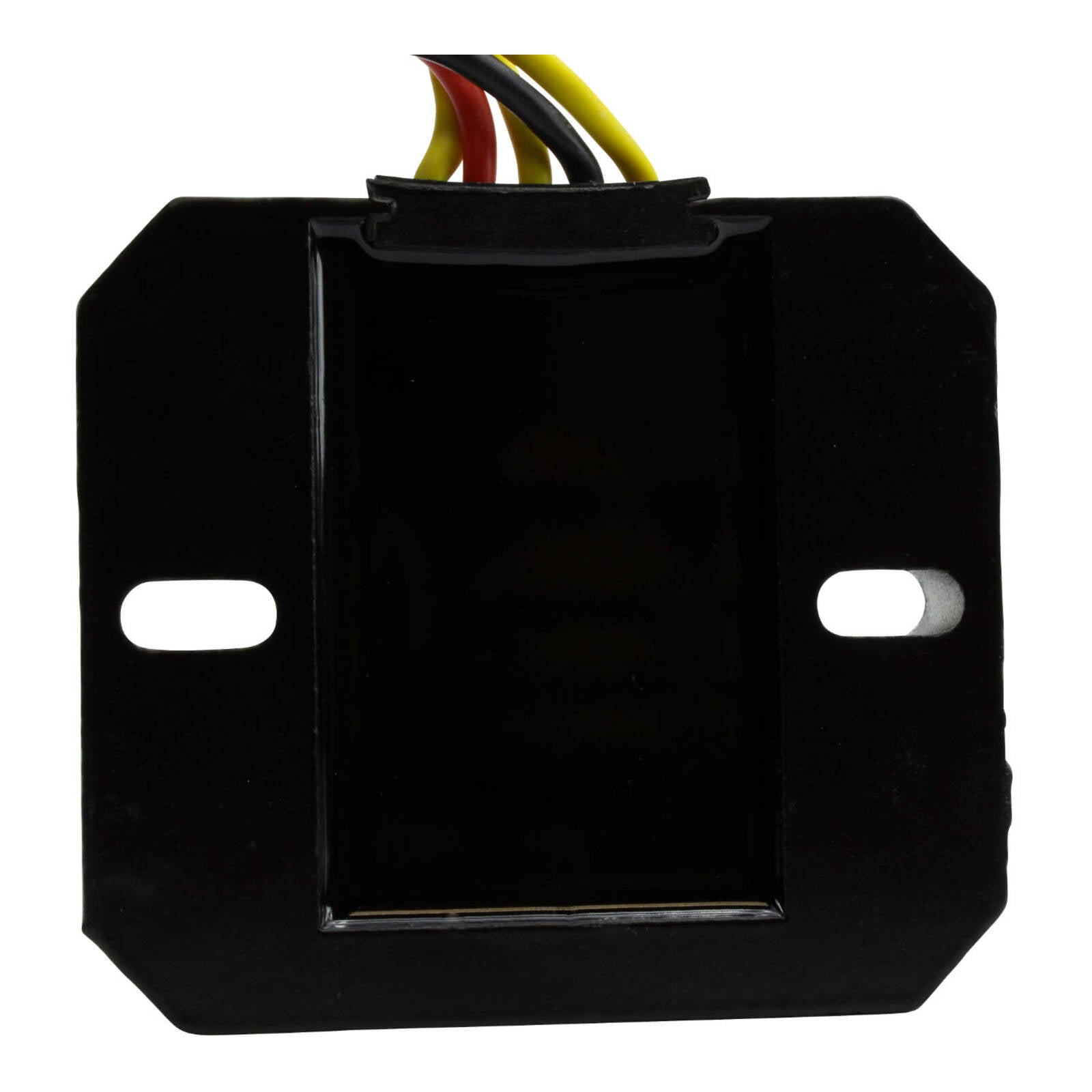

Brand new aftermarket Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher-grade of electric components
- The quality exceeds the OEM equipment
- All products shipped are tested

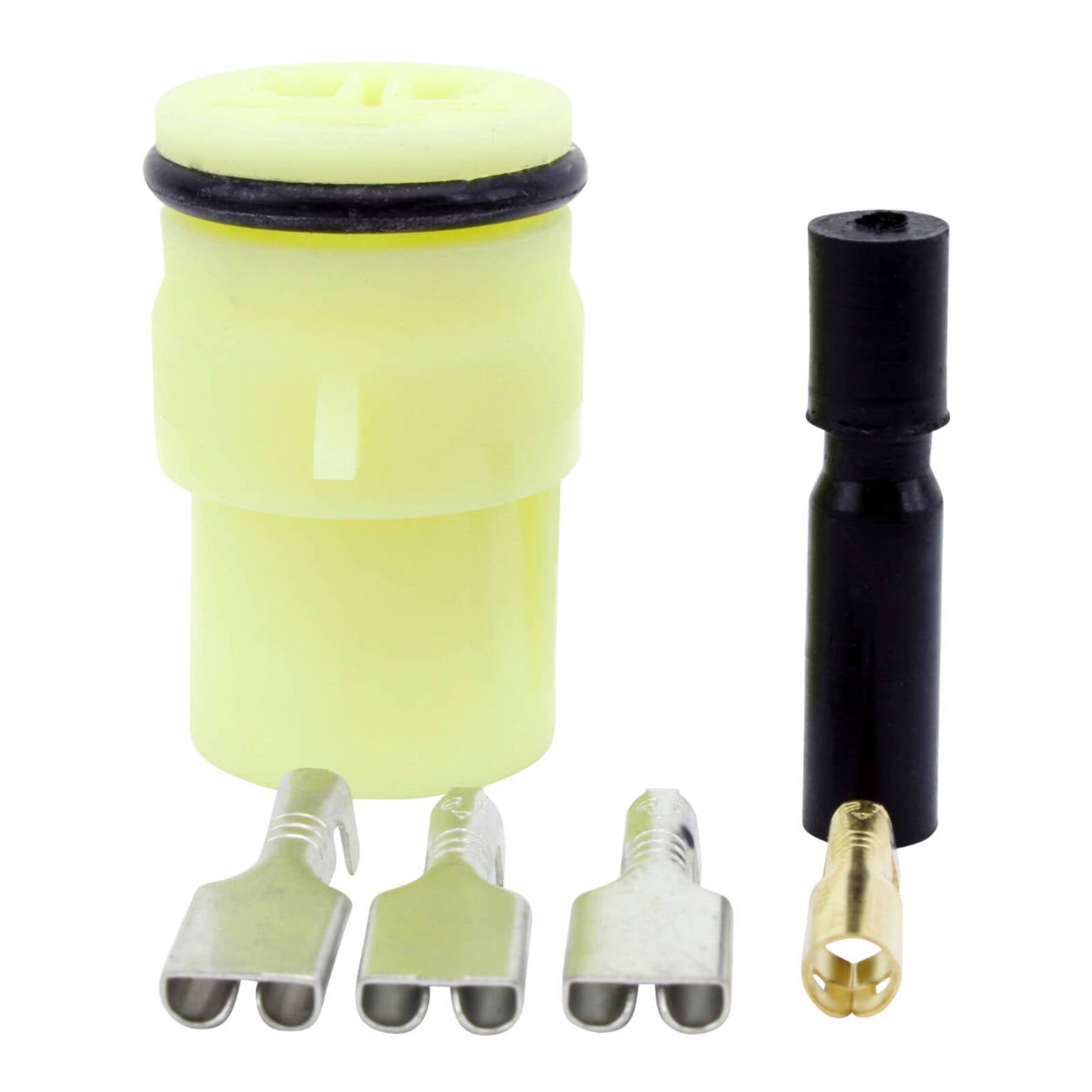

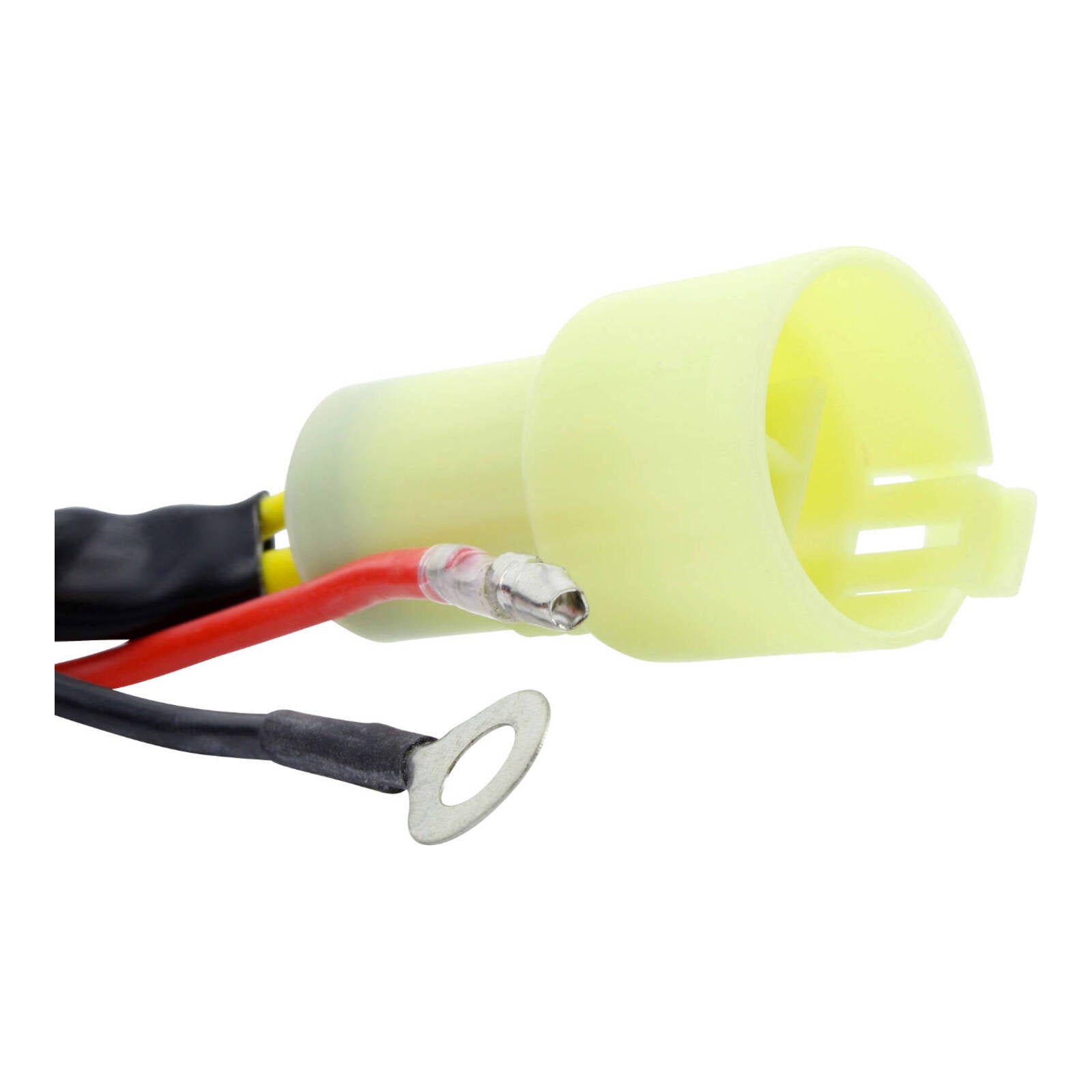

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.
Specifications:
Dimensions: p>
- Width: 80 mm
- Length: 90 mm
- Height: 26 mm
- Wires length: 280 mm
- Fixation holes center to center: 65 mm
Other specifications:
- Number of plugs: 1
- Number of pins: 5
- Number of wires: 5
- Minimum Charging Voltage: 14.5 V +- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20° to 85°
