Description

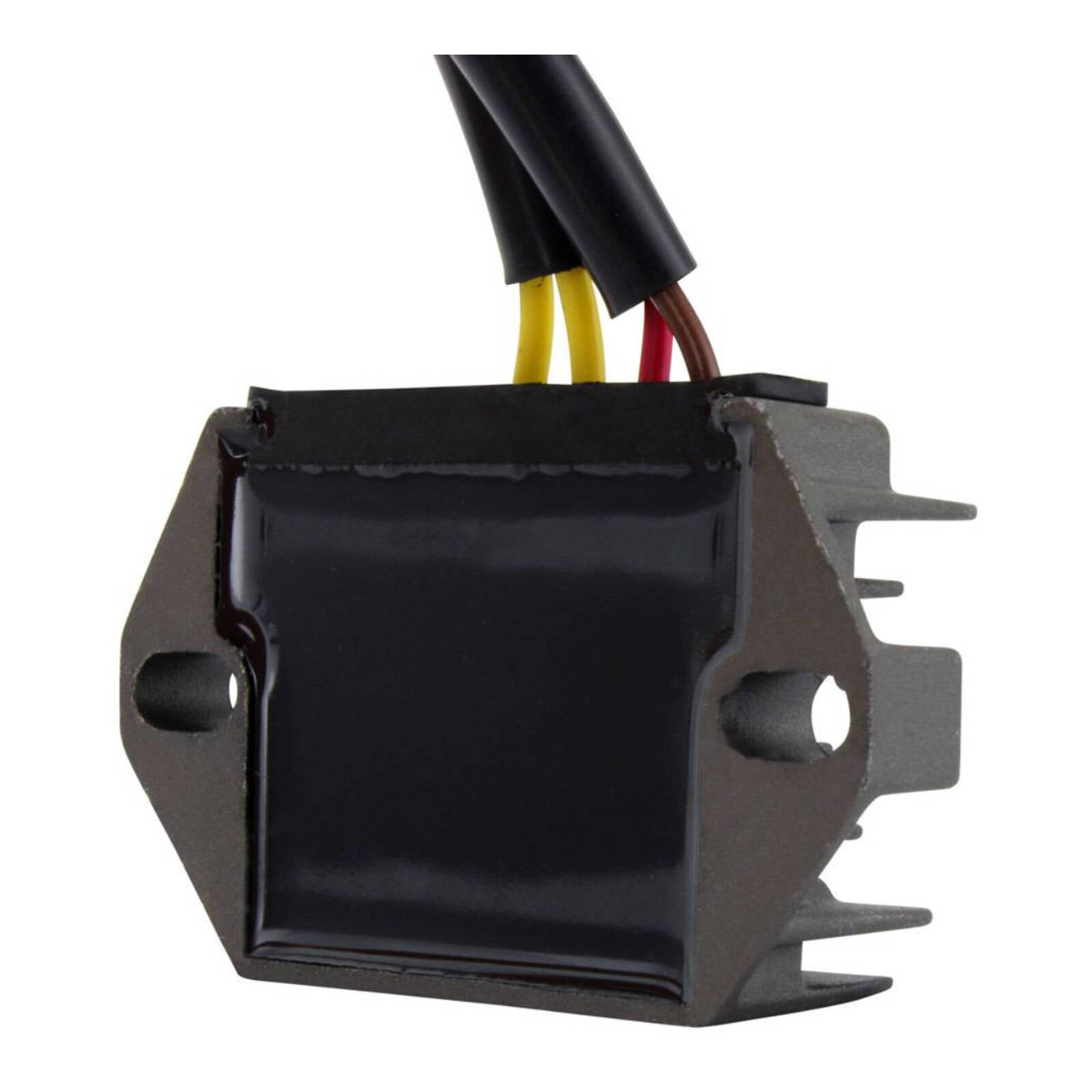

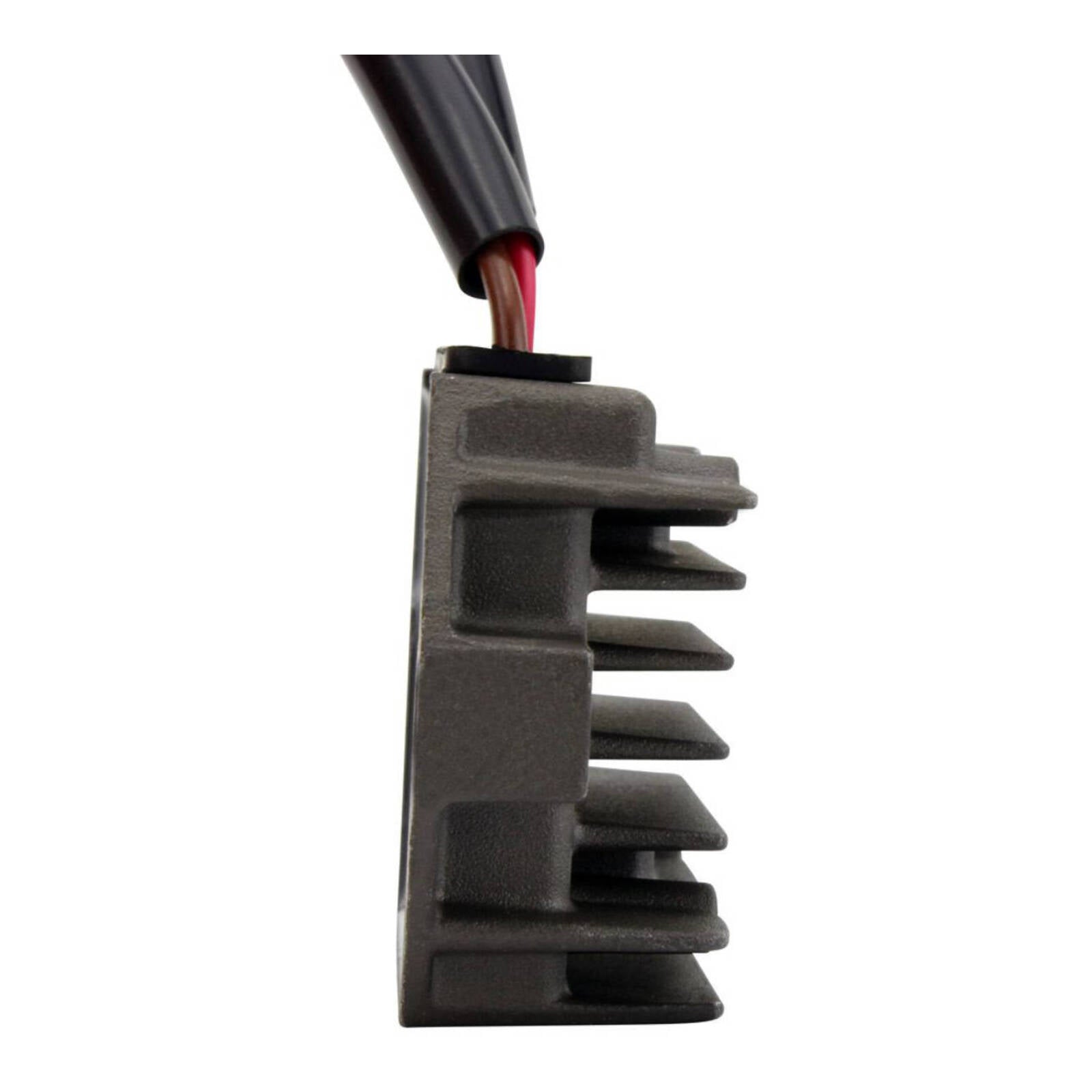

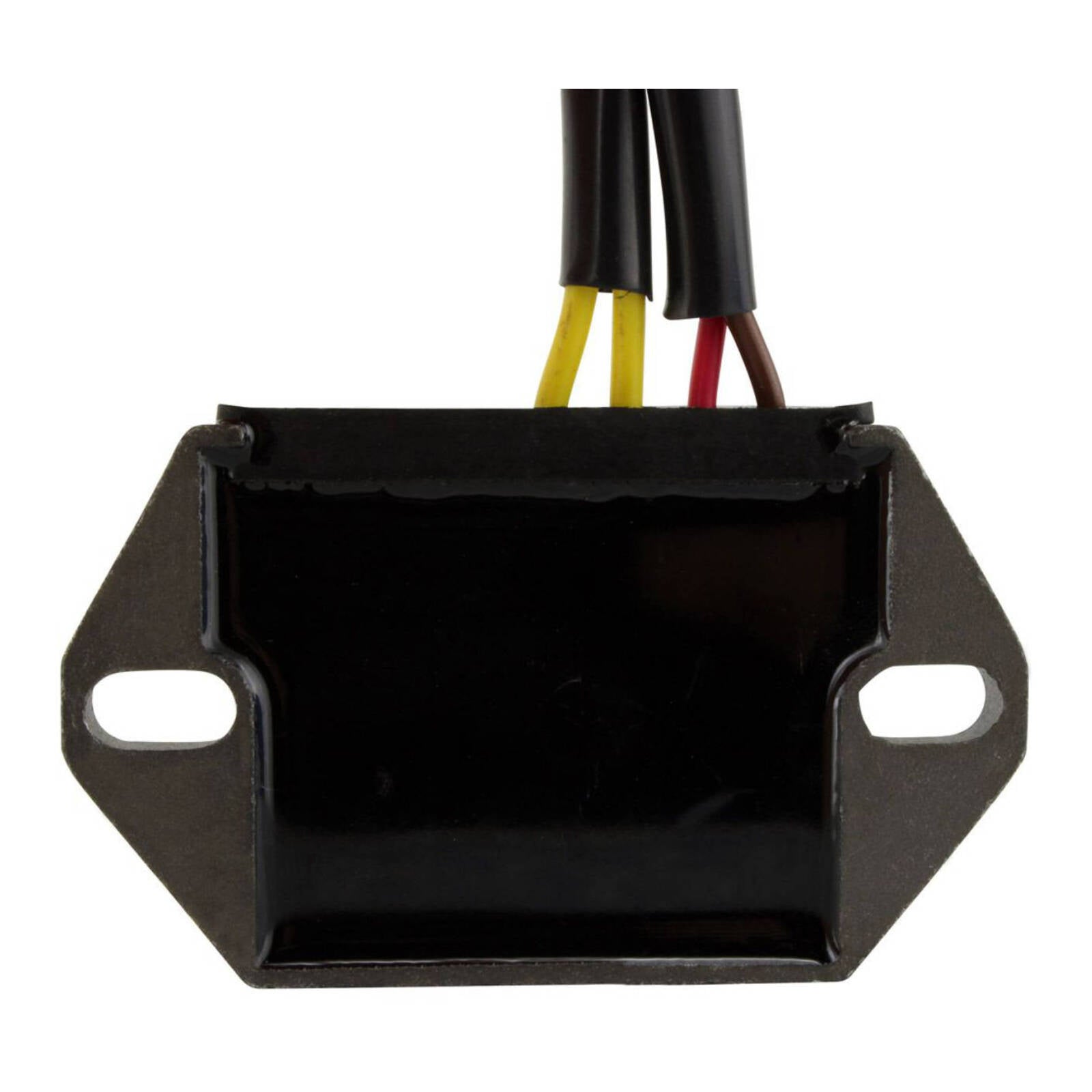

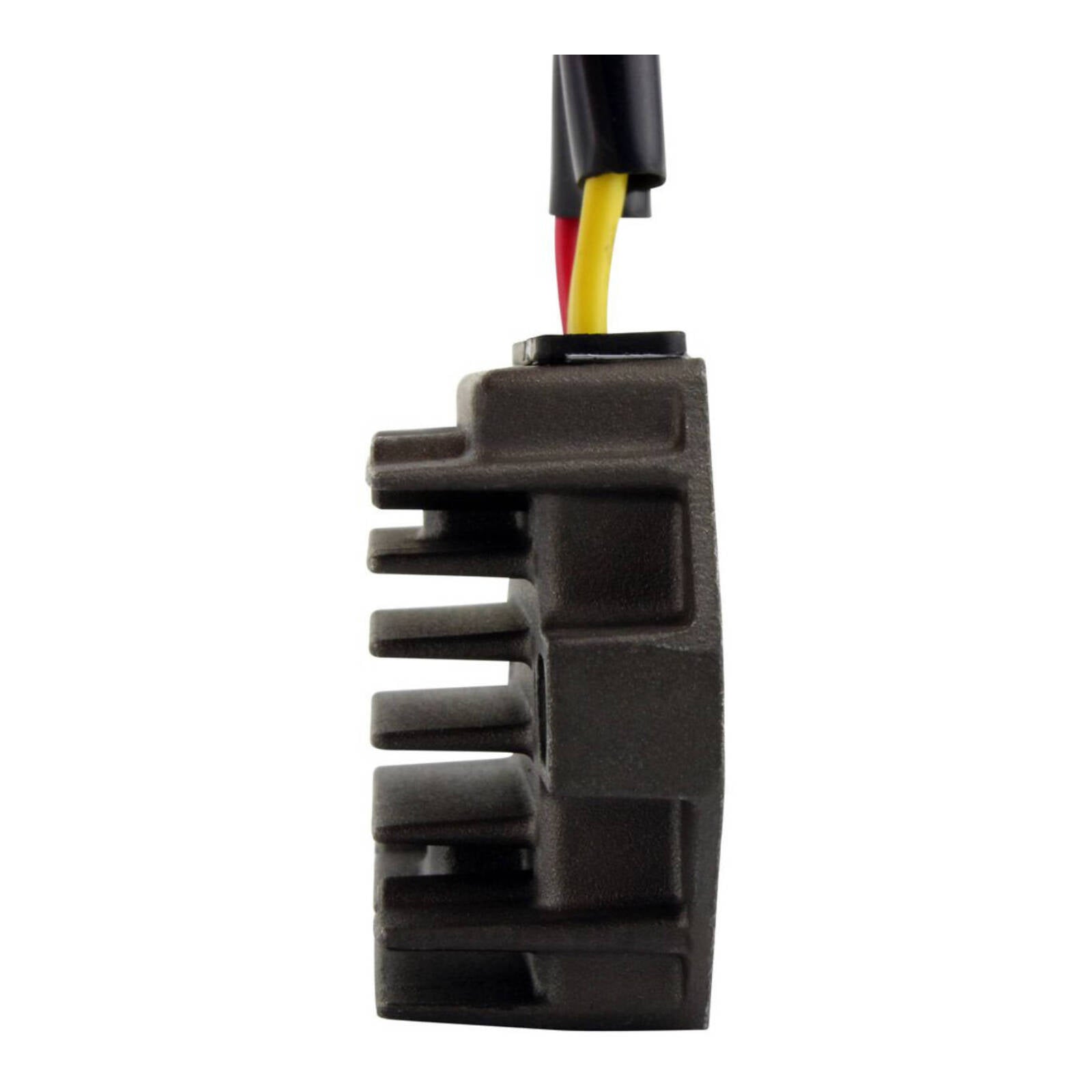

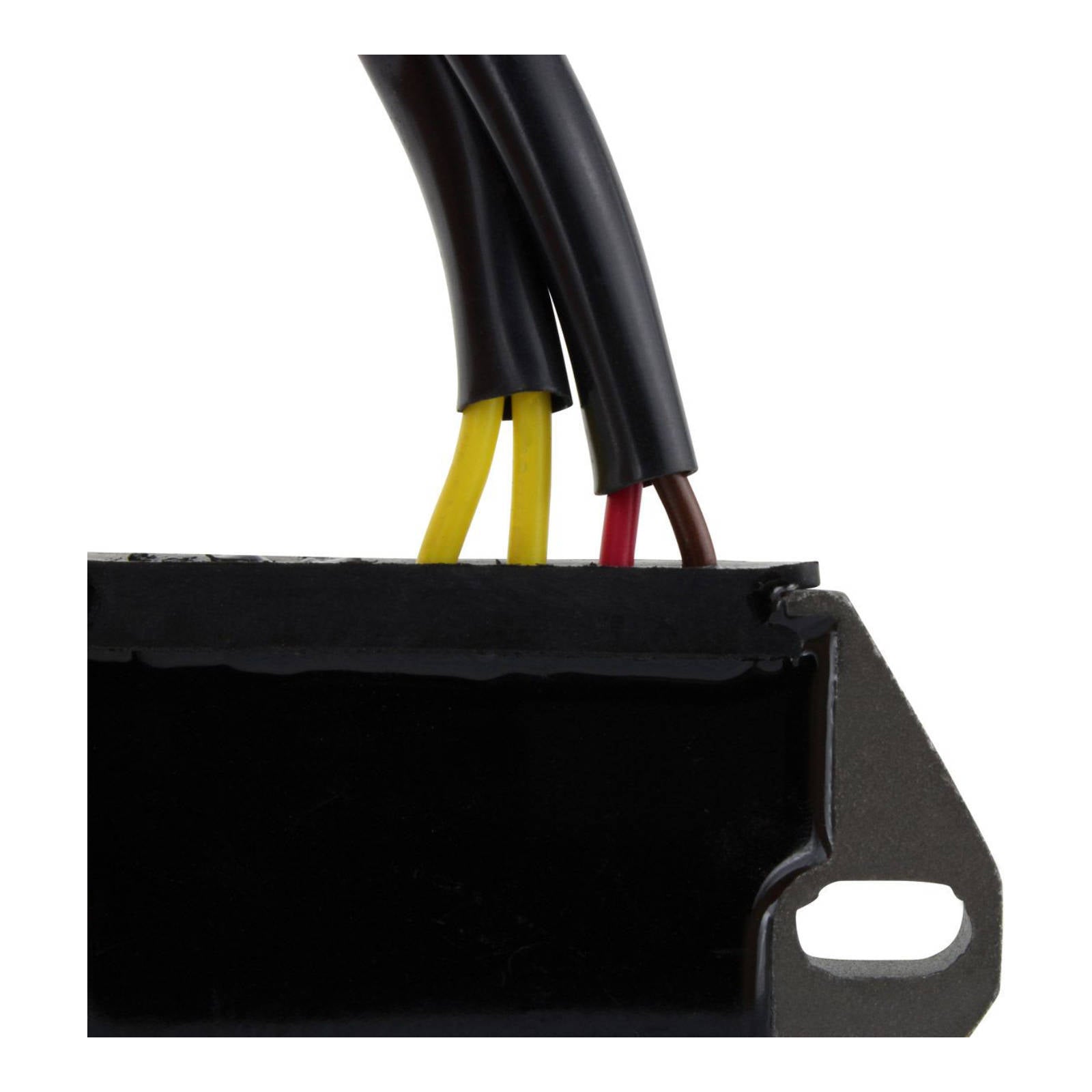

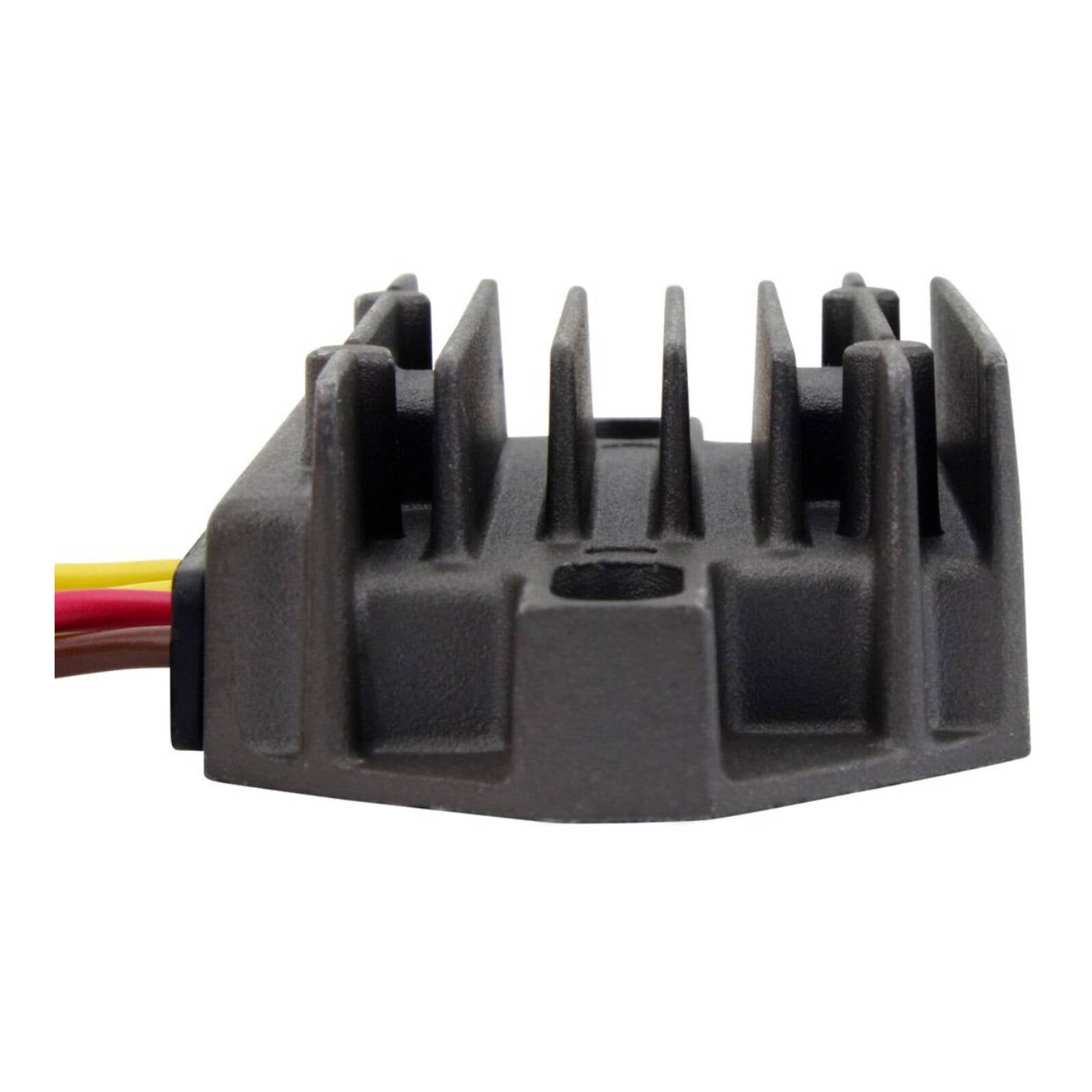

Brand new aftermarket Voltage Regulator Rectifier.
- Direct replacement to the original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- The quality exceeds the OEM equipment
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.
Before installing the new Voltage Regulator Rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Dimensions:
- Width: 44 mm
- Length: 76 mm
- Height: 22 mm
- Wires length: 90 mm
- Distance between fixation holes centre to centre: 60 mm
Other specifications:

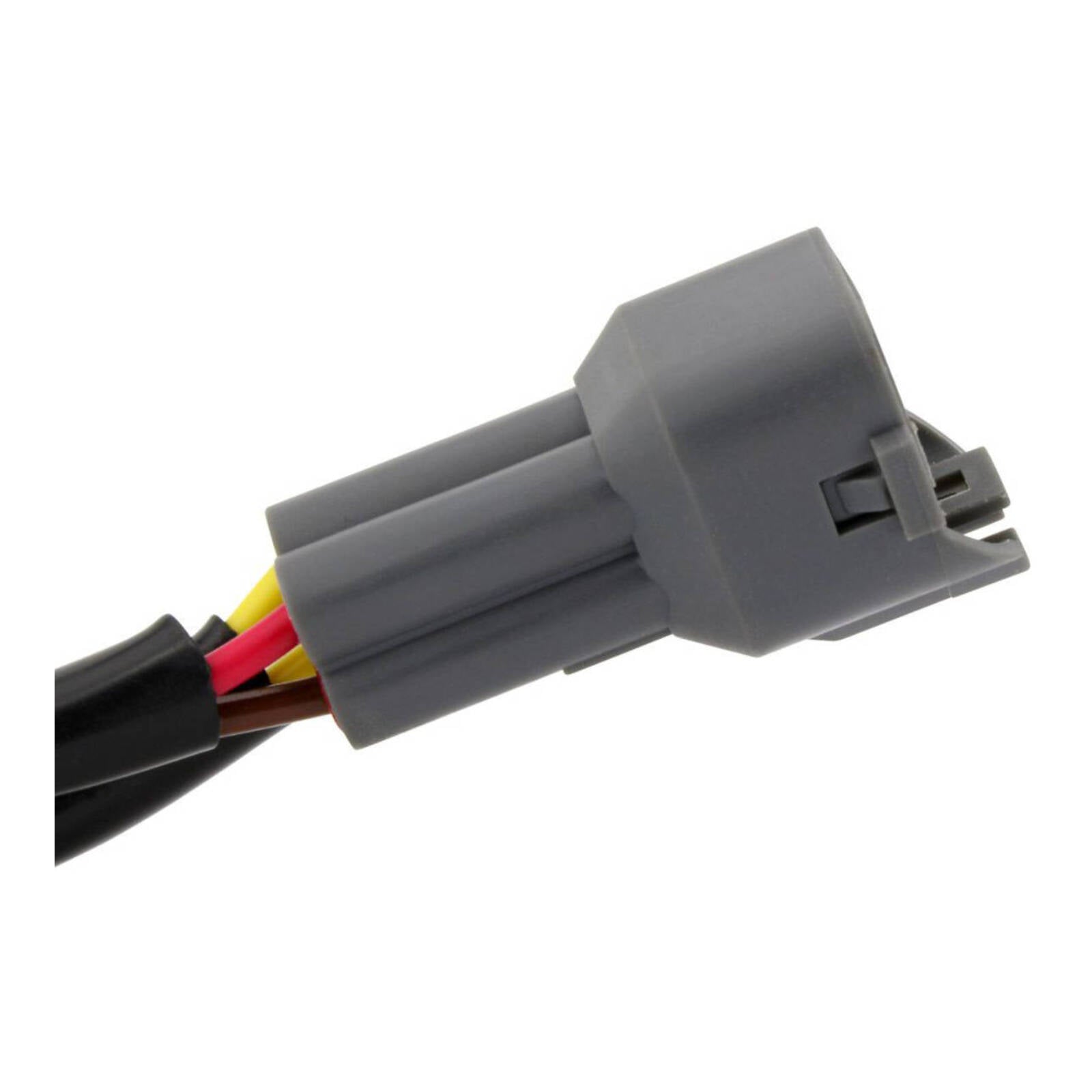

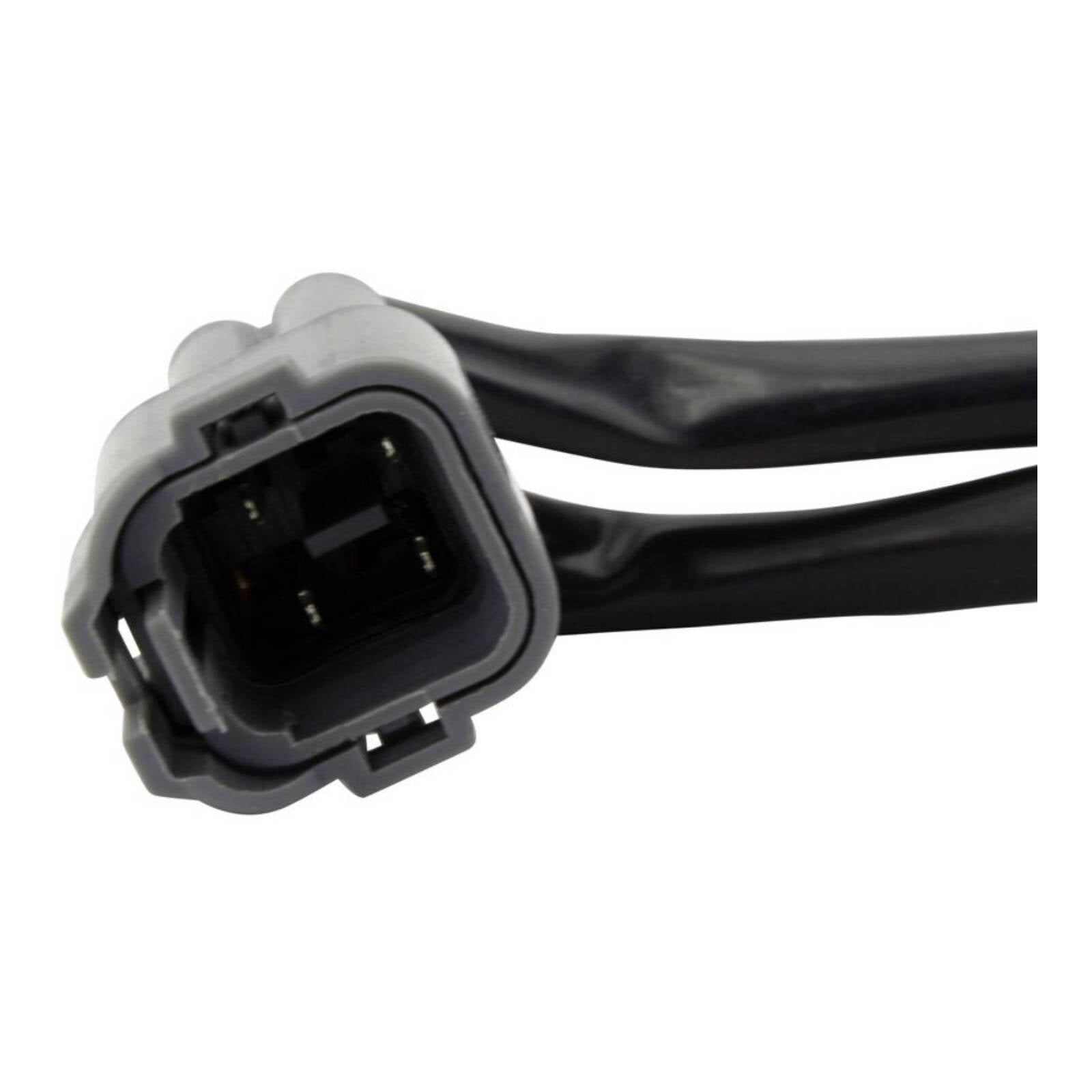

- Number of plugs: 1
- Number of pins: 4
- Number of wires: 4
- Minimum Charging Voltage: 14.5 V +/- 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C
