Description

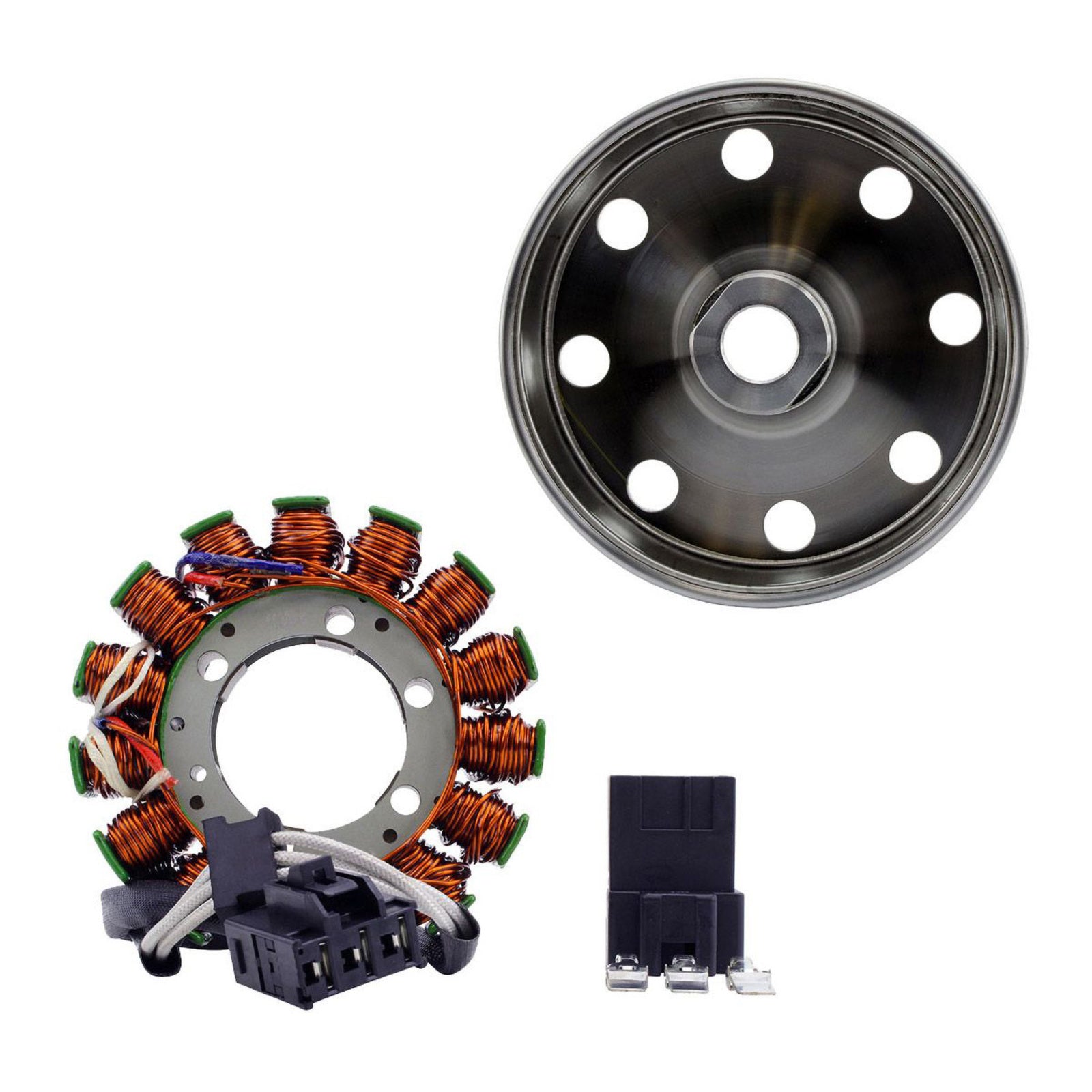

Brand New kit Flywheel + Generator Stator
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All shipped products are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Generator Stator Dimensions:
- Interior diameter: 42mm
- Exterior diameter: 105mm
- Thickness: 17mm
- Length of wires stator to grommet: 90mm
- Length of wires grommet to plug: 300mm
Other specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
Wire to wire resistance:
- Alternator: Between each White = 0.4 ohms +/-20%
Flywheel Dimensions:
- Exterior Diameter: 115mm
- Interior Diameter: 108mm
- Interior Diameter Center Housing: 16mm
- Exterior Diameter Center Housing: 24mm
- Thickness (exterior): 30mm
- Thickness (interior): 33mm
Please Note: This kit is compatible with RSV4 that have an engine number equal to or lower than 3413, otherwise you will need RMS900-103848. On rare occasion, this kit will work with Tuono V4. This kit includes a MITSUBISHI flywheel.
Please Note:
- All electrical components must be fitted by a qualified technician.
- Before fitting electrical components ensure the root cause of the original failure has been addressed.
- The absence of either of points 1 or 2 above, will void any warranty.
