Description
Brand new Kit High Output Stator 200W + High-Performance CDI + External Ignition Coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products shipped are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

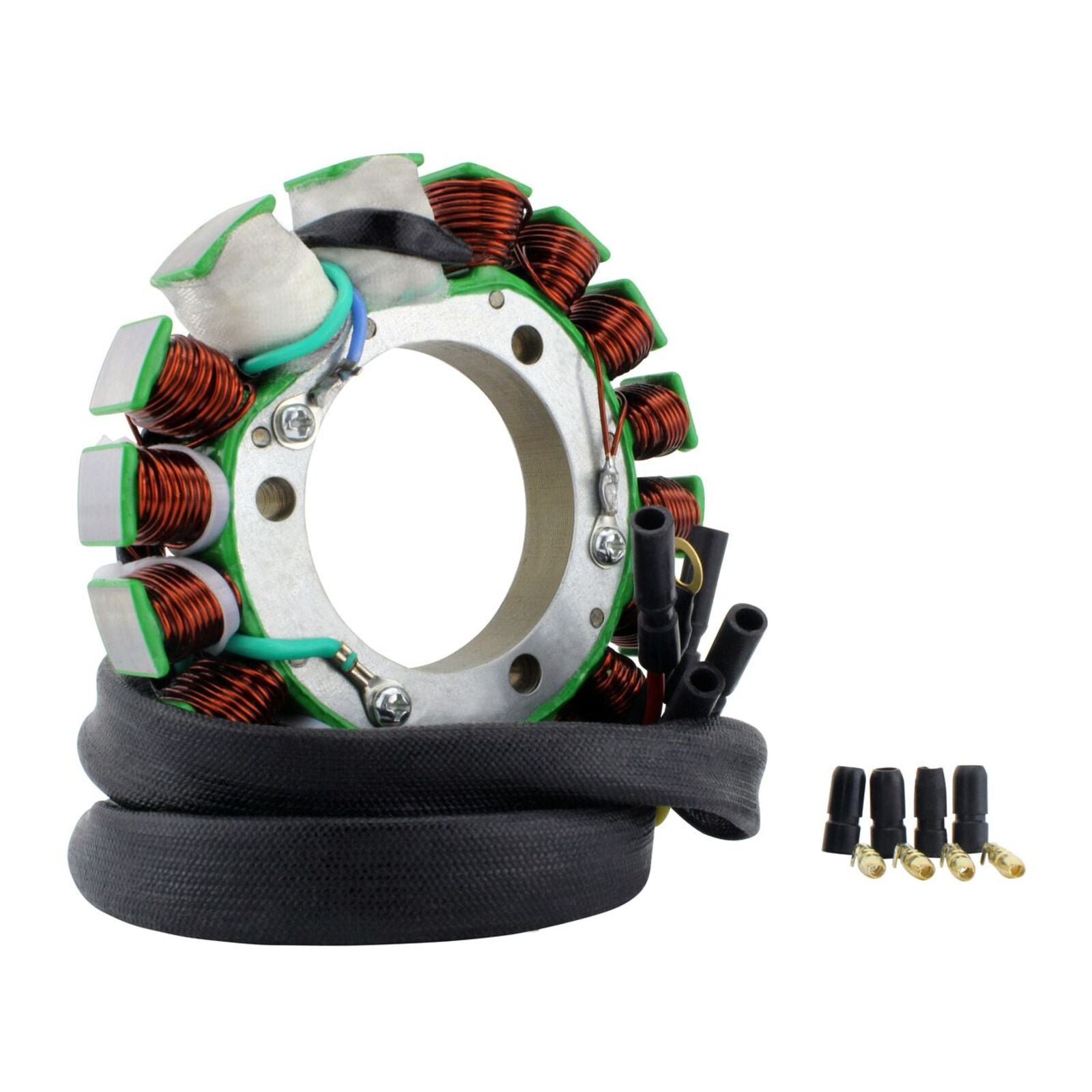

Brand new aftermarket High output Stator 200W
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- 2 x 100W
- Connectors included
- Rubber grommet included
We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.
Brand new aftermarket CDI box
- Enhanced timing curve, increased rev limiter (approximately 1000 rpm)
- Higher grade of electronic components.
- The quality exceeds the OEM equipment

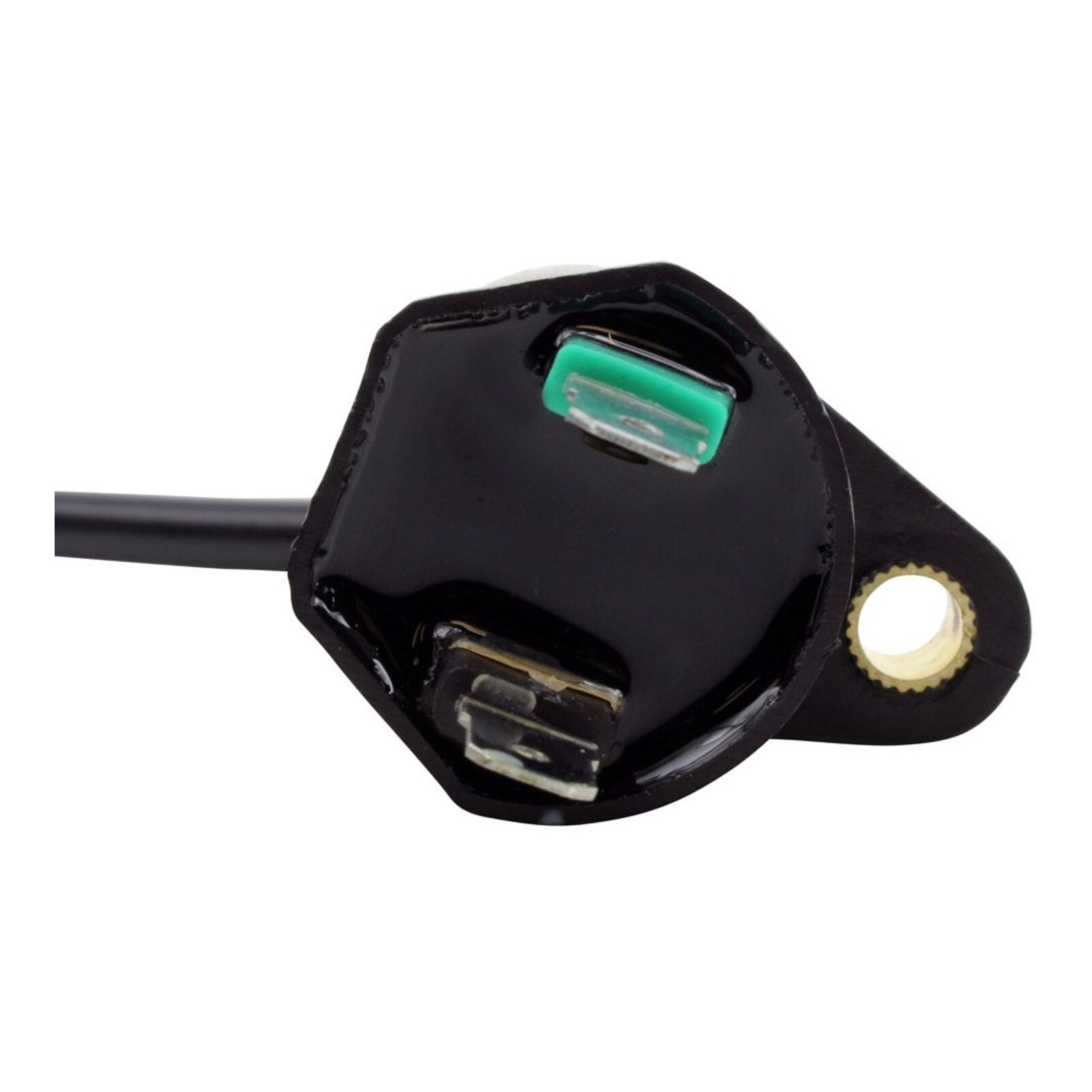

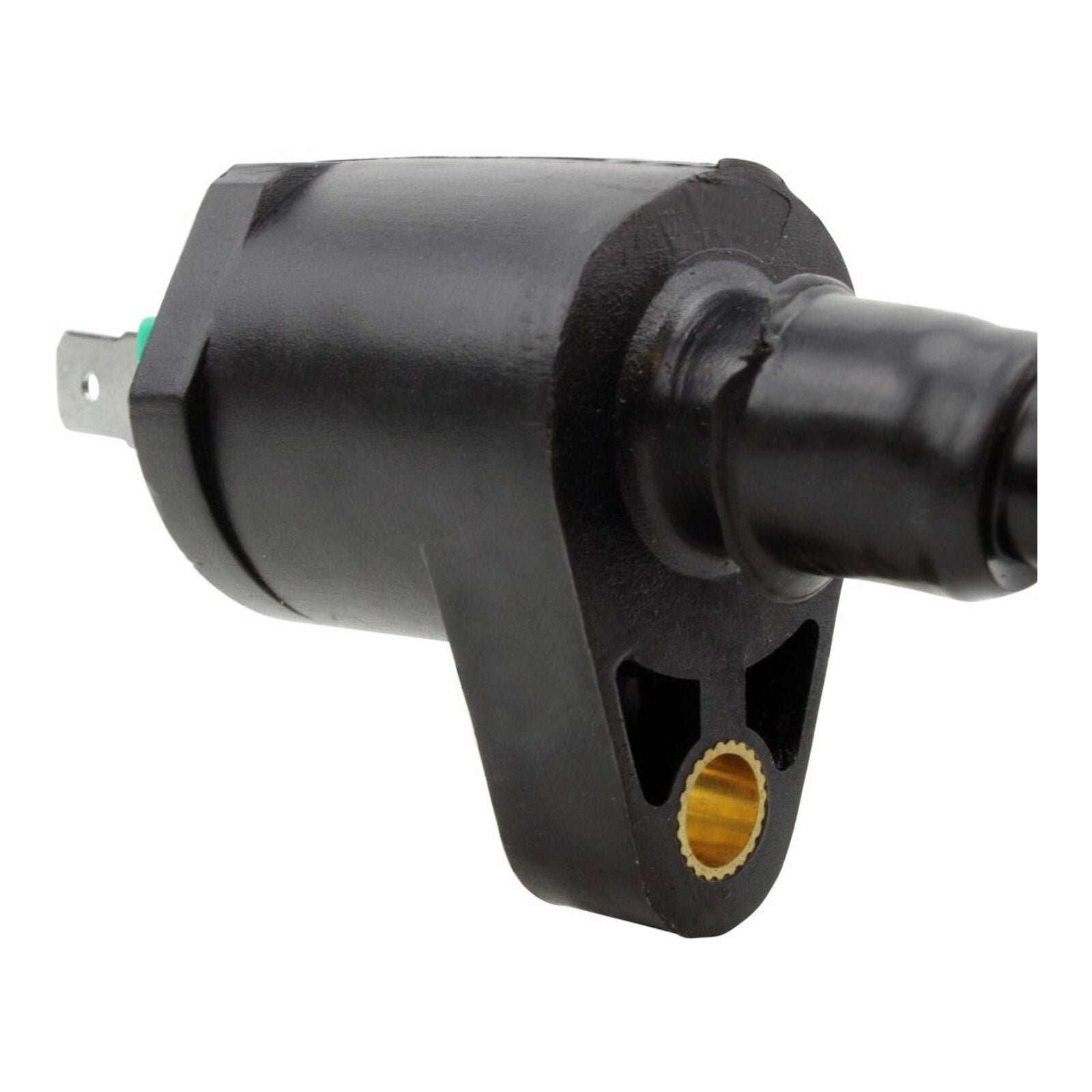

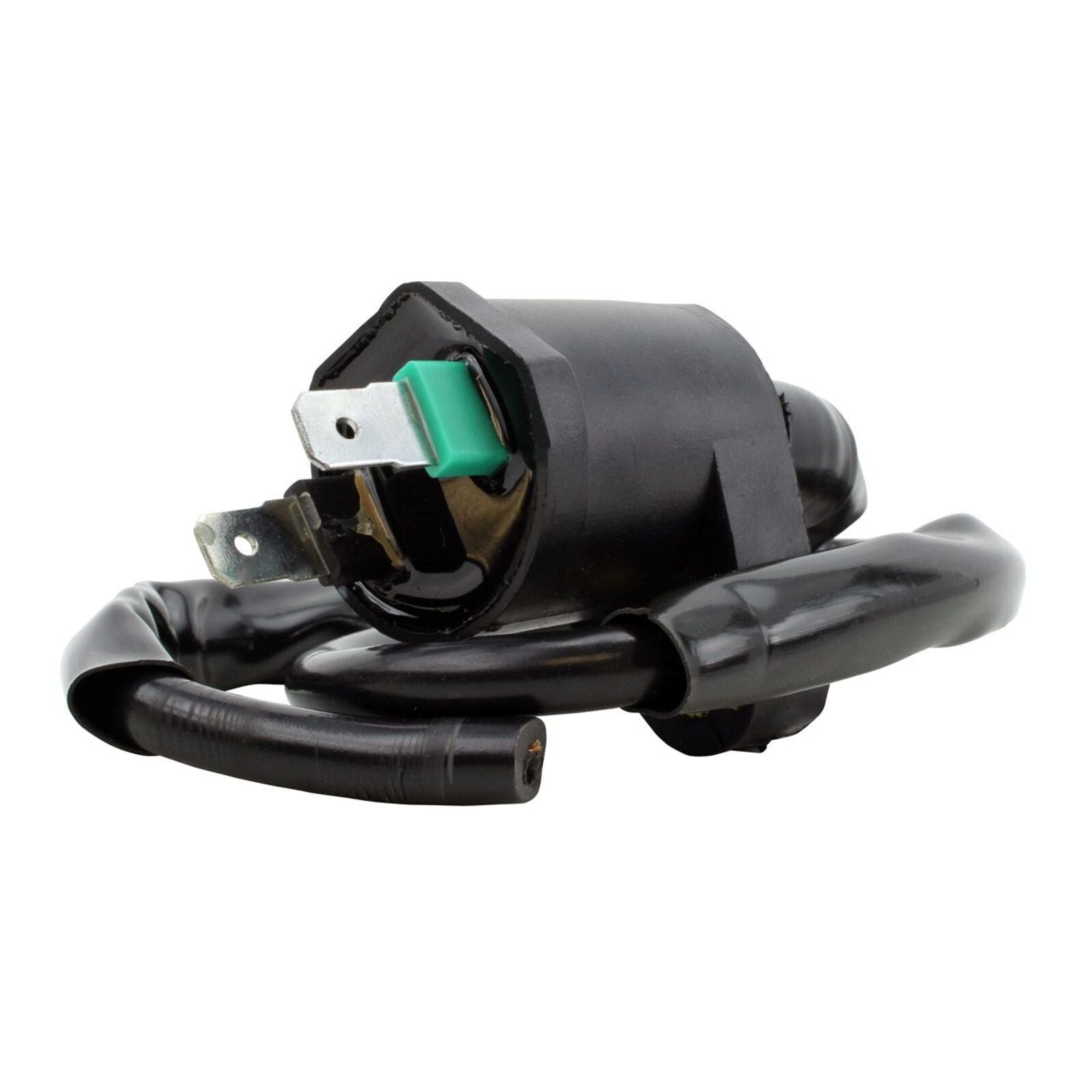

Brand new aftermarket External Ignition Coil
- You must re-install your OEM spark plug cap(s)
- Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug- and-play unit, direct fit, and easy to install.

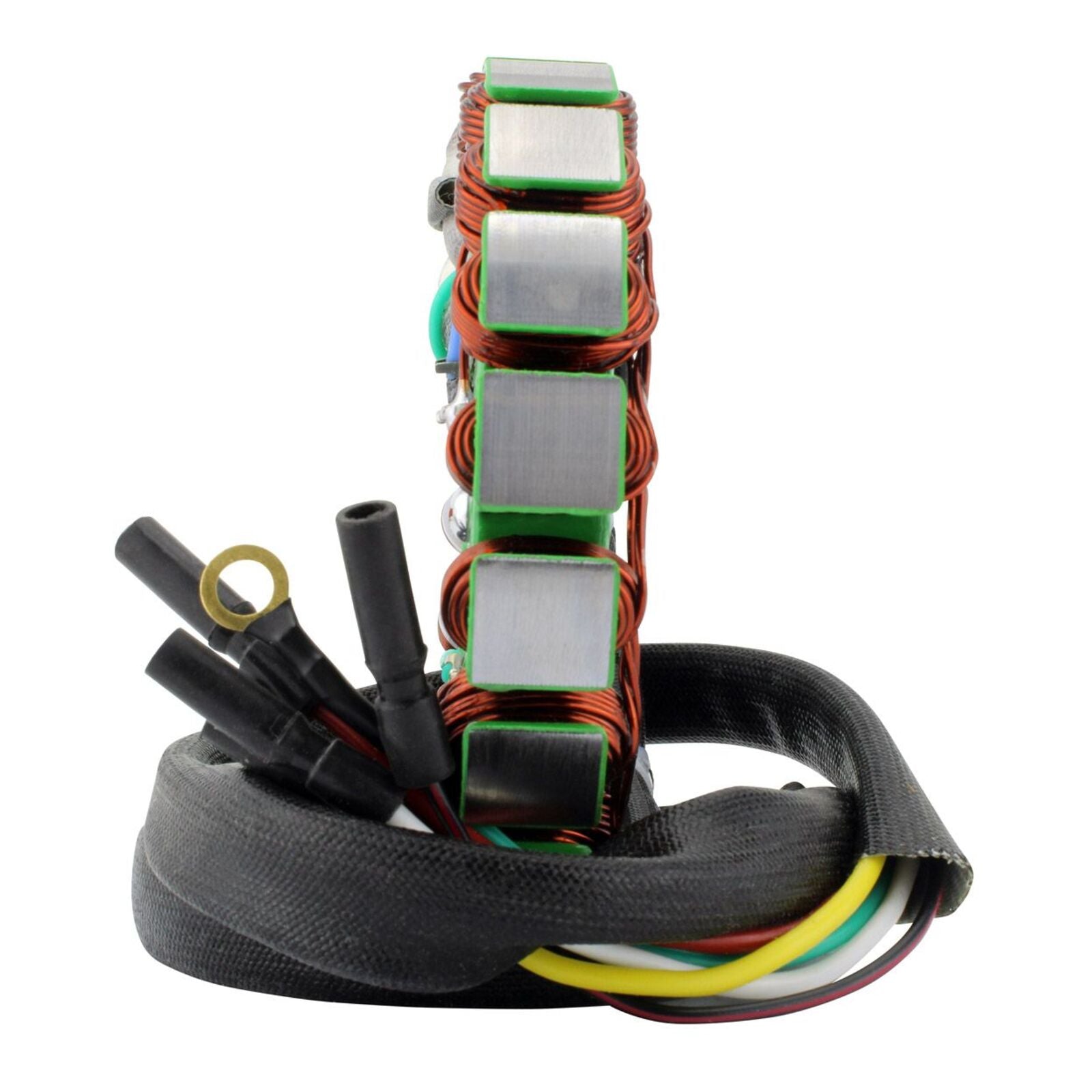

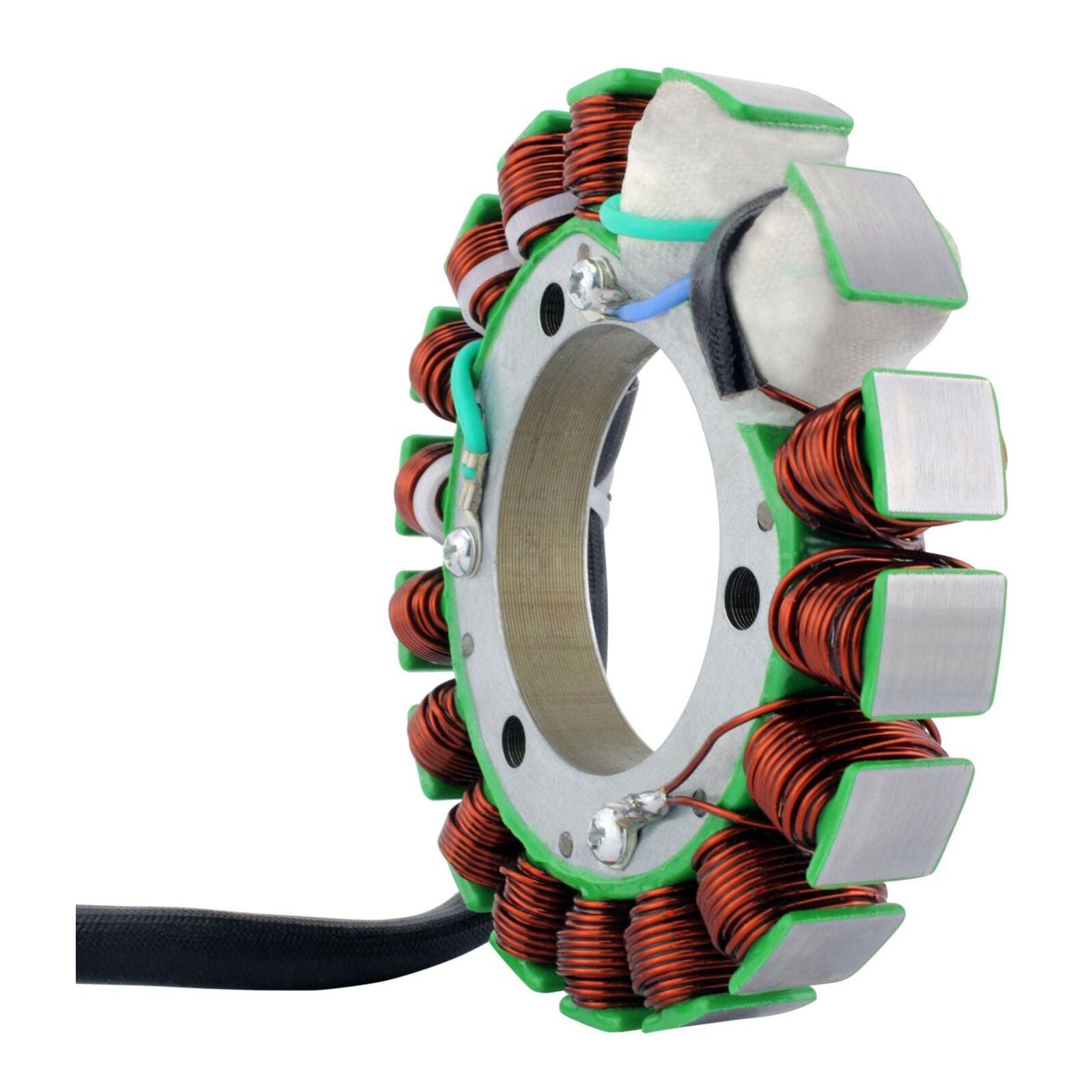

High output Stator 200W
- Dimensions:
- Interior diameter: 54 mm
- Exterior diameter: 115 mm
- Thickness: 15 mm
- Length of wires stator to grommet: 200 mm
- Length of wires grommet to plug: 700 mm
- Other specifications:
- Number of wires: 5
- Number of plugs: 5
- Number of pins: 3
- Number of poles: 17
- Wire to wire resistance:
- Alternator: White to Green = 0.4 ohms +-20%
- Alternator: Yellow to Red = 0.4 ohms +-20%
- Source: Black/Red to Green = 140 ohms +-20%

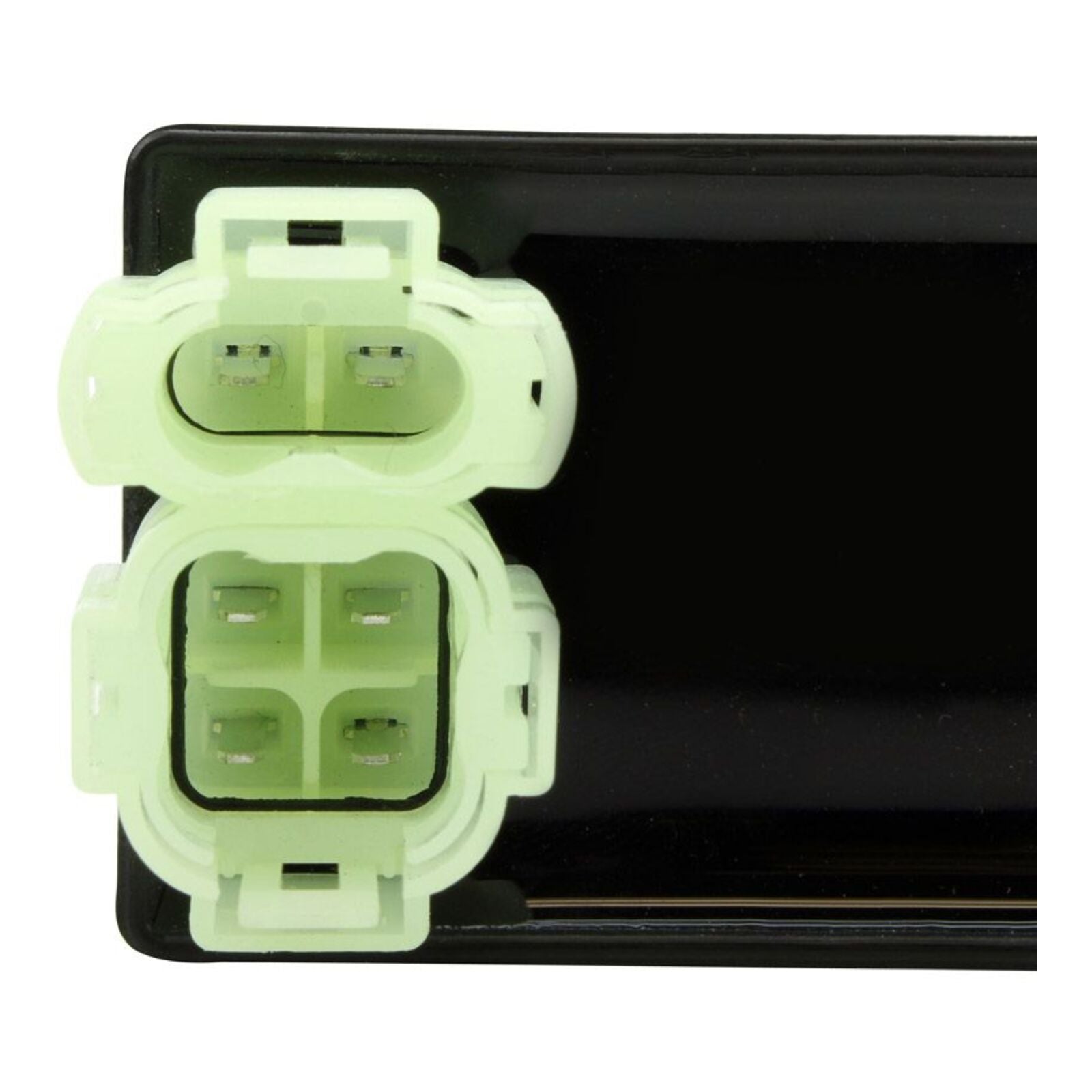

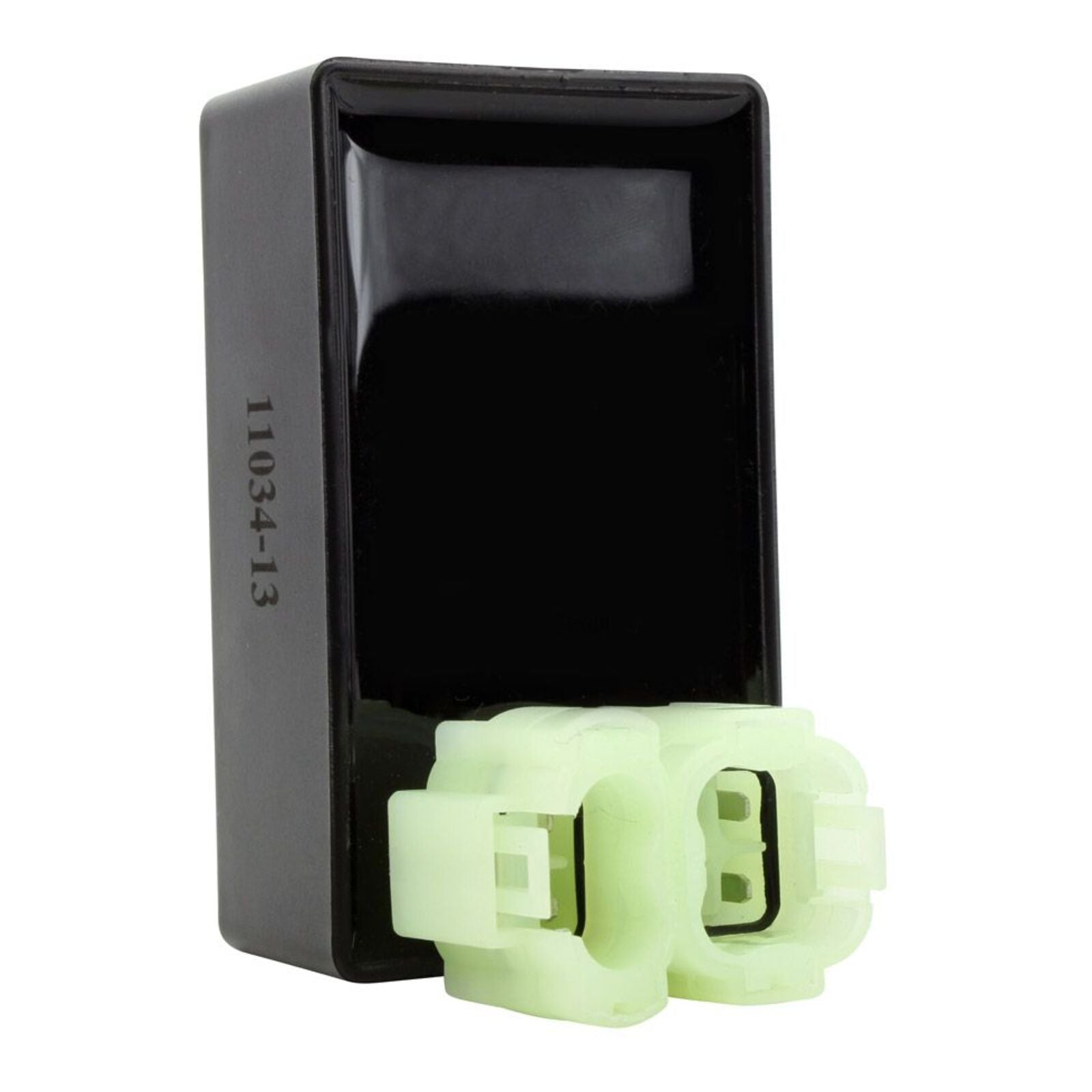

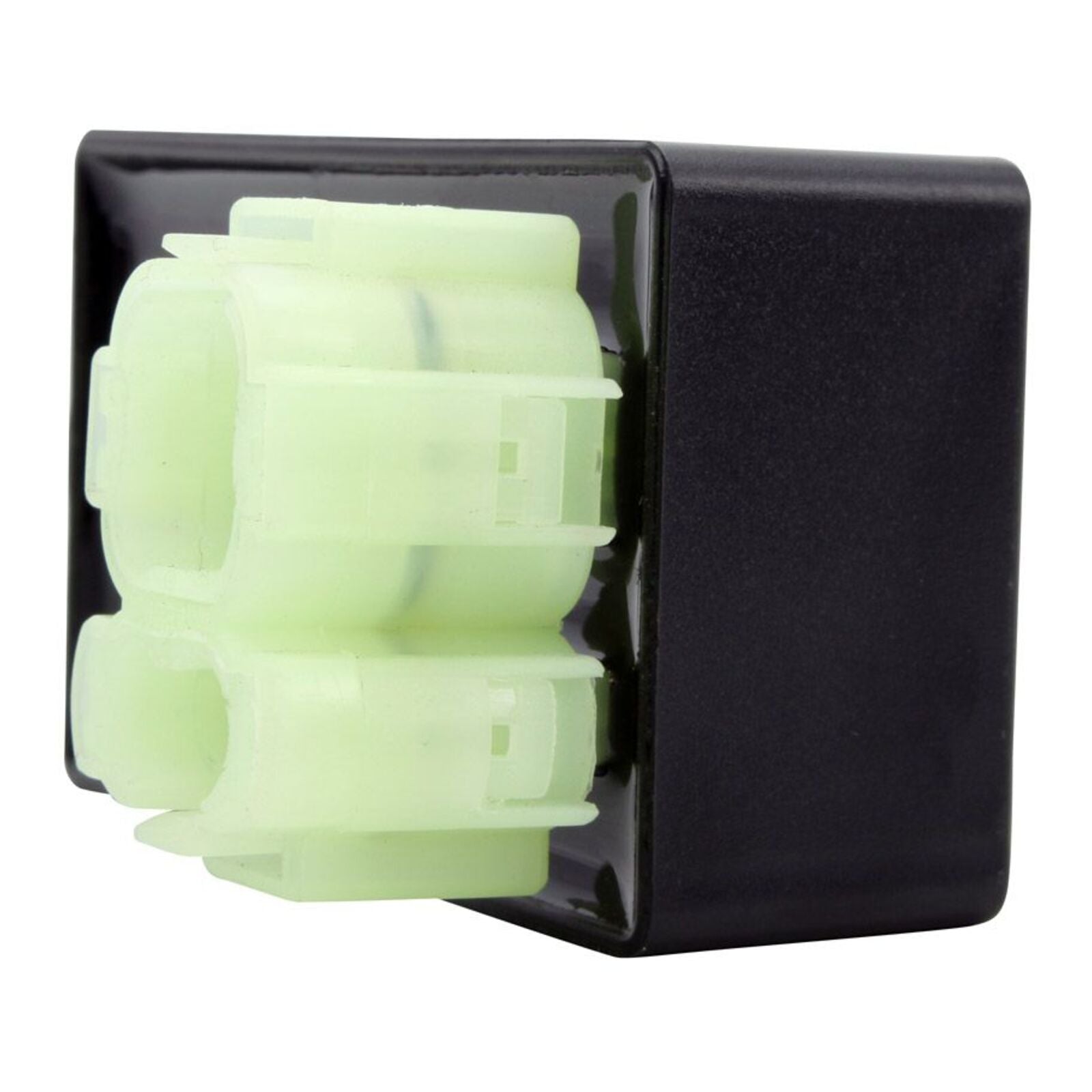

High- performance CDI Box
- Dimensions:
- Height: 22mm
- Length: 66mm
- Width: 42mm
- Other specifications:
- Number of plugs: 2
- Number of pins: 6
