Description

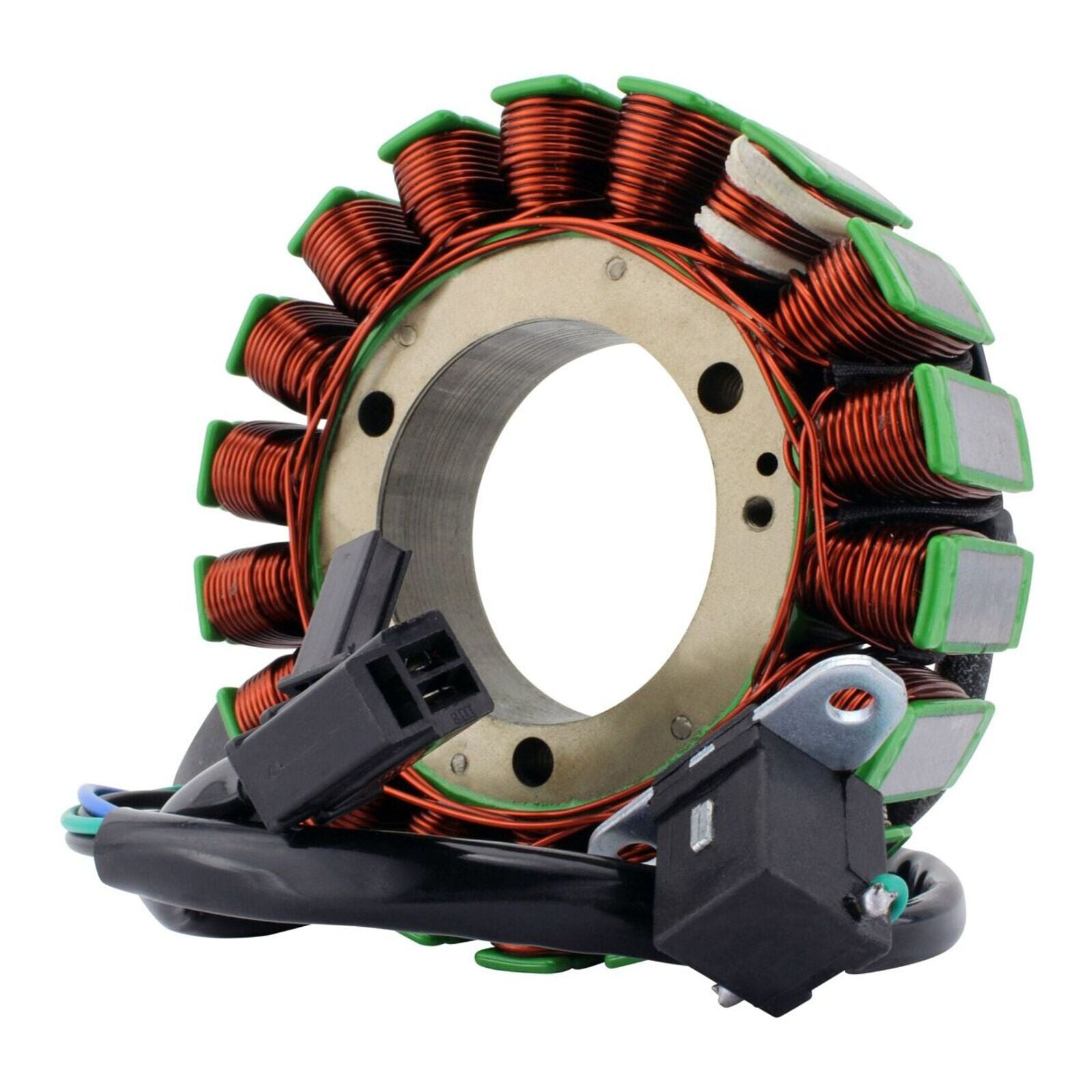

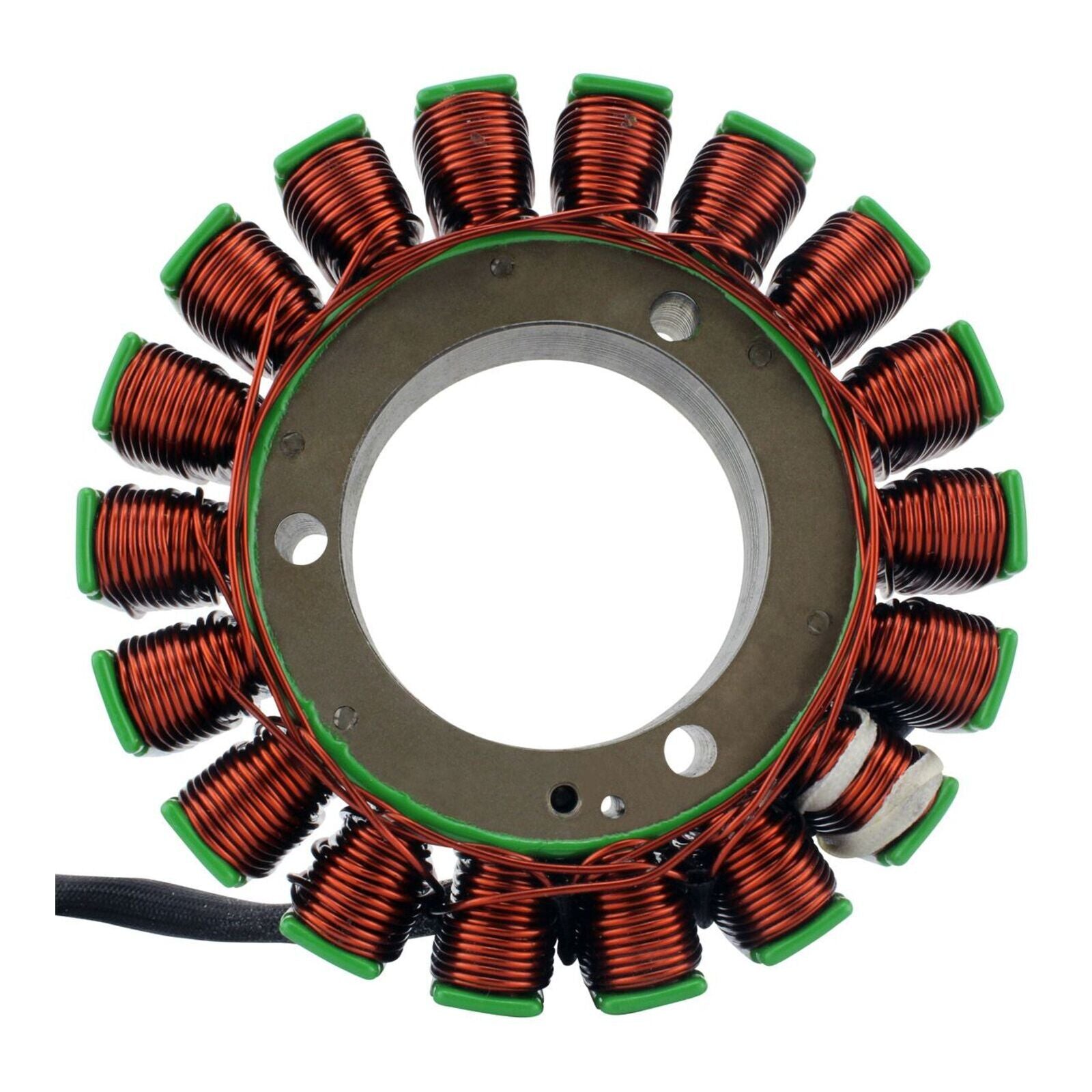

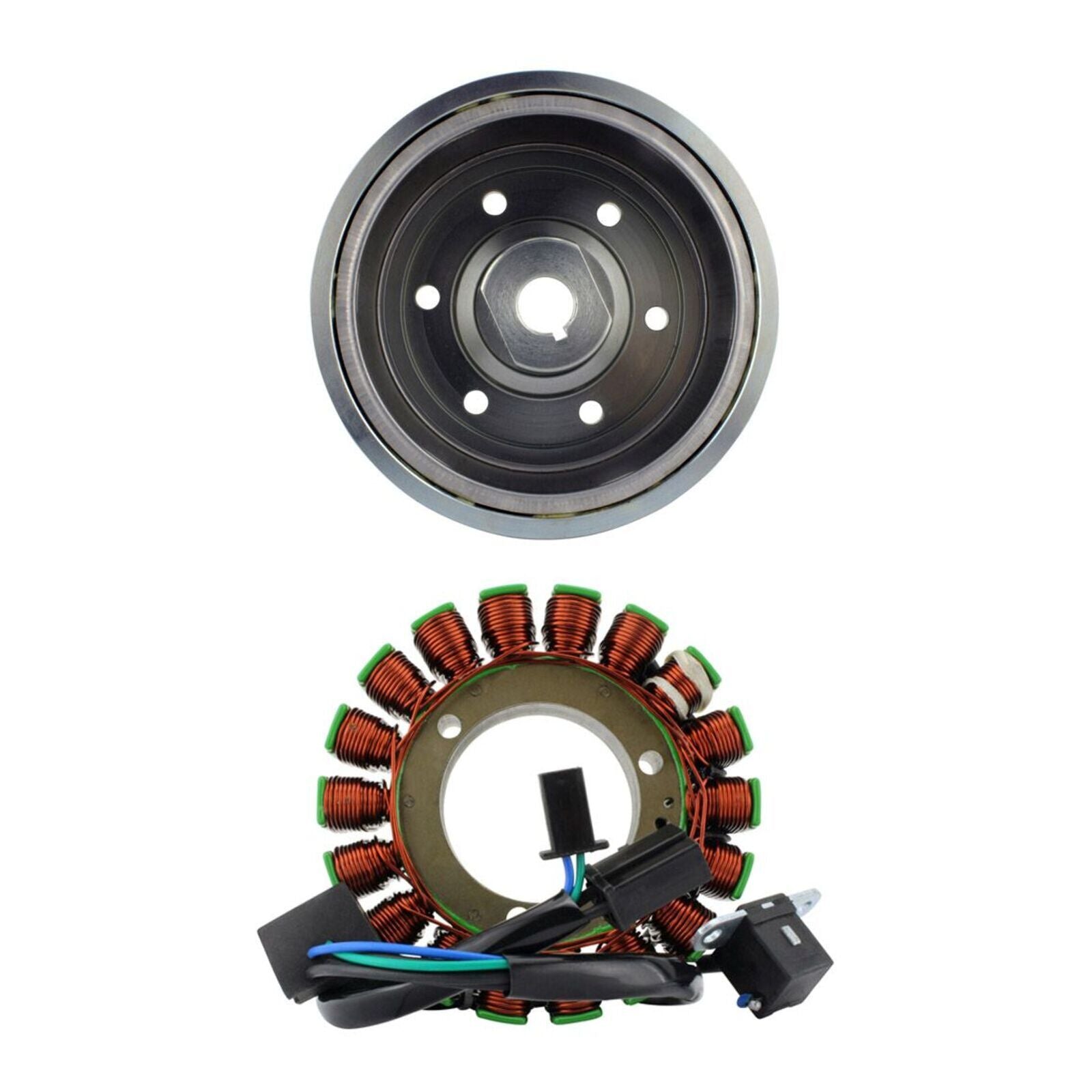

Brand new aftermarket Stator and Flywheel kit.
- Direct replacement for the original unit.
- Plug-and-play, direct fit and easy installation.
- High-grade lamination materials.
- High-grade copper windings, resistant to temperatures up to 200°C.

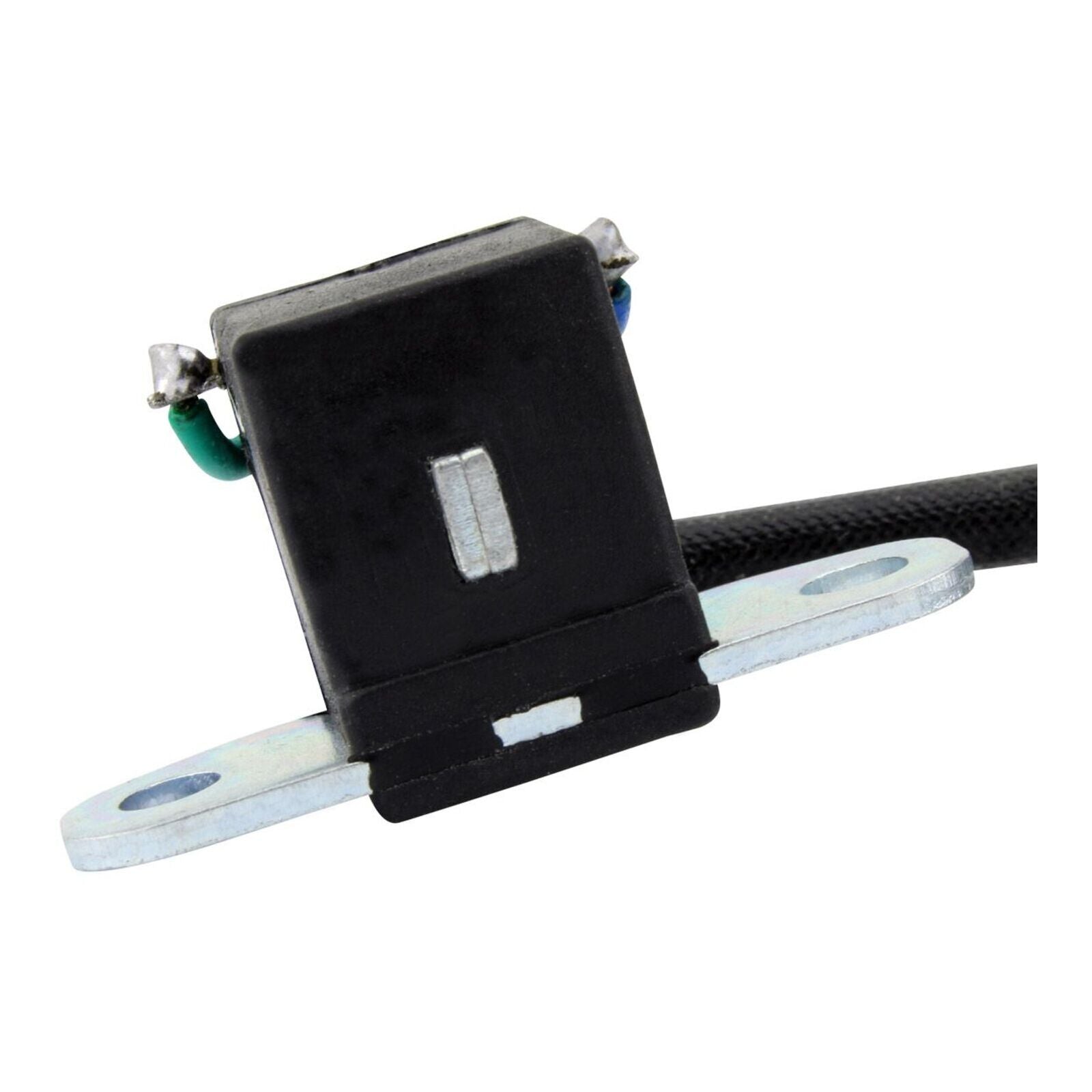

- Pickup/pulsar coil included.

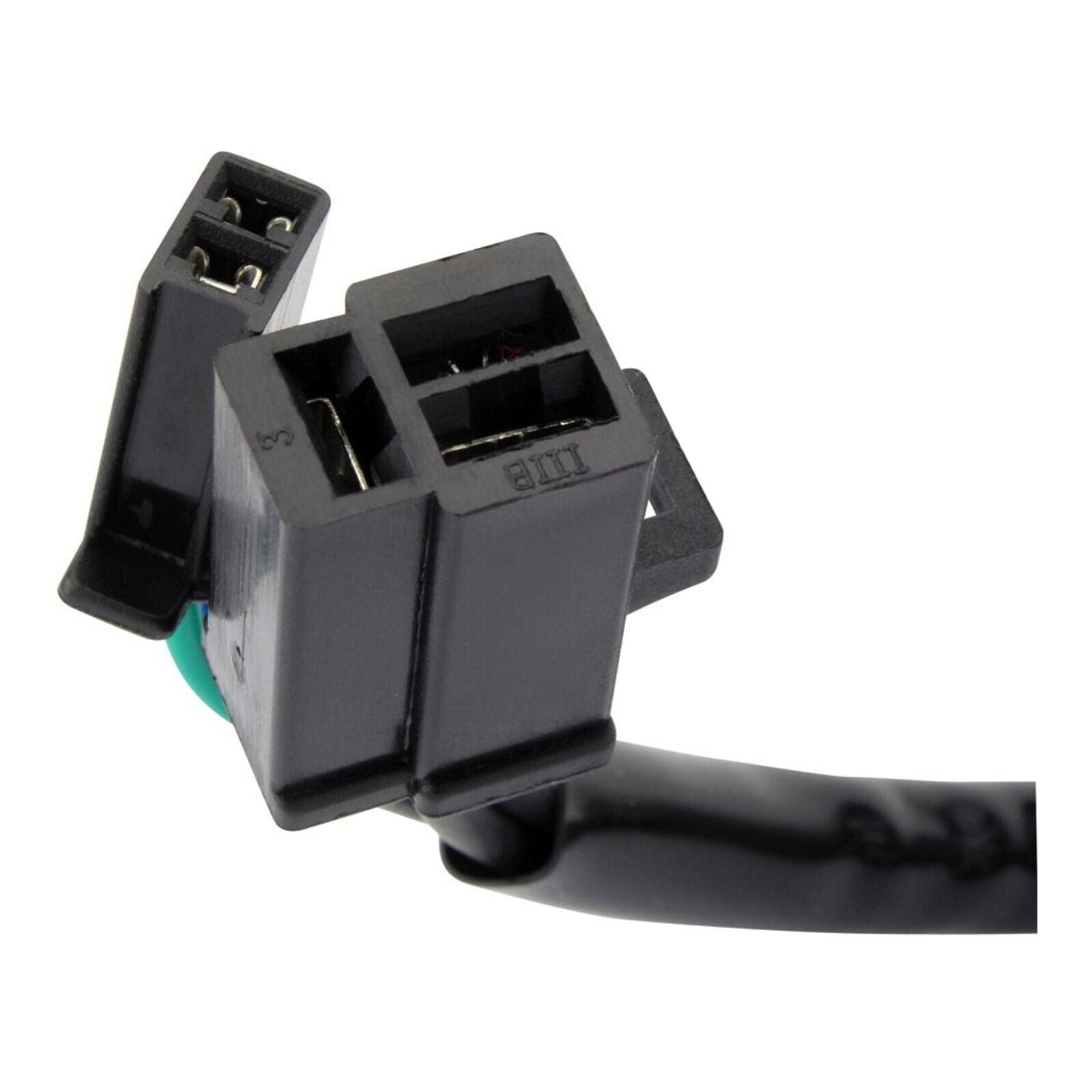

- Connector included.

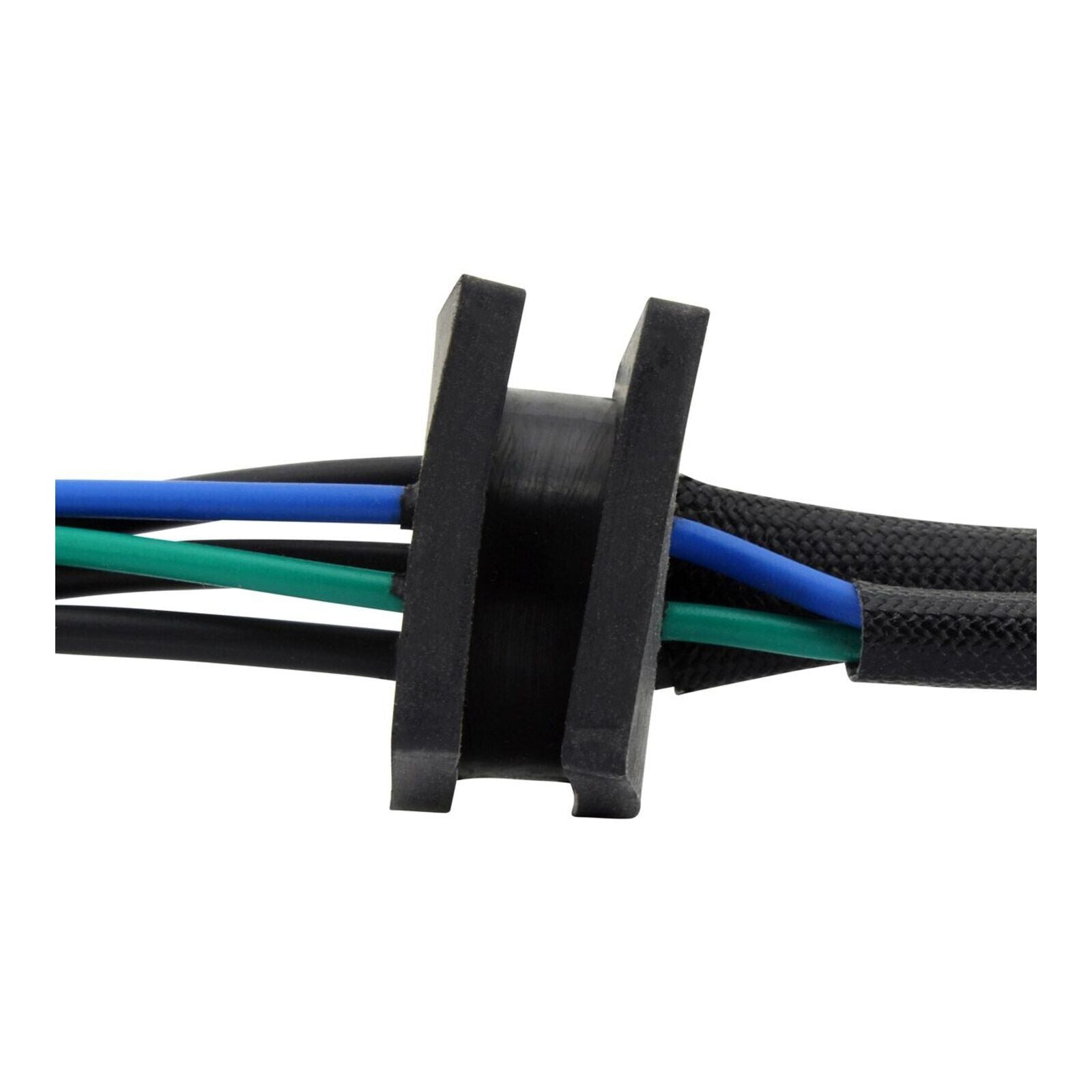

- Rubber grommet included.
- All products are tested before shipping.
Product images are accurate. If in doubt, compare the items with your original parts.
Before installing the new stator and flywheel:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on the stator and regulator/rectifier.
- Check and repair any melted wiring.
- Apply high-temperature dielectric grease to all connectors.
The stator may have a different wire colour code from the original part. All wires are installed in the correct order; do not change the wiring configuration. This stator is designed as a direct plug-in replacement.
Always use thread-locking compound when securing the stator. If the stator includes a pickup coil, check the air gap during installation. Set it as close as possible, but no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

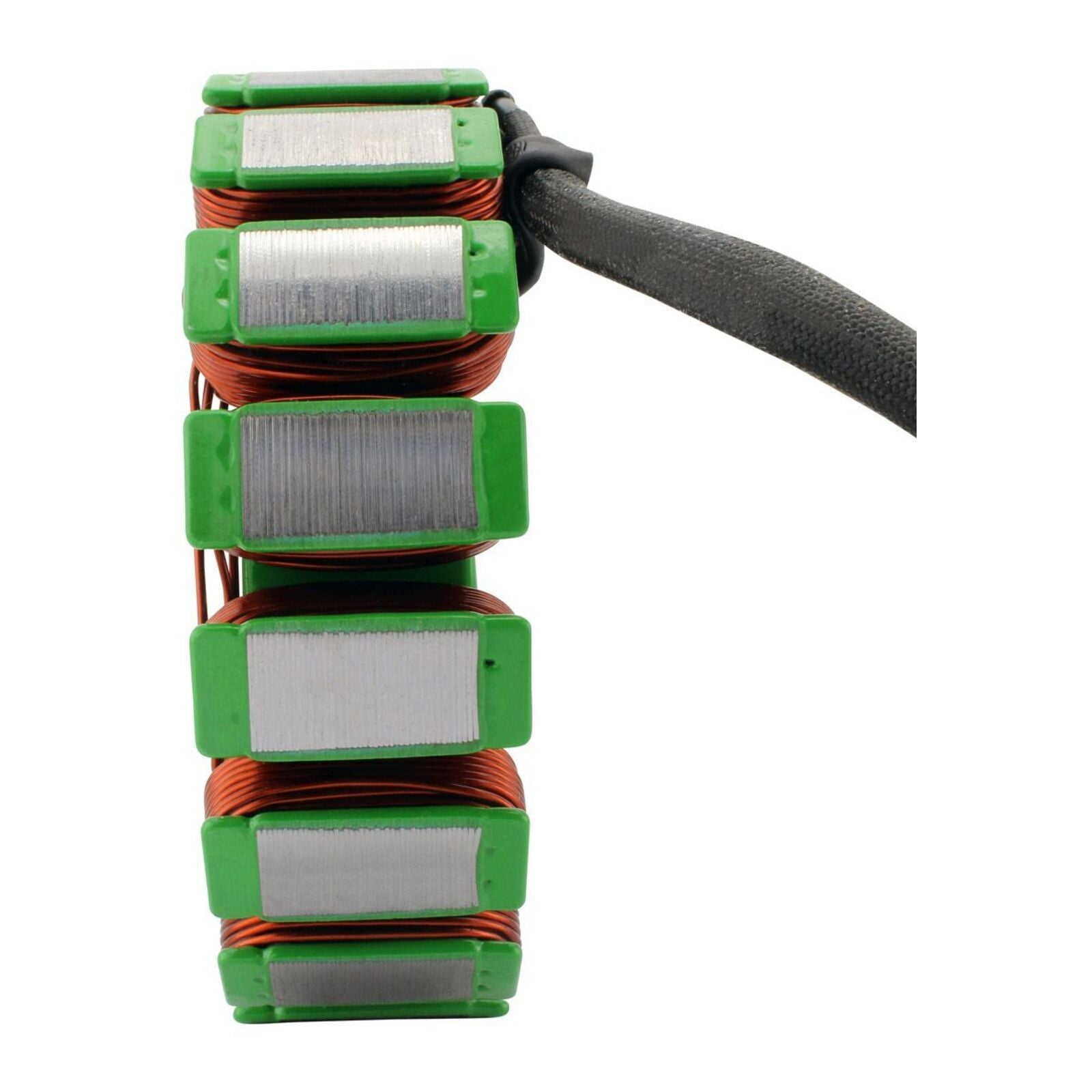

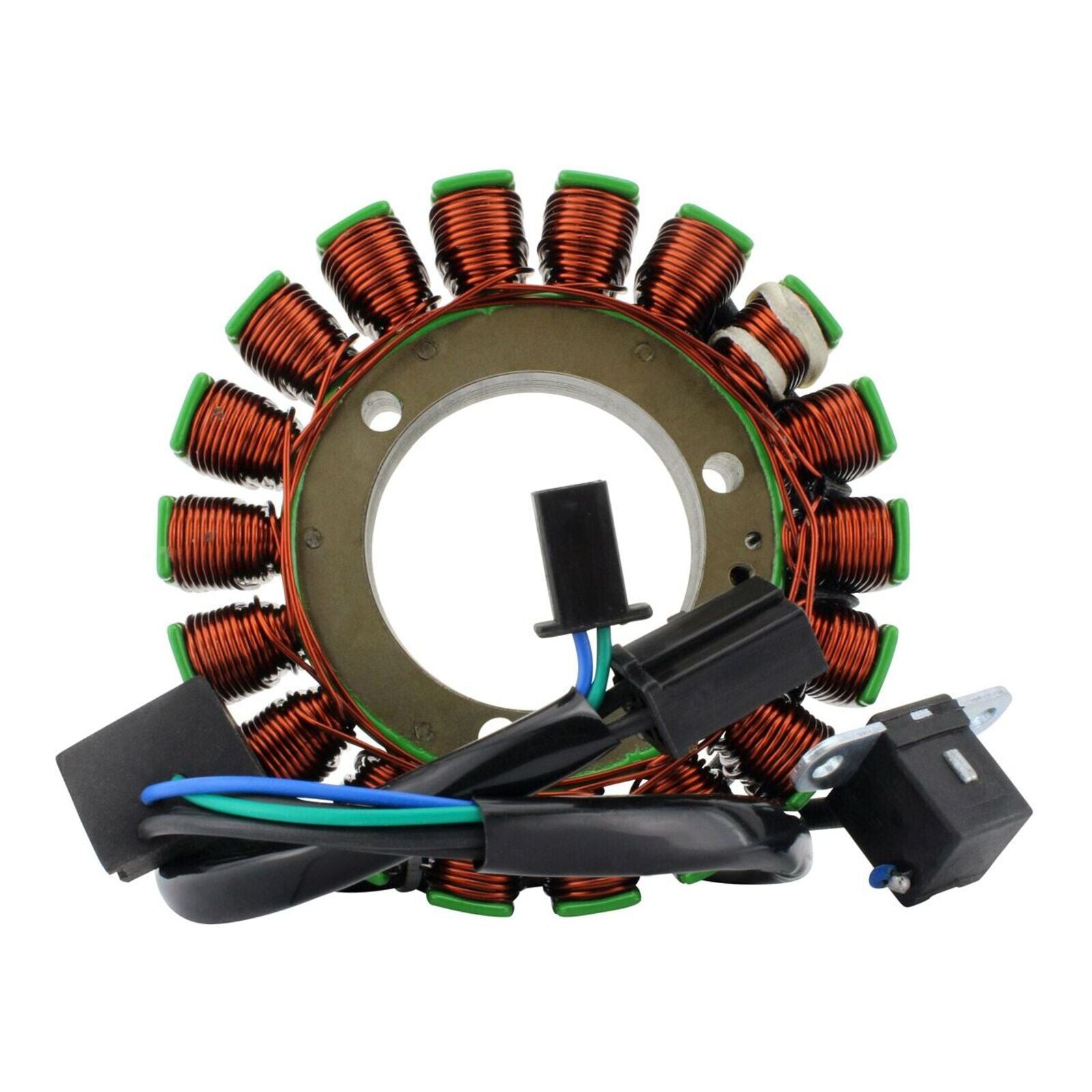

Stator Dimensions:
- Interior diameter: 54 mm.
- Exterior diameter: 119 mm.
- Thickness: 25 mm.
- Stator-to-grommet wire length: 160 mm.
- Grommet-to-plug wire length: 430 mm.
- Pickup coil wire-to-grommet length: 150 mm.
Other Specifications:
- Number of wires: 5.
- Number of plugs: 2.
- Number of pins: 5.
- Number of poles: 18.
- Alternator resistance (black to black): 0.6 ohms ±20%.
- Pickup coil resistance (blue to green): 193 ohms ±20%.

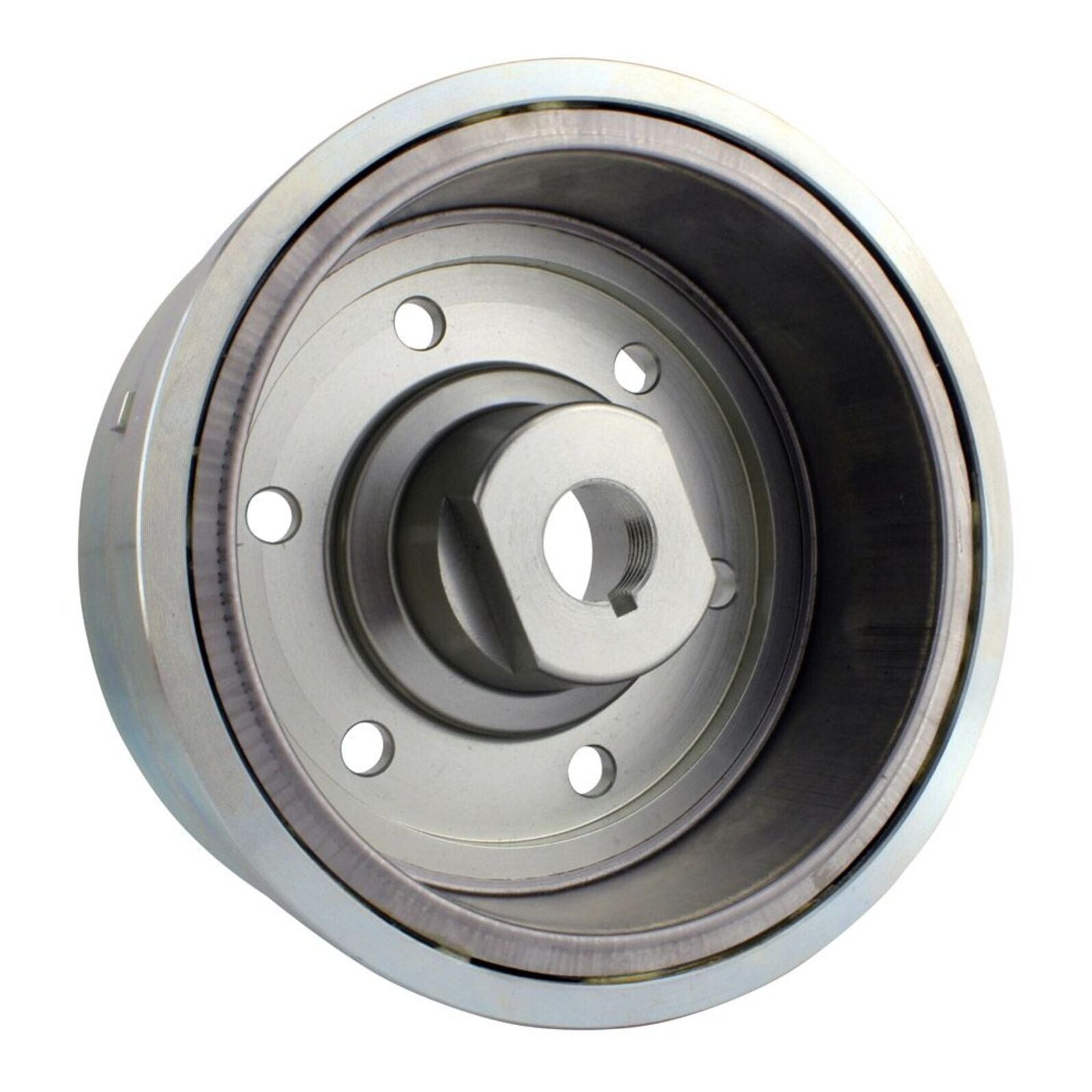

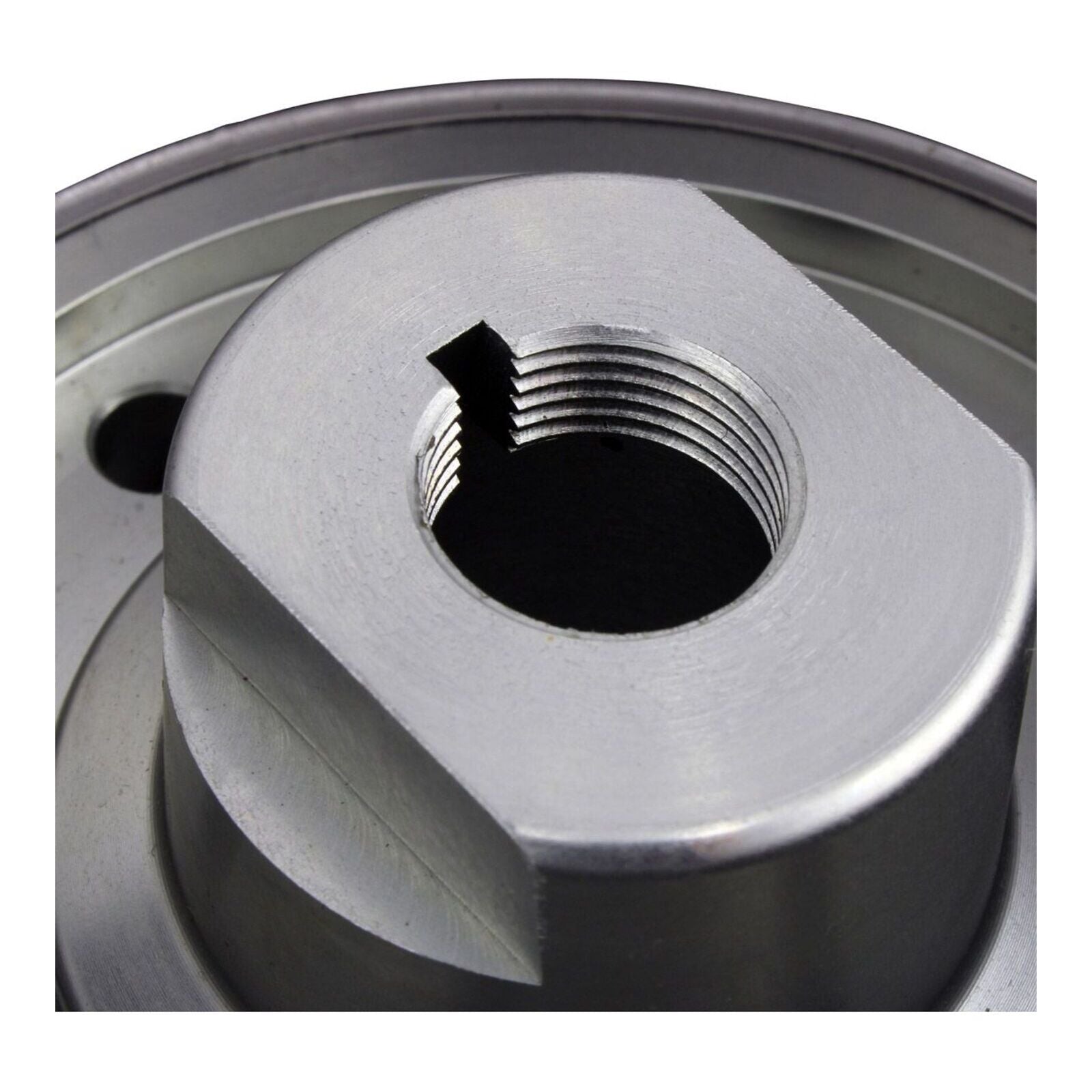

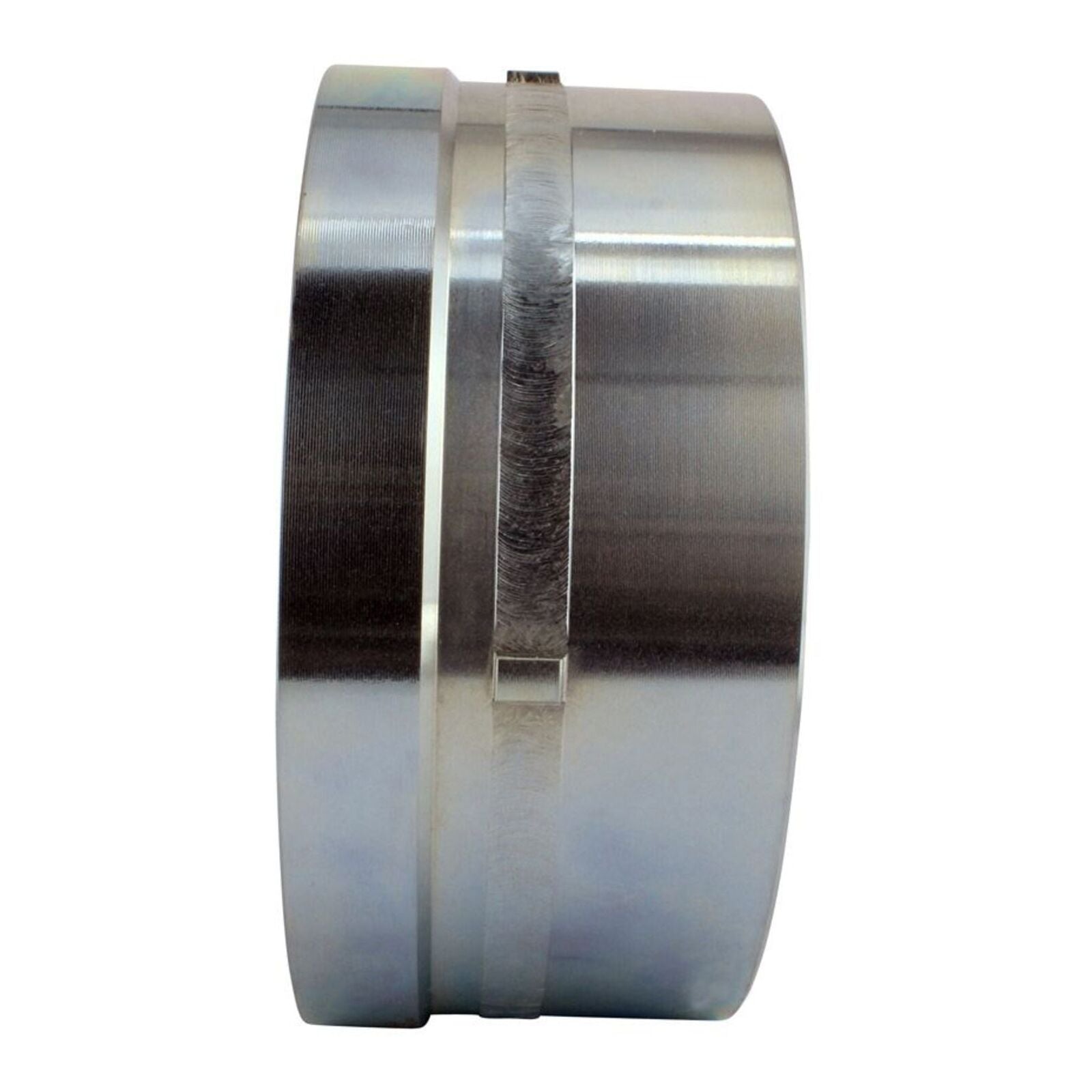

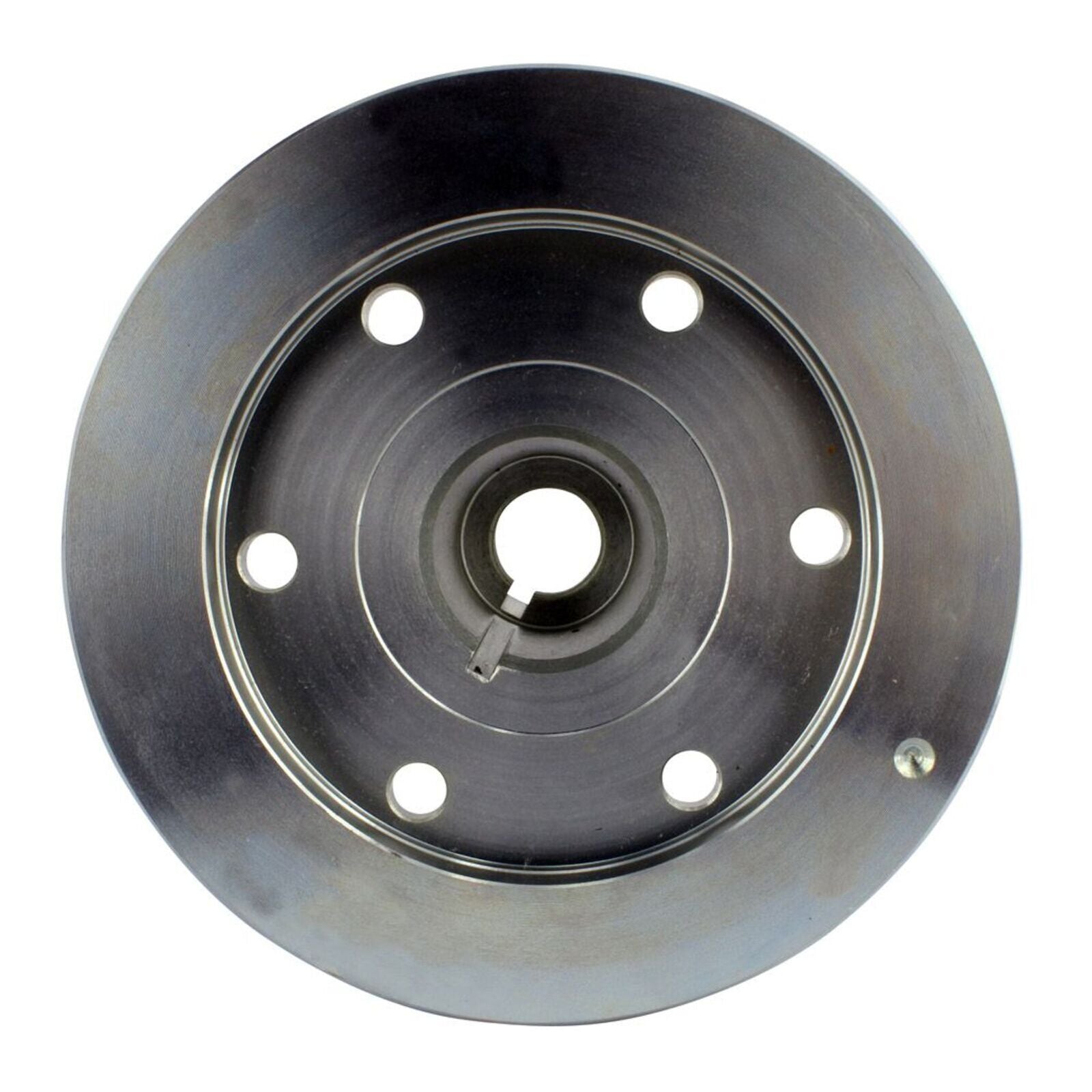

Flywheel Dimensions:
- Inner diameter: 120 mm.
- Outer diameter: 149 mm.
- Total height: 65 mm.
- Inside height: 46 mm.
- Centre housing depth: 35 mm.
- Centre housing widest diameter: 35 mm.
- Centre housing thickness: 26 mm.
