Description
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

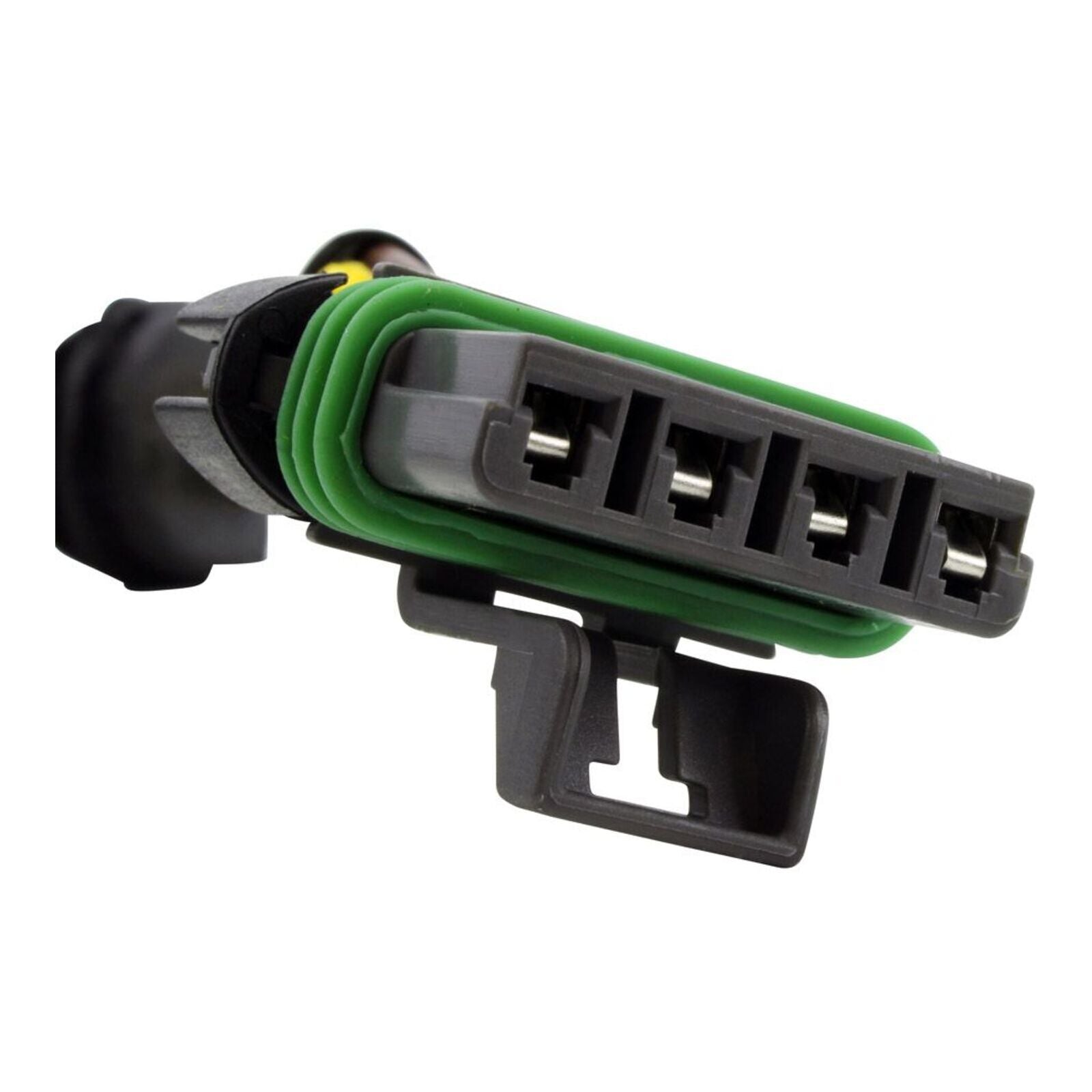

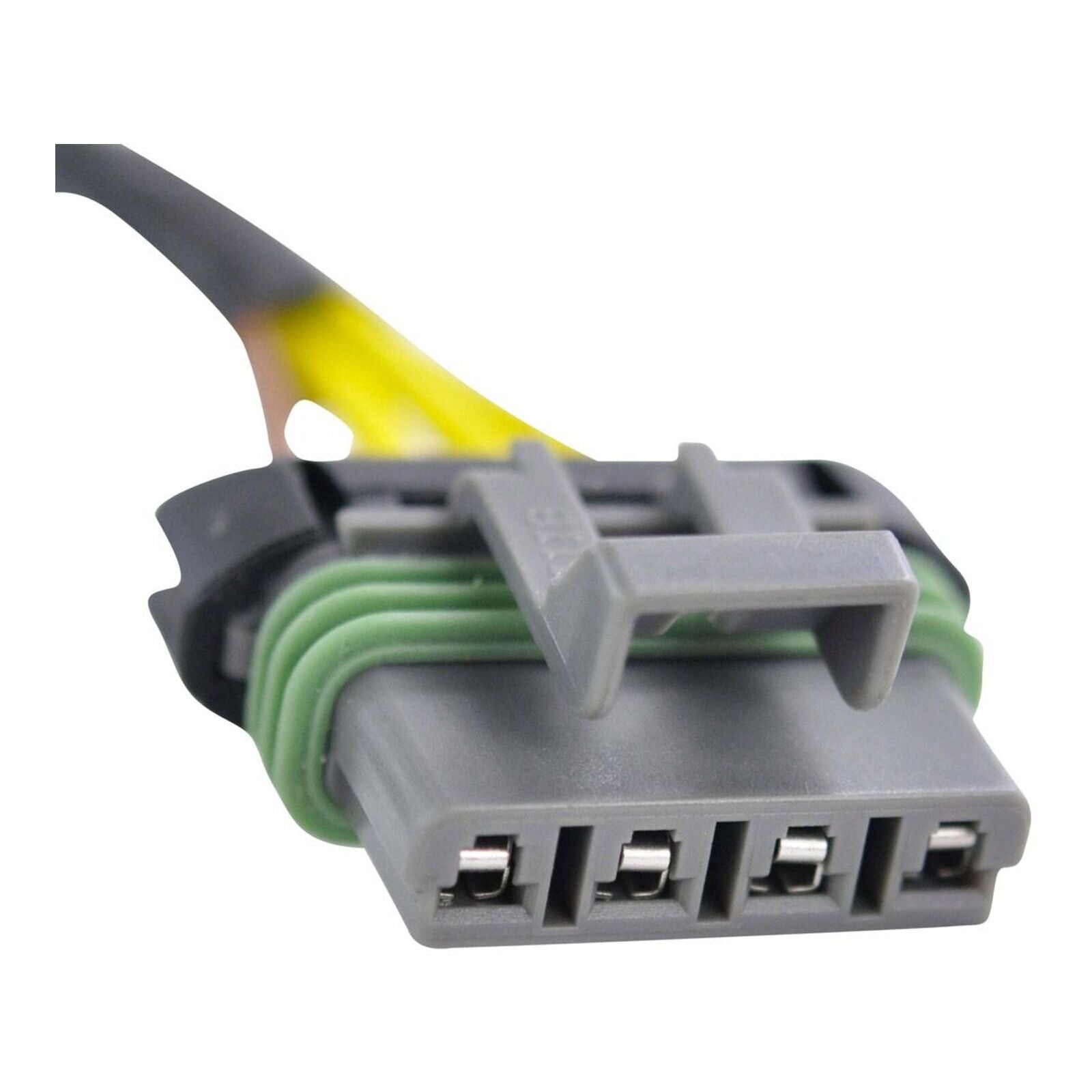

- Connector included
- Rubber grommet included
- All product shipped are tested

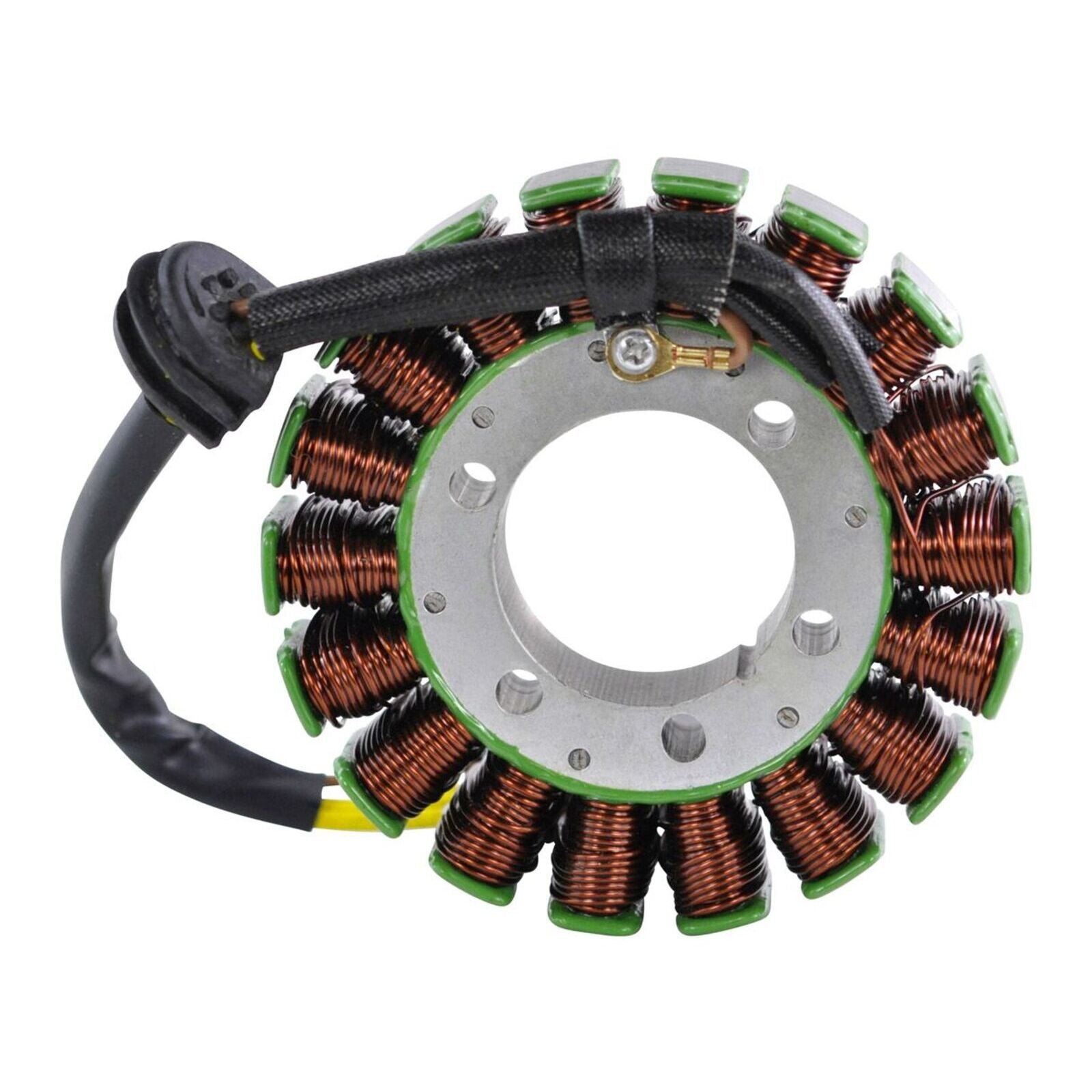

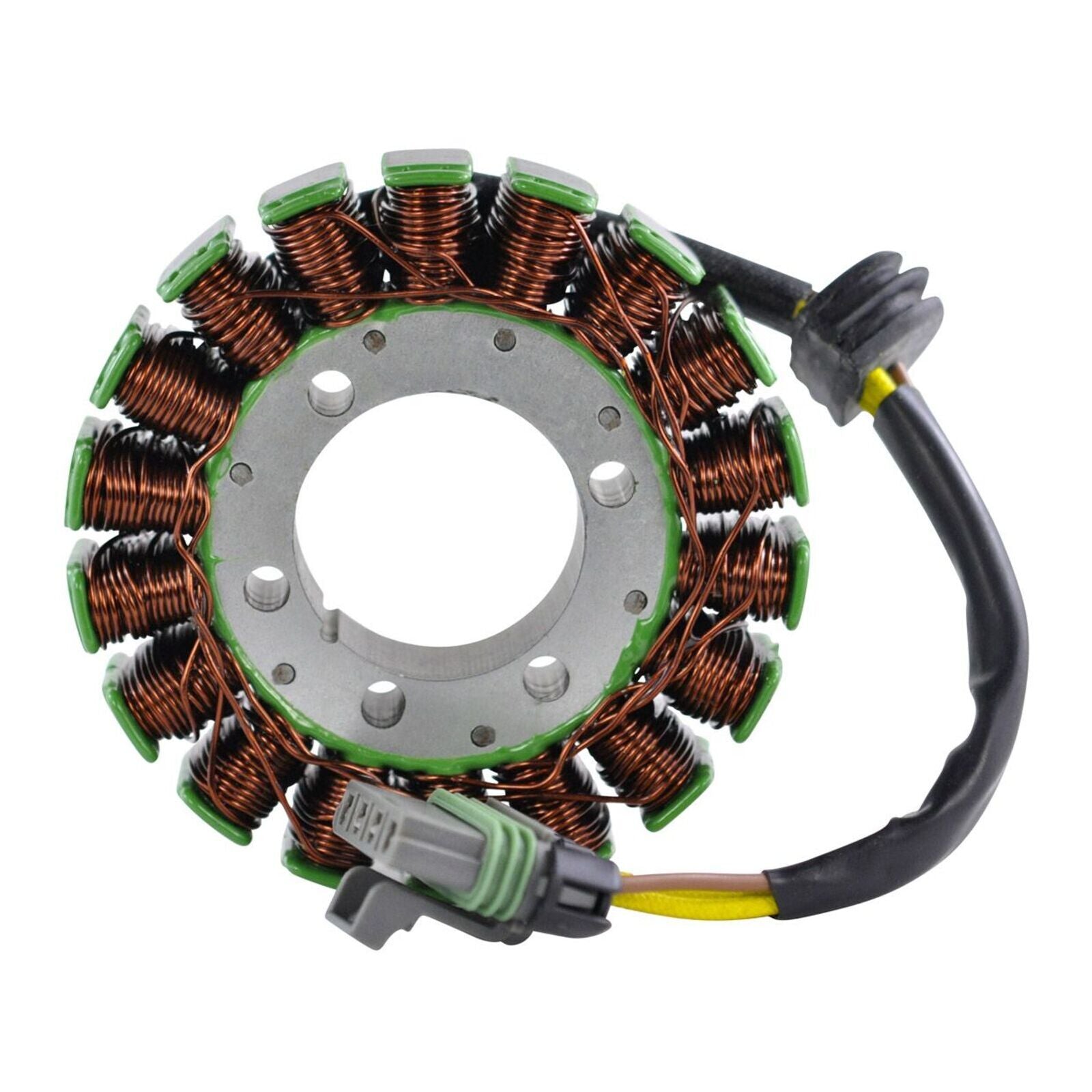

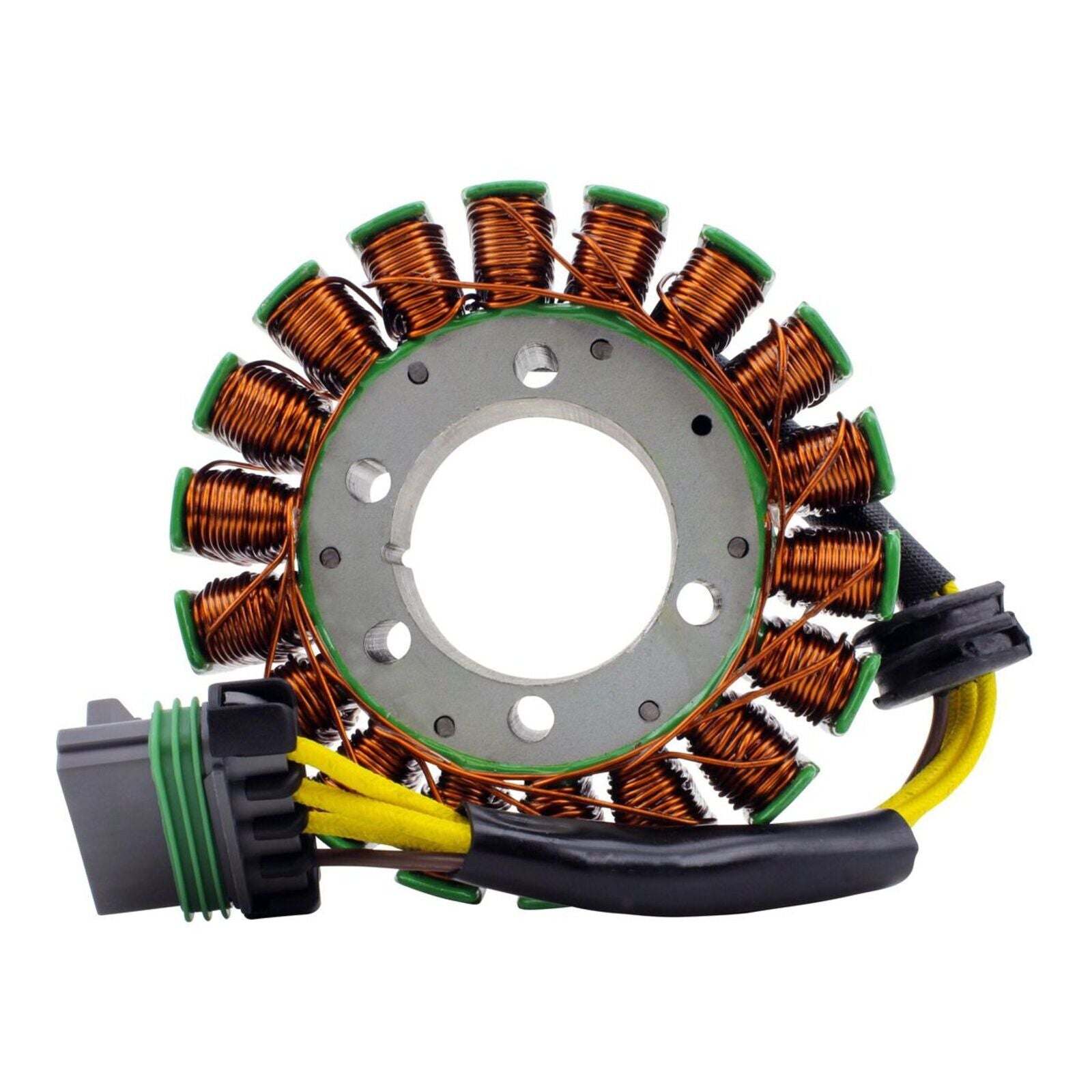

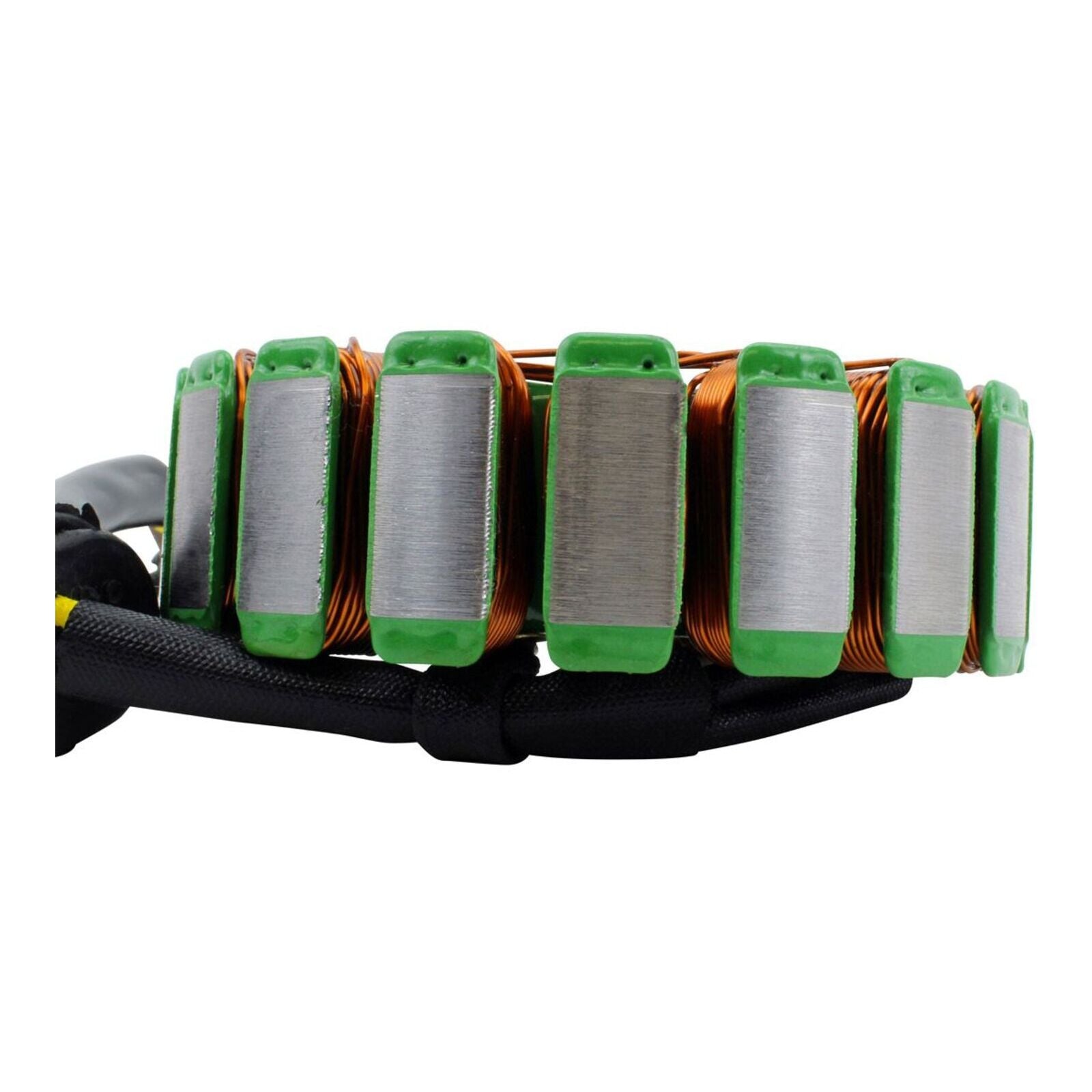

Specifications of Stator:
-
Dimensions:
- Int erior diameter: 40 mm
- Exterior diameter: 106 mm
- Thickness: 24 mm
- Length of wires stator to grommet: 45 mm
- Length of wires grommet to plug: 100 mm
-
Other specifications:

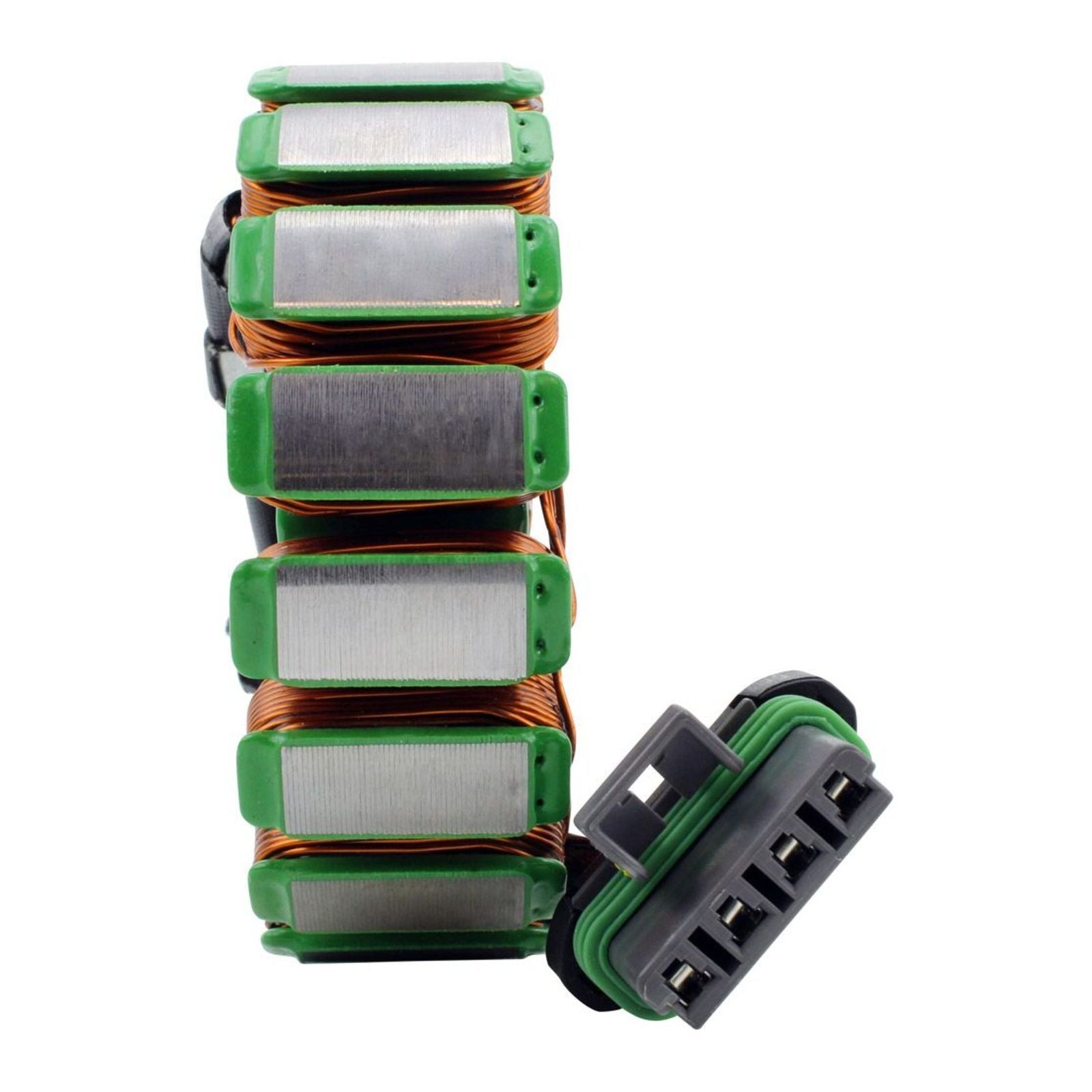

- Number of wires: 4
- Number of plugs: 1
- Number of pins: 4
-
Wire to wire resistance:
- Alternator: Yellow to Yellow = 0.4 ohms +/-20%

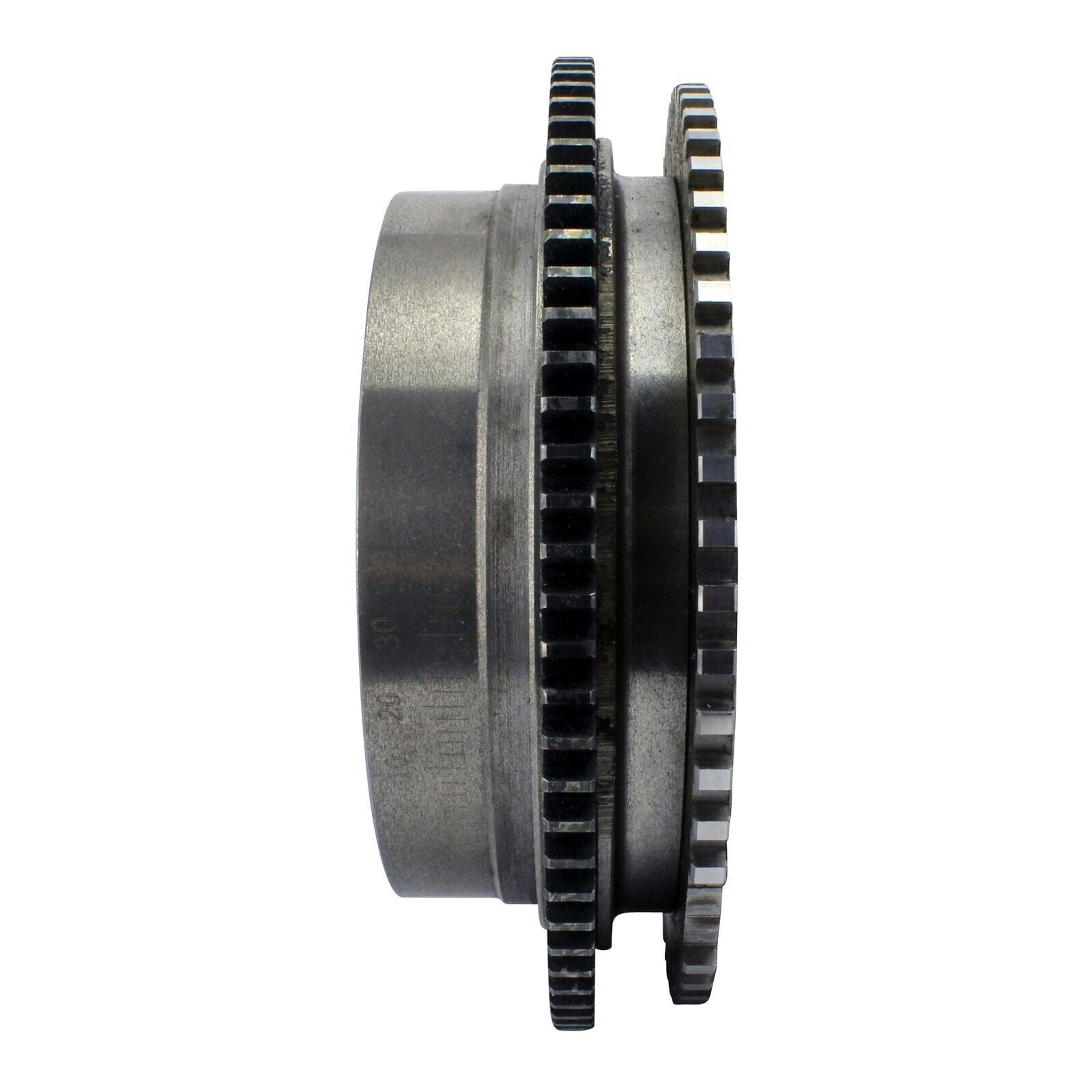

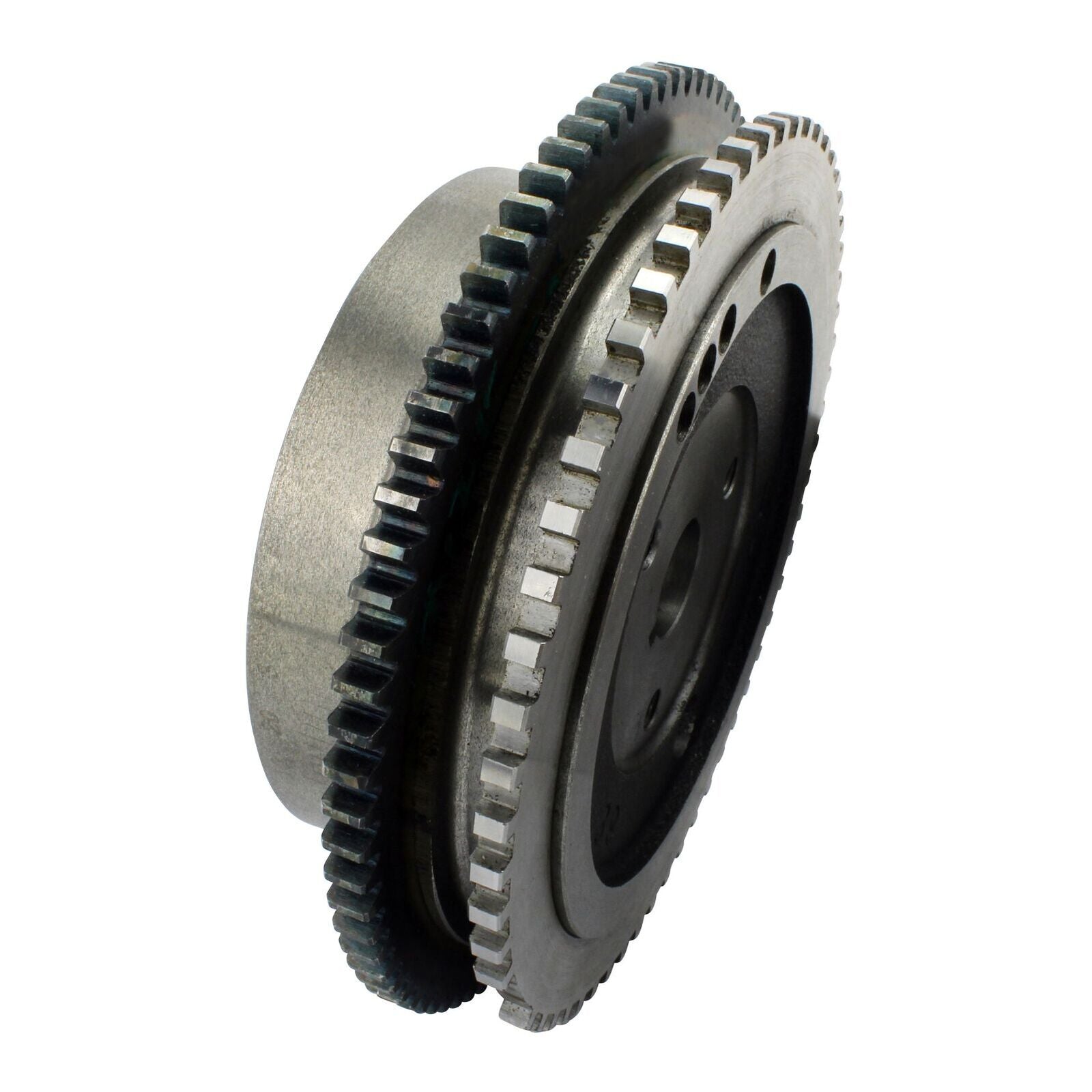

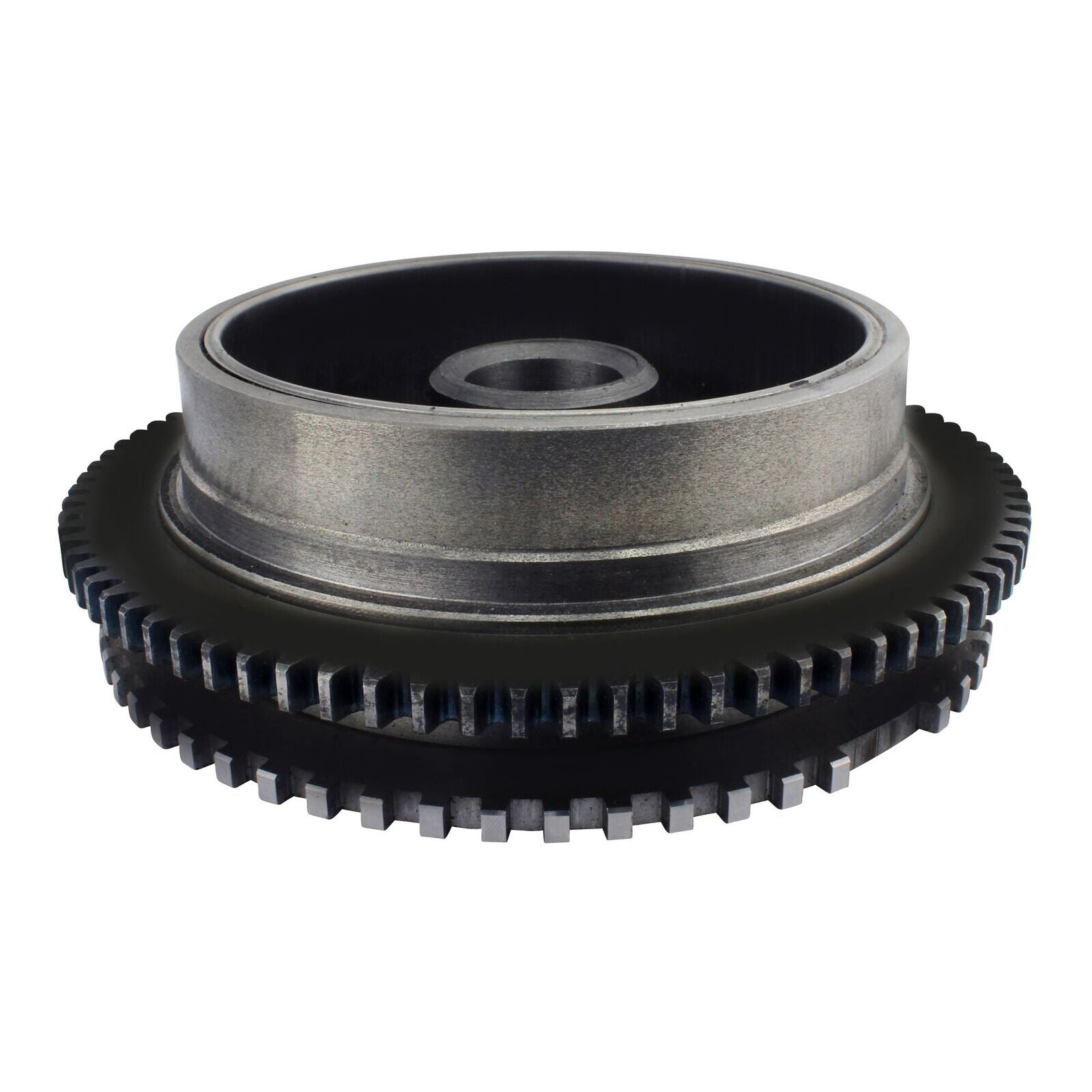

Specifications of Flywheel:
-
Dimensions:
- E xterior Diameter: 167 mm
- Interior Diameter: 109 mm
- Interior Diameter Center Housing: 27 mm
- Exterior Diameter Center Housing: 40 mm
- Thickness (exterior): 54 mm
- Thickness (interior): 43 mm
